BenchMixer XL Multi-Tube Vortexer, Includes 50 x 12mm tube rack, 115V

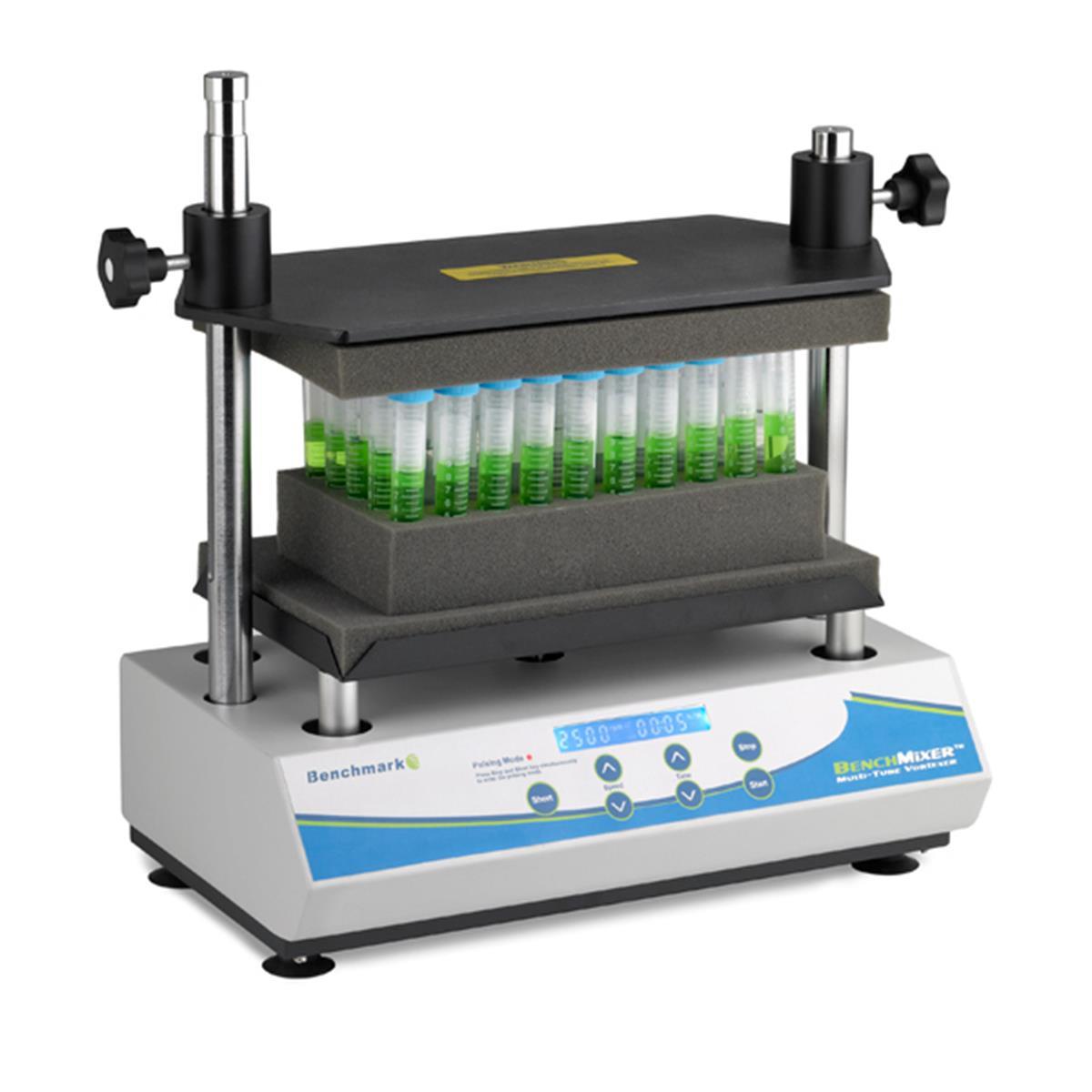

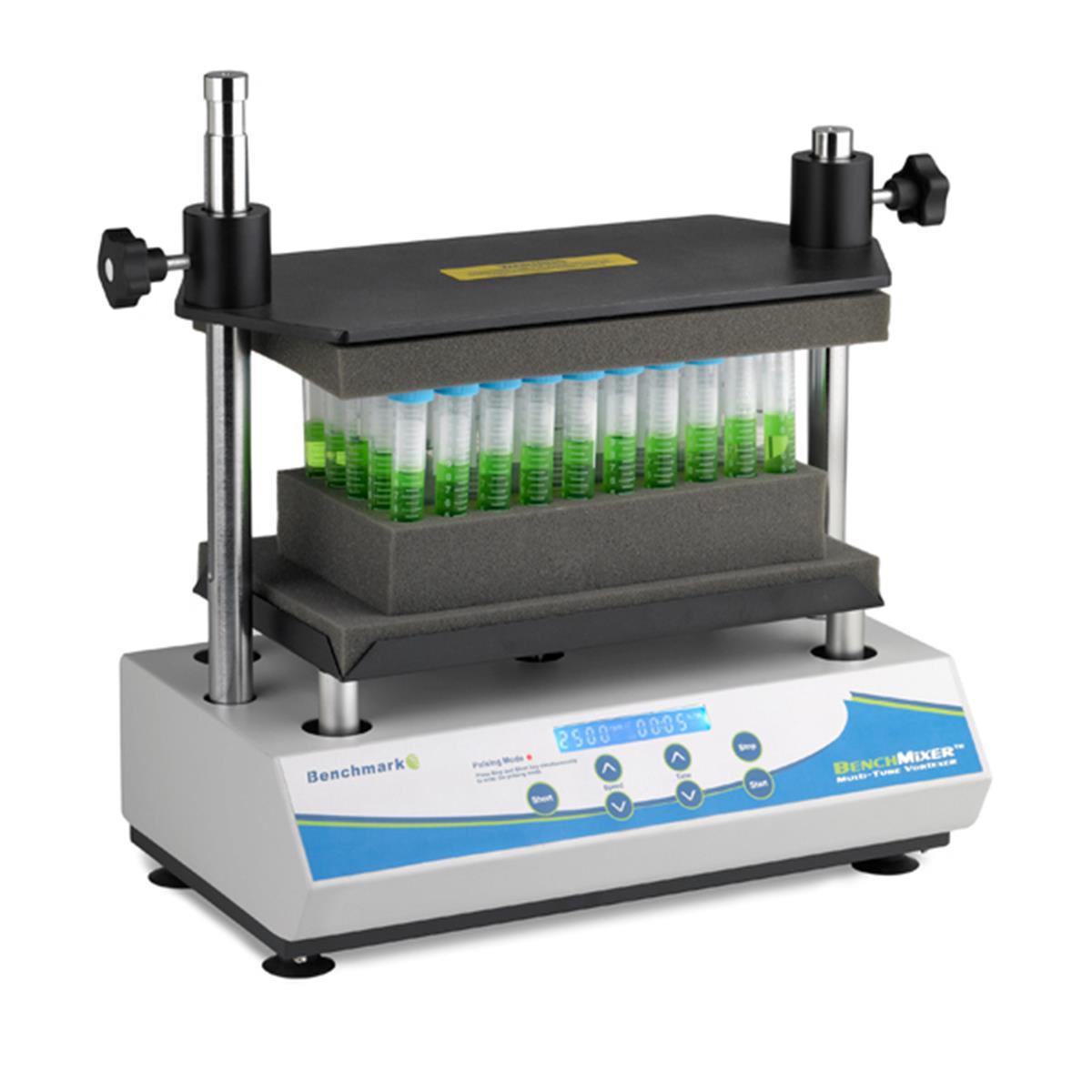

BENCHMIXER™ XL MULTI-TUBE VORTEXER
(INCLUDES 50X12MM TUBE RACK)
- Hands-free, high capacity vortexing
- Up to 2500rpm, a true vortex in every tube

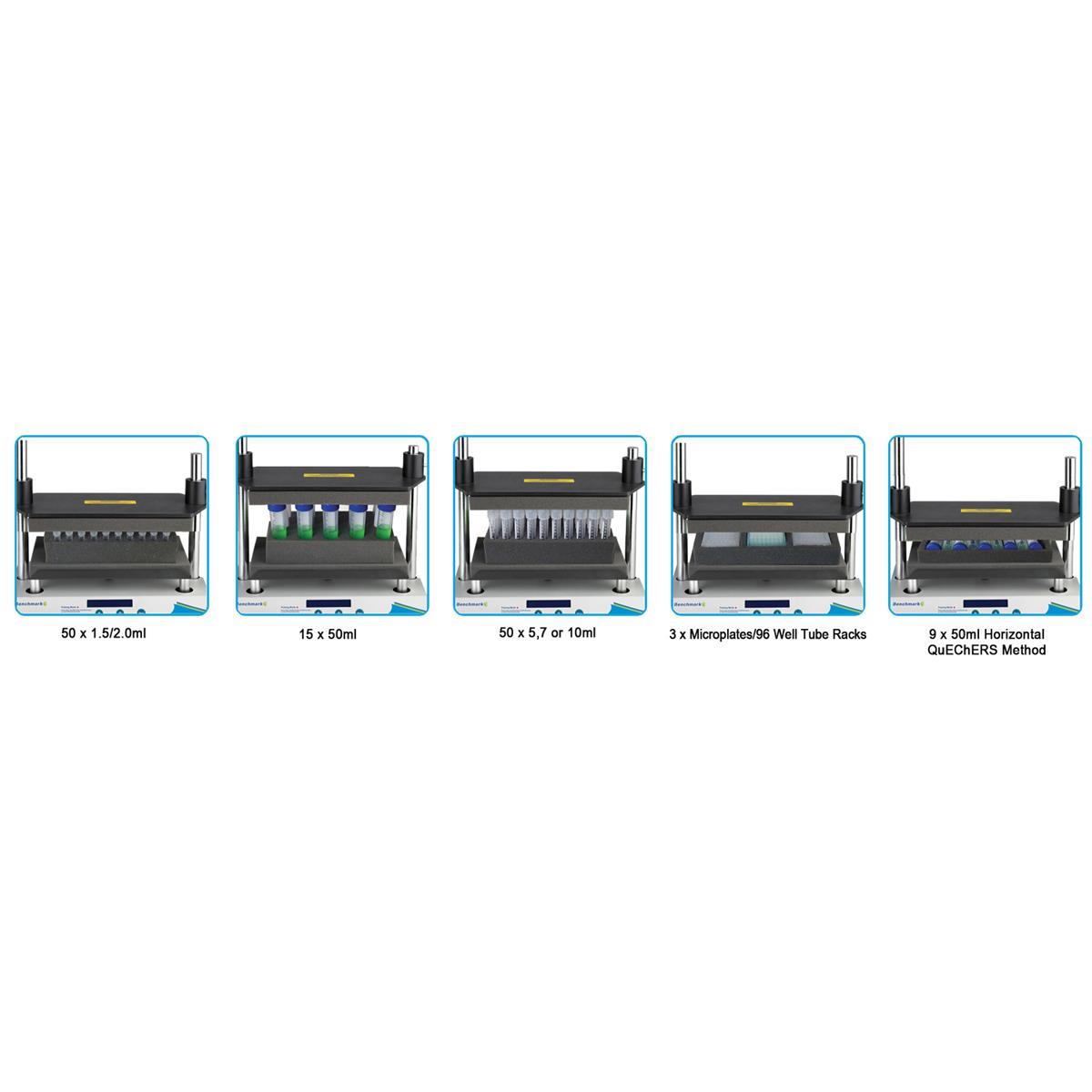

- Assortment of accessories for a variety of tubes, flasks & plates
- Pulsing program for interval mixing
- Fits almost any tube rack
Description

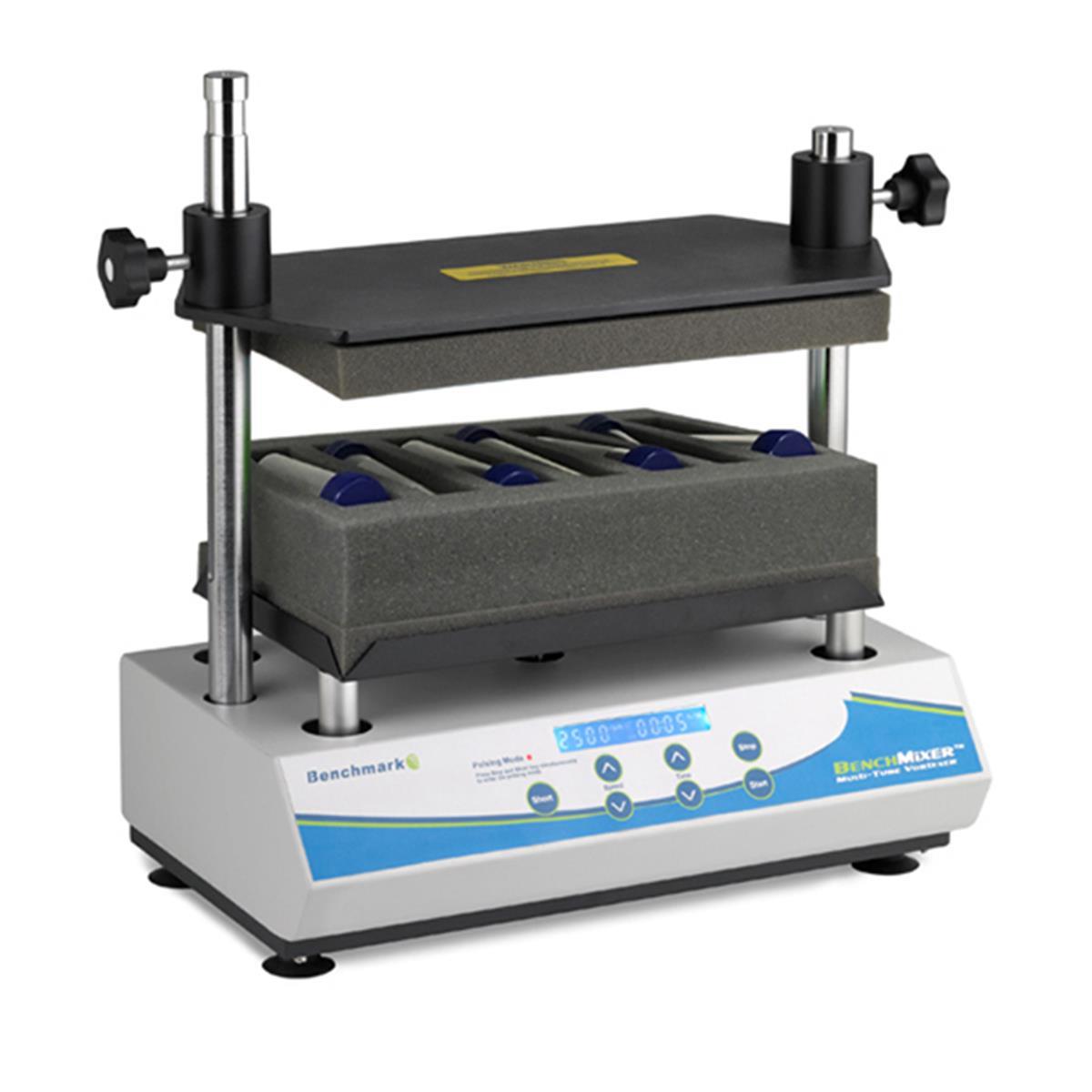

The BenchMixer™ XL is a heavy-duty vortex mixer designed to facilitate hands-free mixing in tubes, flasks, vials or cylinders. It is ideal for the QuEChERS pesticide analysis method and is instantly adaptable to an exceptionally broad range of vessels, racks and applications (horizontal or vertical). The precisely balanced drive system includes an oversized motor that delivers accurate, reproducible speeds up to 2500rpm with rattle-free operation and minimal vibration. The programmable pulsing function allows for time specific interval mixing, increasing agitation.

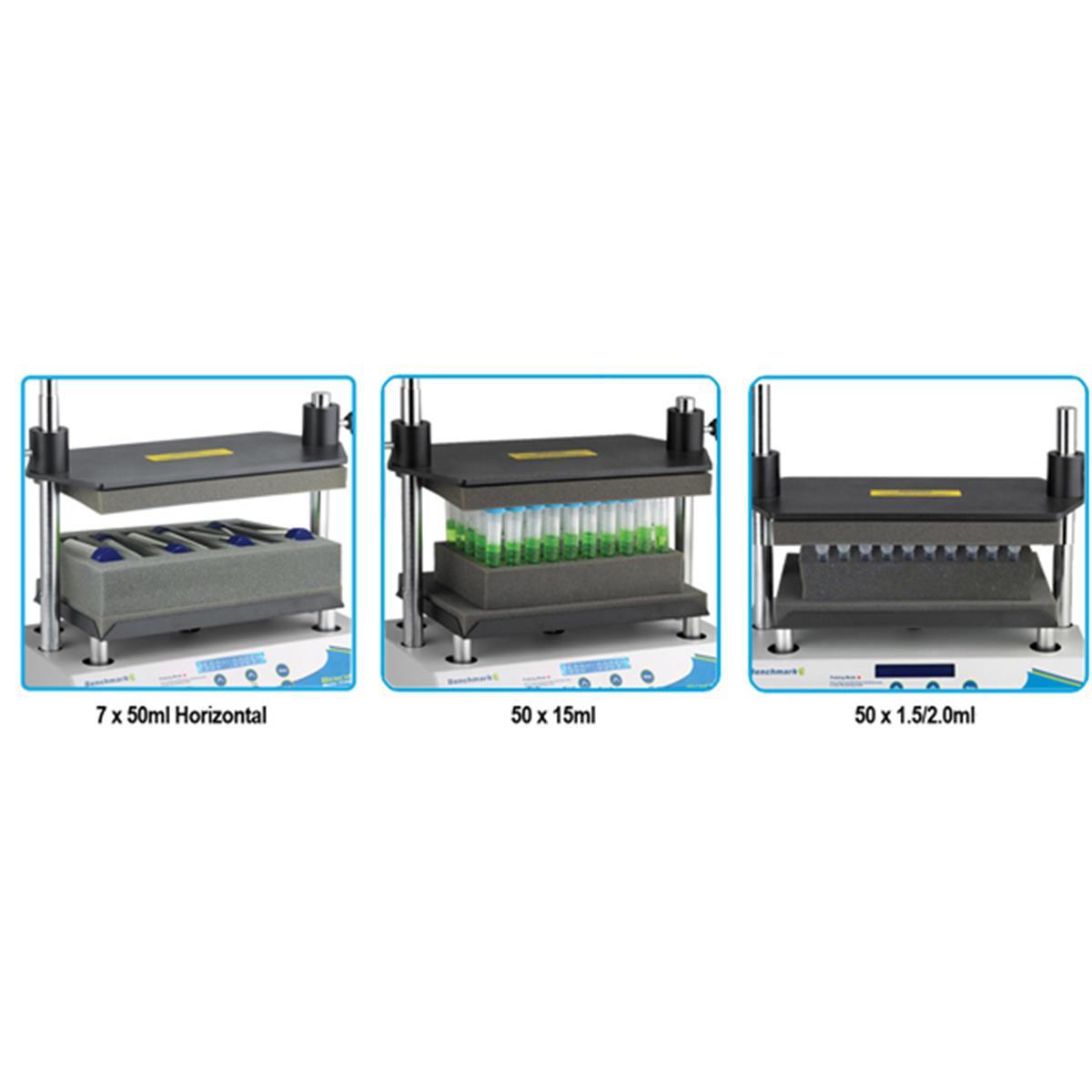

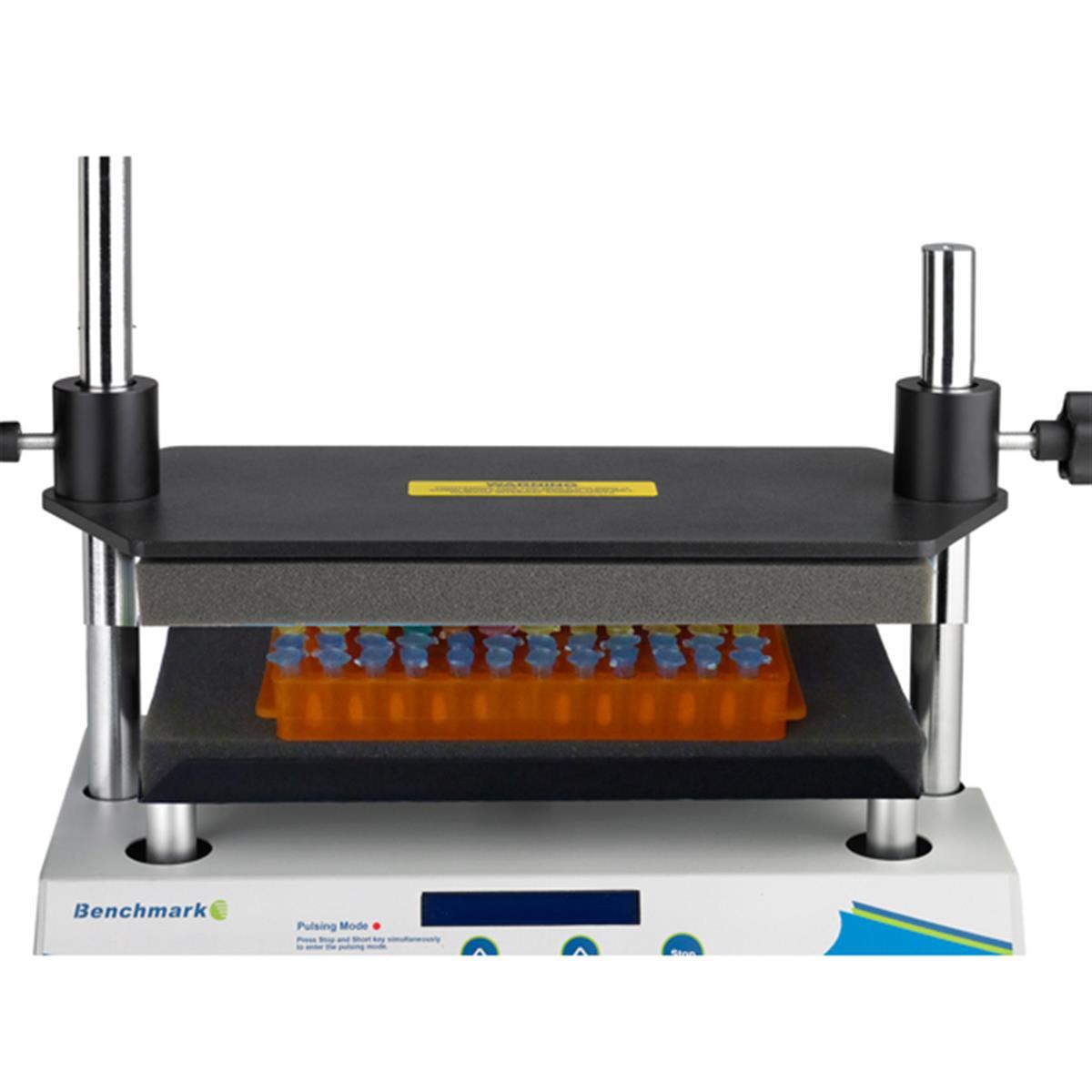

The 7×12 inch platform accommodates a wide variety of standard, pre-drilled tube racks. Additionally, BenchMixer XL can easily be adapted to almost any type of vessel commonly found in the laboratory (contact us for details).
Using the BenchMixer XL is easy; after loading the sample rack and tightening the locking knobs, select the desired speed and run time on the large digital control panel. Then, simply press “Start” and the BenchMixer XL will perform unattended mixing for up to 100 hours.
BenchMixer XL’s large capacity and adaptability make it an ideal choice for the medium to high throughput laboratory.
Specifications
| Speed Range | 500 - 2500 rpm |
| Timer | 1 min. to 99 hr. 59 min. |
| Orbit | 3.6mm |
| Dimensions (in) | 15 x 9.2 x 16.5 |
| Dimensions (cm) | 38.5 x 23.5 x 42 |
| Platform Dims | 12 x 7 in. / 30 x 17.8 cm |
| Weight | 29lbs (13kg) |
| Electrical | 100 to 240V 50-60Hz; 60W |
| Warranty | 2 Years |
Order Information
| Cat No. | Description | Link |
| BM-BV1010 | BenchMixer XL Multi-Tube Vortexer, Includes 50 x 12mm tube rack, 115V |  |
| BM-BV1010-E | BenchMixer XL Multi-Tube Vortexer, Includes 50 x 12mm tube rack, 230V | |
For optional accessories, visit the "BM-BV1010-00" product page
