NSF certified Class II A2 biosafety cabinet model(BSC-6FA2-NA)
Product#: DCBio-BSC-6FA2-NA
$10,840.00
Availability:
Ships in 24 hours
NSF certified Class II A2 biosafety cabinet model(BSC-6FA2-NA)
Cat. No.: DCBio-BSC-6FA2-NA

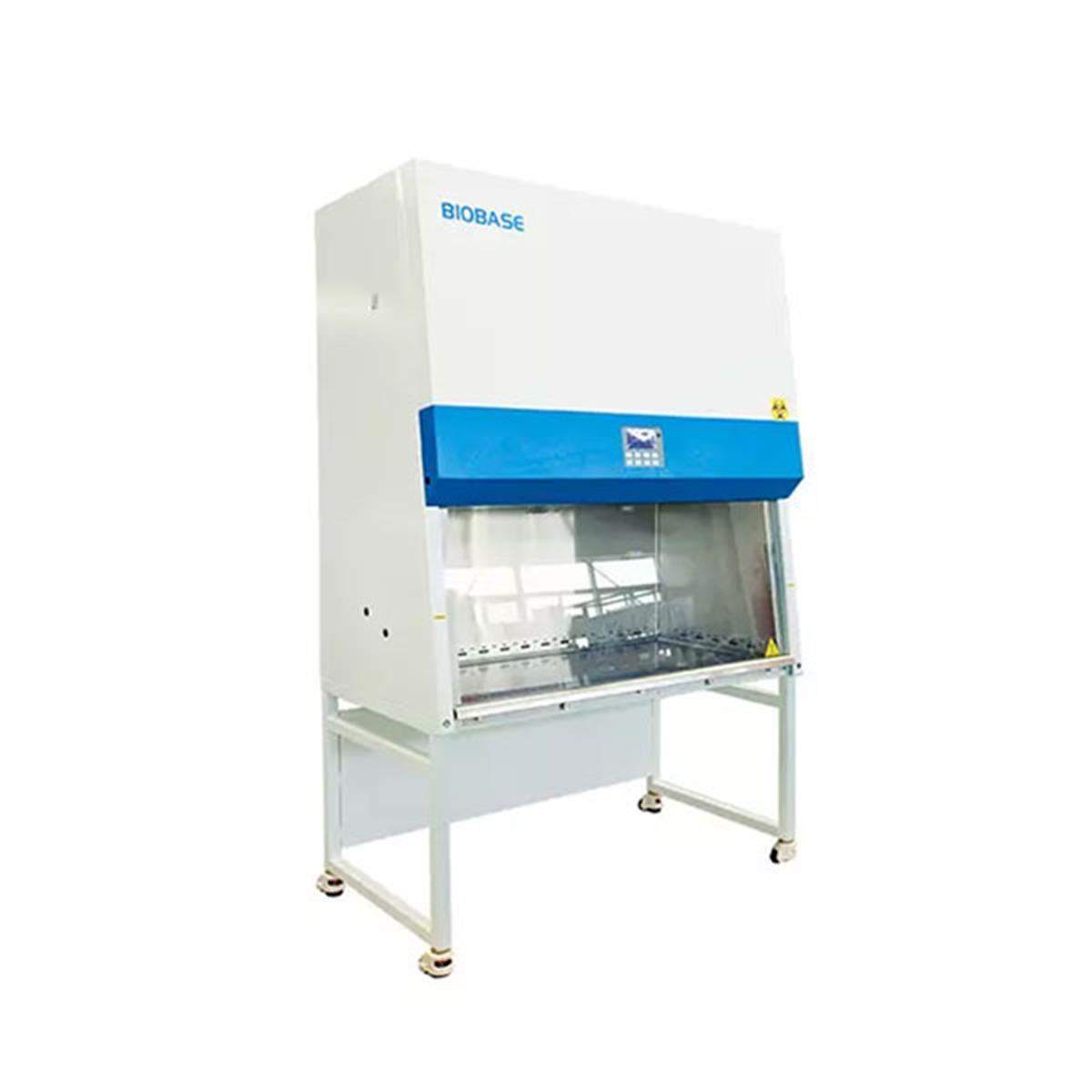

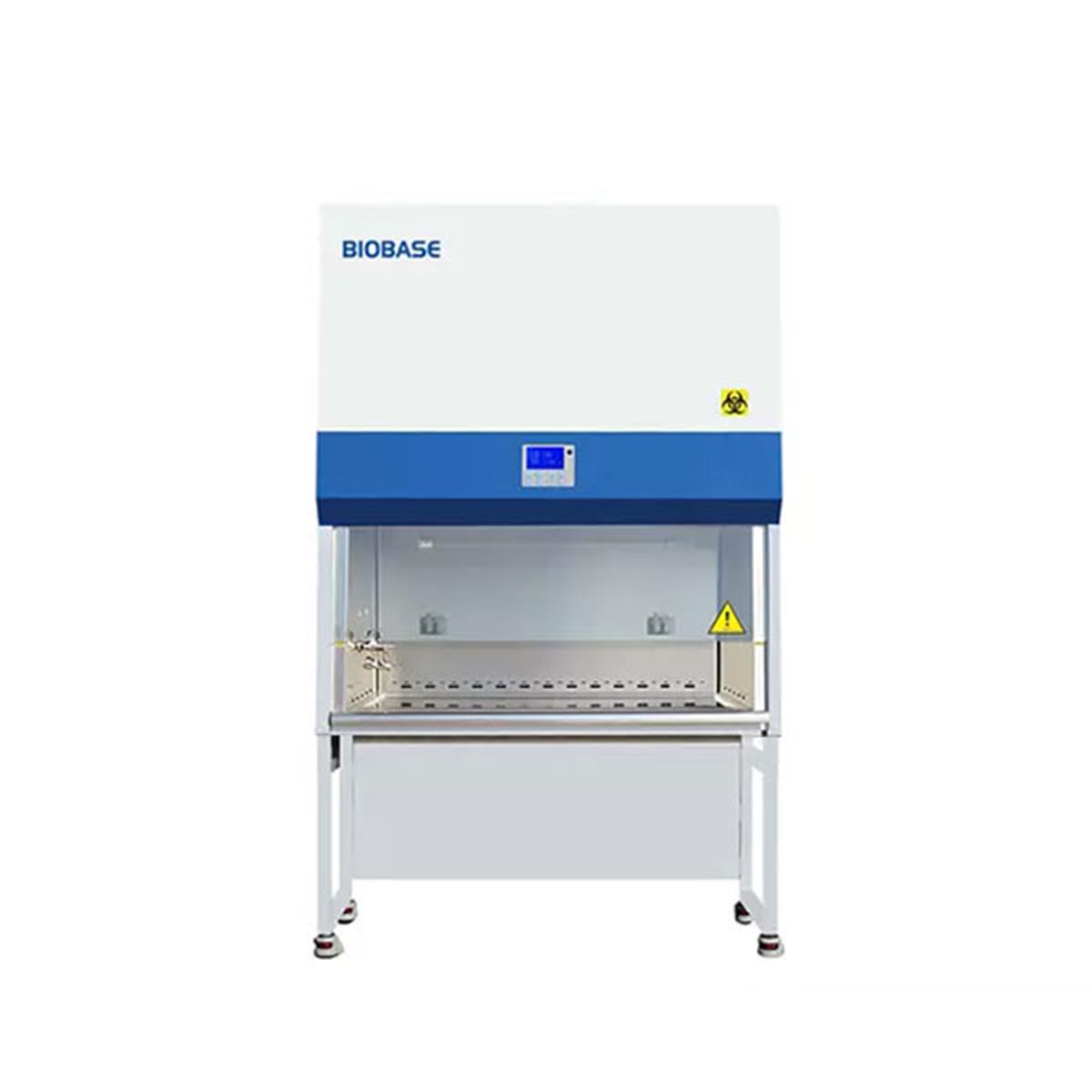

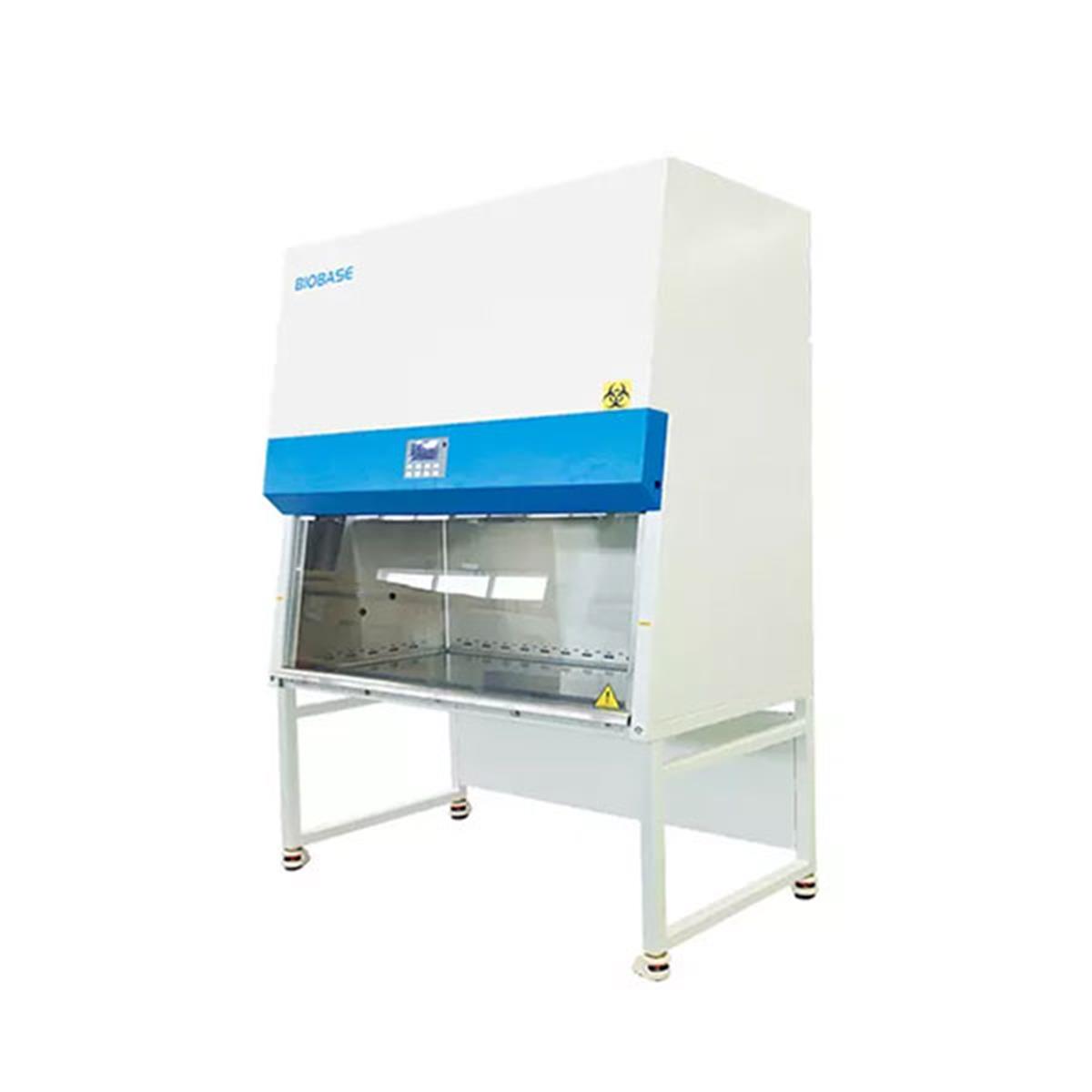

NSF Certified Class II A2 Biological Safety Cabinet
Introduction:
The NSF Certified Class II Biosafety Cabinet is a top-tier laboratory safety enclosure designed to provide maximum protection for operators, samples, and the environment when working with moderate-risk biological agents.
The NSF Certified Class II Biosafety Cabinet is a top-tier laboratory safety enclosure designed to provide maximum protection for operators, samples, and the environment when working with moderate-risk biological agents.
Features: 1. Motorized front window.

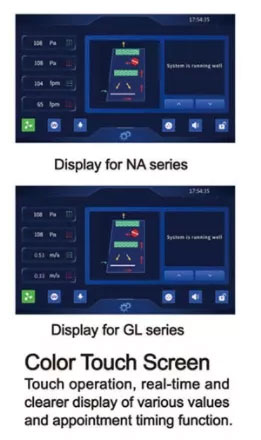

2. 7-inch large touch color display: touch operation, real-time and clearer display of various values of the safety cabinet, dynamic air flow pattern diagram, fault alarm sound and light prompt. 3. The power-on password can be set to prevent mis-operation by irrelevant personnel. 4. EC Fan, automatically adjust the wind speed. 5. With power-off memory function, the state before power-of will be restored after power-on and there will be visual prompts and alarms. 6. The integrated design of the operation area makes it easy to disassemble and clean. 7. The cabinet is separated from the base. The height of the adjustable base can be customized 8. Interlocking function: UV lamp and front window; UV lamp and fan; fan and front window. 9. It has the function of appointment timing, which can automatically set the time of starting and shutting down the safety cabinet and the running time of ultraviolet lamps, fan and sockets. 10. The front window closes the trigger signal, so that the sterlization and disinfection function of the ultraviolet lamp is normally turned on. 11. The one-piece hand resting surface has a larger contact area with the arm and is more comfortable.air speed adjustable with filter block. |
 |
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
Technical Parameters:
| Model | BSC-4FA2 ( inquiry, Please ) | BSC-3FA2-GL ( inquiry, Please ) | BSC-4FA2-GL ( inquiry, Please ) | BSC-6FA2-GL ( inquiry, Please ) | |
| BSC-3FA2-NA ( inquiry, Please) | BSC-4FA2-NA ( inquiry, Please ) | BSC-6FA2-NA | |||
| External Size | 1383*775*2220mm | 1087*775*2220mm | 1383*775*2220mm | 1873*775*2240mm | |
| (W*D*H)mm | |||||
| Internal Size | 1210*600*660mm | 910*600*660mm | 1210*600*660mm | 1700*600*660mm | |
| (W*D*H)mm | |||||
| Work Surface Height | 762mm | 762mm | 762mm | 782mm | |
| Max Opening | 470mm | ||||
| Tested Opening | Safety height 200mm (8") | Safety height 254mm (10") | |||
| Airflow Volume | Inflow | 462m³/h(272cfm) | 445m³/h(259cfm) | 587m³/h(346cfm) | 824m³/h(485cfm) |
| Down Flow | 65%: 863m³/h(507cfm) 863m³/h(507cfm) |
60%: 649m³/h(382cfm) | 60%: 863m³/h(507cfm) | 60%: 1212m³/h(713cfm) | |
| Exhaust | 35%: 462m³/h(272cfm) | 40%: 445m³/h(259cfm) | 40%: 587m³/h(346cfm) | 40%: 824m³/h(485cfm) | |
| Front Window | Motorized. Two-layer laminated toughened glass ≥5mm. Anti UV | ||||
| HEPA Filter | Two, 99.995% efficiency at 0.12μm, filter life indicator | ||||
| Filter Guard Type | Aluminum alloy frame,glass fiber fiter paper | ||||
| Noise | NSF 49≤67dB | ||||
| Illumination | ≥1000Lux | ||||
| Display | Color touch screen | ||||
| Waterproof Socket | Two, total consumption: ≤500W | ||||
| Tap | Water tap*1, Gas tap *1 | ||||
| Ground Resistance | ≤ 0.10Ω | ||||
| Power Supply | AC230V, 50/60Hz; AC115V, 60Hz, Full load Amps: 9A, BTU/Hr: 1689 | ||||
| Consumption | 500W | 400W | 500W | 700W | |
| Alarm | Abnormal airflow velocity; Filter replacement; Front window at unsafe height; High filter pressure alarm | ||||
| Motor | EC motor, 115V&230V acceptable, speed adjustable, high efficiency and low power consumption | ||||
| Material | Working area: 304 stainless steel | ||||
| Frame and decorative plate: cold-rolled steel with anti-bacteria power coating | |||||
| UV Lamp | 30W | 20W | 30W | 40W | |
| Germicidal UV lamp, Emission of 253.7 nanometers for most efficient decontamination | |||||
| Illuminating Lamp | 20W*2 | 10W*2 | 20W*2 | 23W*2 | |
| LED lamp | |||||

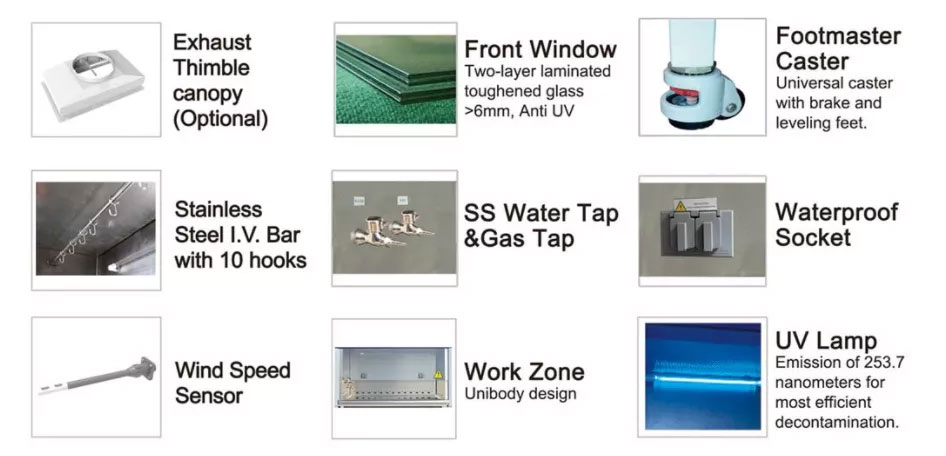

| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, SS water tap*1, SS gas tap*1, Drain valve | ||||
| Waterproof sockets*2, Stainless Steel IV Bar with 10 hooks, Remote control | |||||
| Optional Accessory | Armrest, Airflow tester, Formalin fumigation sterilizer, Infrared sterilizer, | ||||
| Electric height adjustable base stand | |||||
| Package Size | 1540*1080*1900 | 1240*1060*1900 | 1540*1080*1900 | 2020*1080*1900 | |
| (W*D*H)mm | |||||
| Gross Weight(kg) | 330 | 280 | 330 | 410 | |
