Analog Hotplate, 7.5 x 7.5 inch, 115V
BENCHMARK HOTPLATE
- Ceramic work surface, 7.1 x 7.1 in.
- Stir speed from 60 to 1500 rpm
- Temperature control up to 380°C

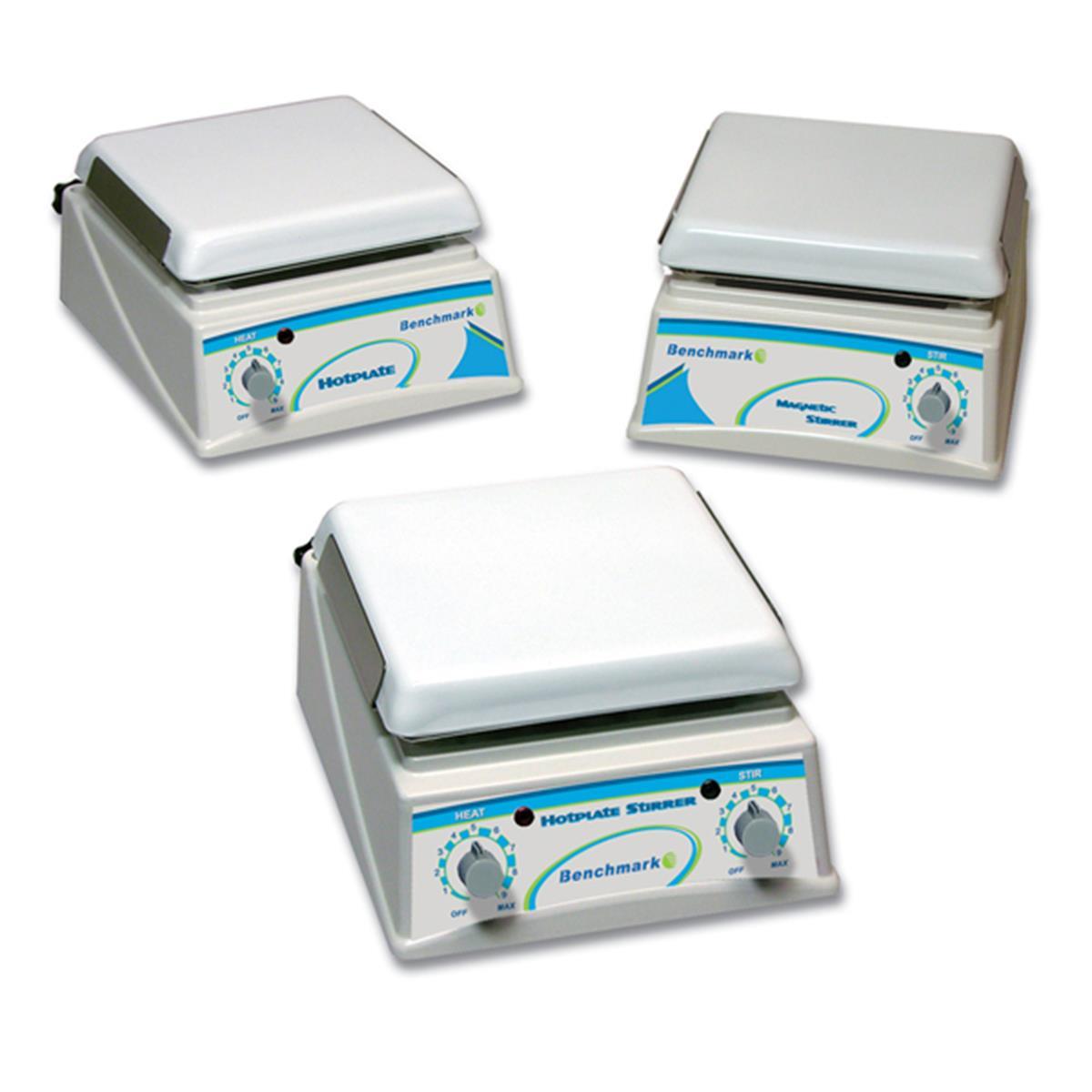

- Three models: heat-stir, heat only or stir only
Description
Benchmark hotplates, stirrers and hotplate-stirrers feature an exceptionally durable, chemical resistant white ceramic work surface. Their space-efficient design (8 X 9 in. footprint), makes them ideal for use on crowded benchtops and inside of bio-hoods.
Advanced microprocessor controls with convenient turn knobs allow quick, precise adjustment and maintenance of speed and temperature. Safety indicator LED’s on the front panel indicate when the heating and/or stirring functions have been activated. With a square 7.1 in work surface, all three models are compatible with a wide variety of popular sizes of borosilicate glass beakers, flasks, bottles and other vessels. The hotplate/magnetic stirrer model (H4000-HS) comes complete with a support rod for mounting thermometers and temperature probes.
Specifications
|
Temp. Range:
|
80 to 380°C
|
|
Speed Range:
|
60 to 1500 rpm
|
|
Platform Dimensions:
|
7.1 x 7.1 in./ 180 x 180 mm
|
|
Operating Temp. Range
|
+4 to +65°C
|
|
Dimensions: (w x d x h)
|
8 x 10 x 4.5 in./ 20 x 23 x 11.5 cm
|
|
Weight:
|
9 lbs (4kg)
|
|
Electrical:
|
120V 60Hz or 230V 50Hz; 500W
|
|
Warranty:
|
2 years
|
Order Information
| Cat No. | Description | Link |

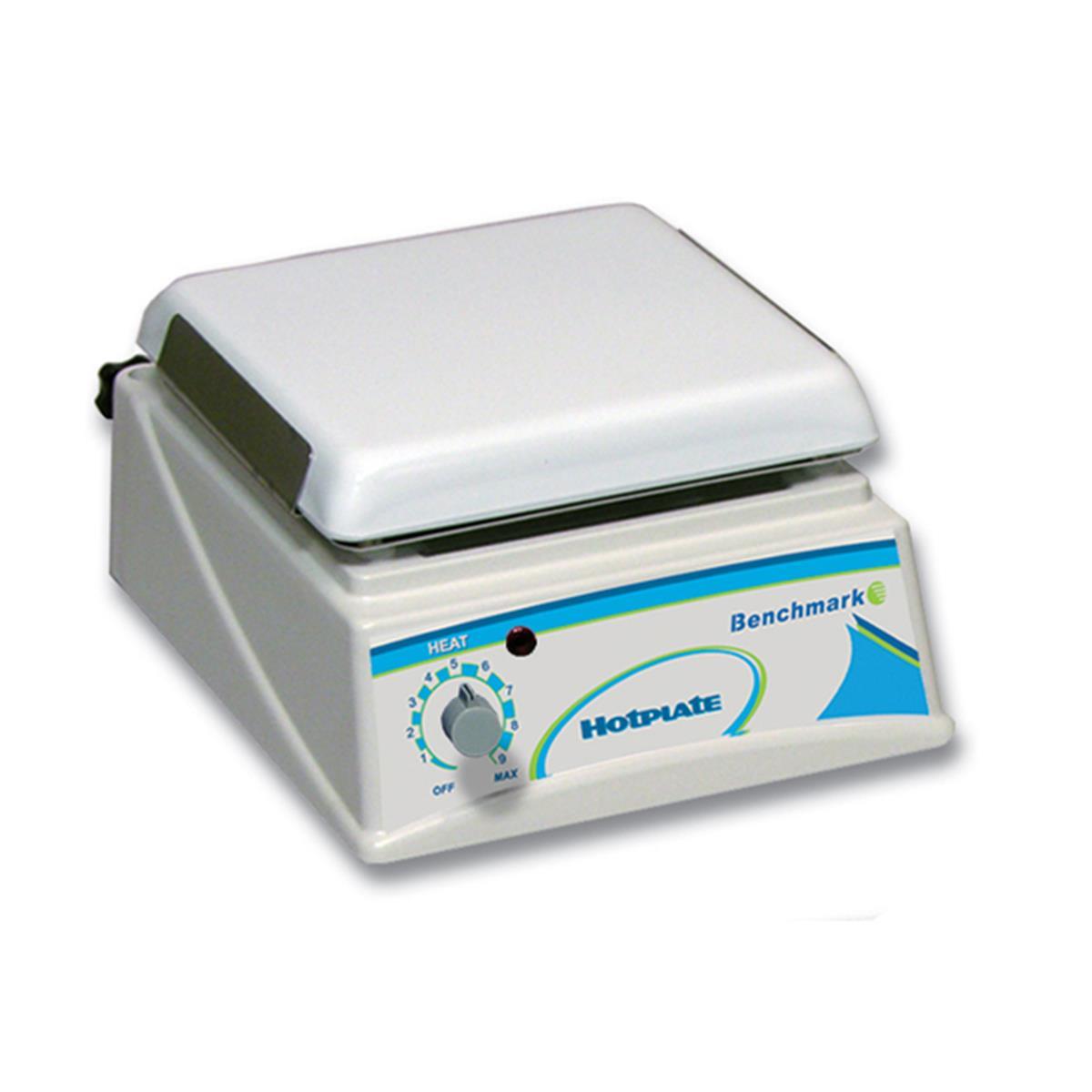

| BM-H4000-H | Analog Hotplate, 7.5 x 7.5 inch, 115V |  |
| BM-H4000-H-E | Analog Hotplate, 7.5 x 7.5 inch, 230V | |
| Model | Cat No. | Description | Link |
 |

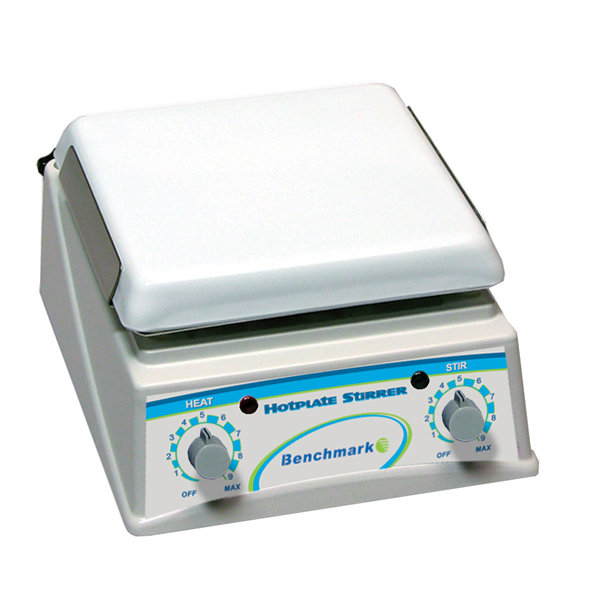

BM-H4000-HS | Analog Hotplate Magnetic Stirrer, 7.5 x 7.5 inch, 115V | |
| BM-H4000-HS-E | Analog Hotplate Magnetic Stirrer, 7.5 x 7.5 inch, 230V | |
|

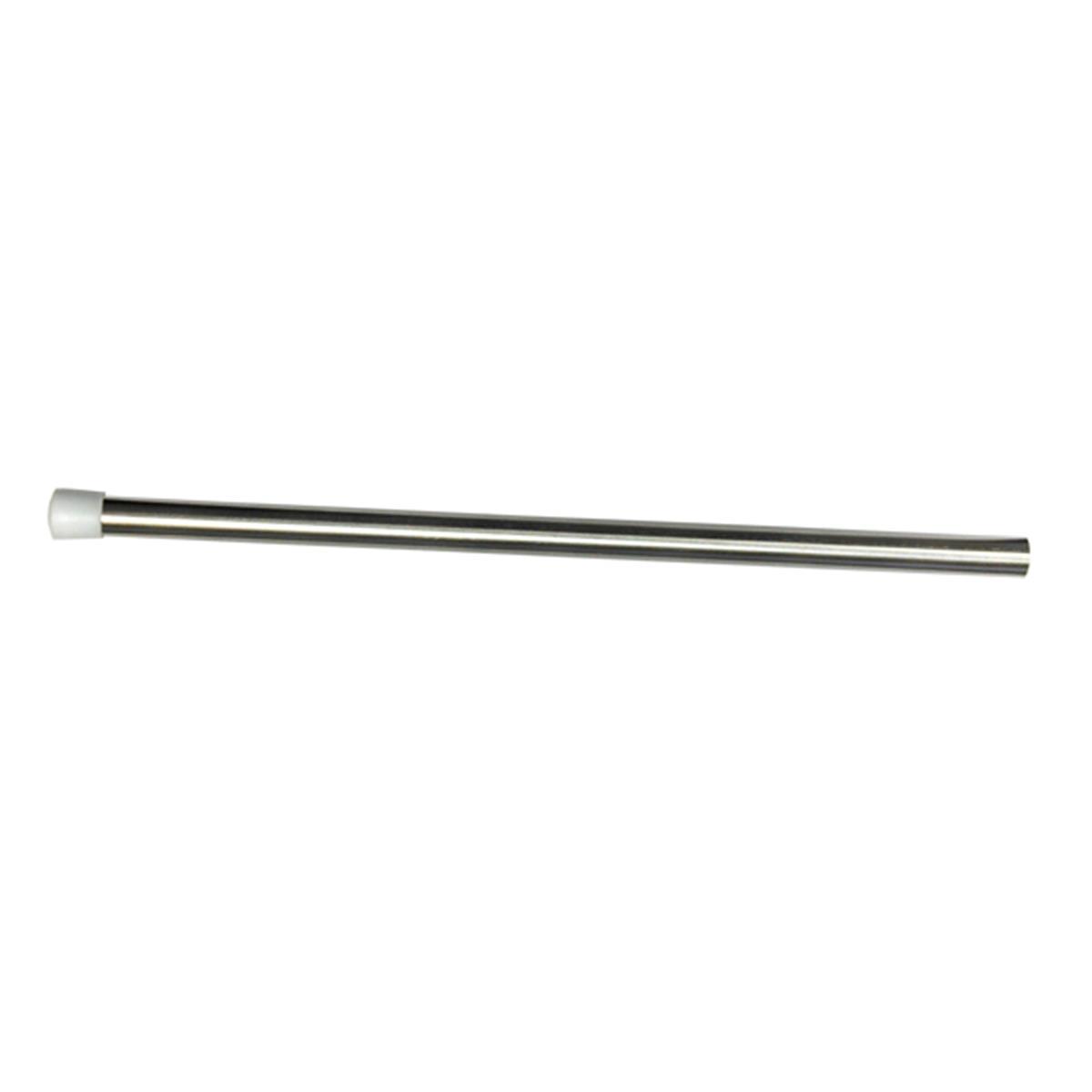

| BM-H4000-ROD | Rod for hotplate/stirrer (H4000 series) | |
|
 |

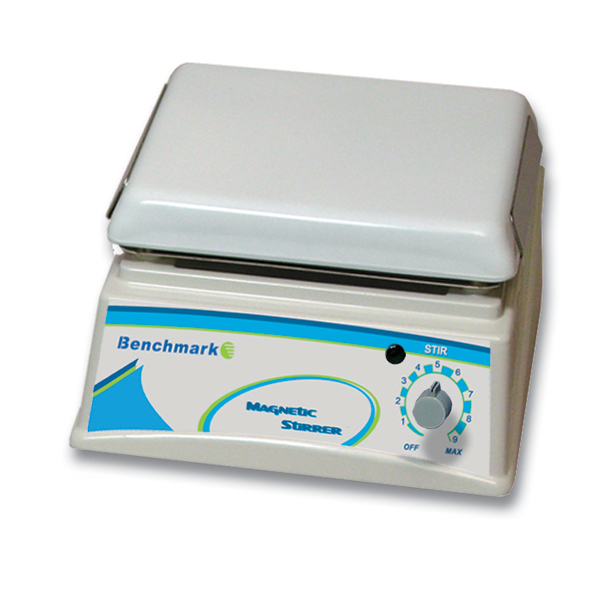

BM-H4000-S | Analog Magnetic Stirrer, 7.5 x 7.5 inch, 115V | |
| BM-H4000-S-E | Analog Magnetic Stirrer, 7.5 x 7.5 inch, 230V | |
