Product description

Chemistry analyzers are divided by the capacity of the sample sizes. DiagnoCine works with multiple manufacturers to provide a variety of chemical analyzers that are scaleable for clinical and laboratory uses. Multiple sample size capacities allow optimized work output, reliability, and readout performance.

Size of Device: The size of the device can be a benchtop, on a cart, or placed on the floor. These devices are used to measure the concentration of many chemicals of interest in the samples such as metabolites, electrolytes, proteins, drugs. The samples can be serum, plasma, urine, cerebrospinal fluid, and multiple types of bodily fluids from organisms.

Sample Handling: Slots are used to place samples of interest and the sample tray is loaded onto the device, loaded tray and sample orders/ tests are then programmed by manually using keypads or using a bar-code scanner.

Device Reagents: All reagents are stable at room temperature for the device and can be stored within the analyzer for routine use. For washing steps, water must be supplied continuously from time to time to maintain the device in an optimal condition. Once the test run is complete, data is displayed on the screen of the device and printed out. All outer parts are made to fit universally to desktop computers and printers.

Product ID	Name/Model	Key Parameter	External Size (W*D*H)	QA	Shop

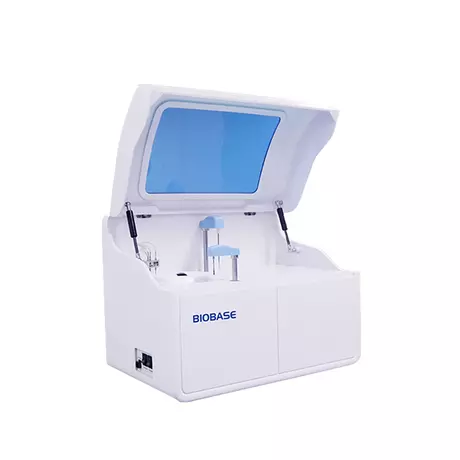

DCBio-BK-200mini	Auto Chemistry Analyzer (BK-200mini)	37 Sample positions.   28 Reagent positions.  48 Reaction cuvettes.  200 Tests per hour.  Probe anti-collision function,liquid level dectection function.	Two tray 625*425*460mm

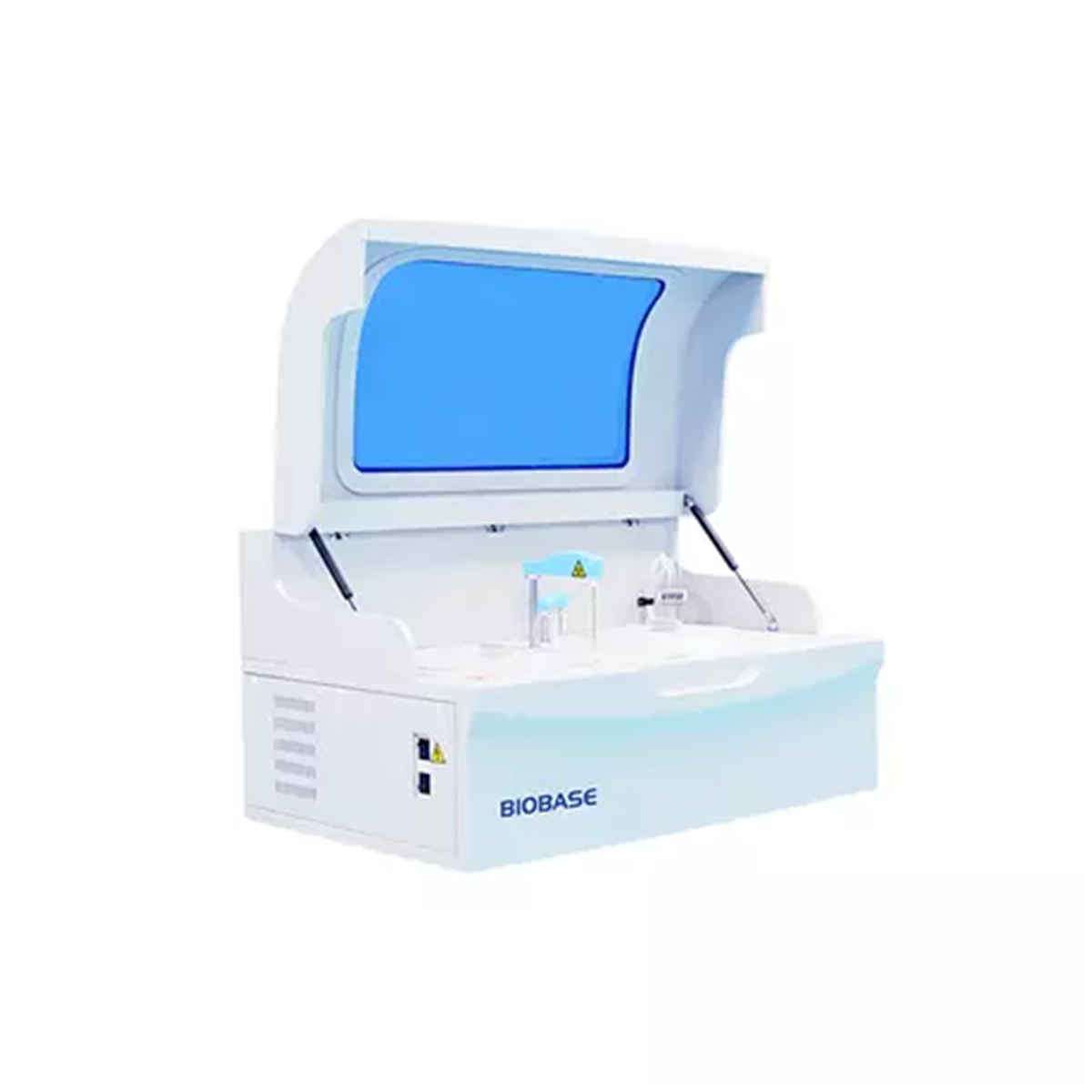

DCBio-BK280	Auto Chemistry Analyzer (BK-280)	49 Sample positions.   56 Reagent positions.  120 Reaction cuvettes.  200 Tests per hour.  Probe with anti-collision function,liquid level dectection function.	Two tray 950*600*515mm

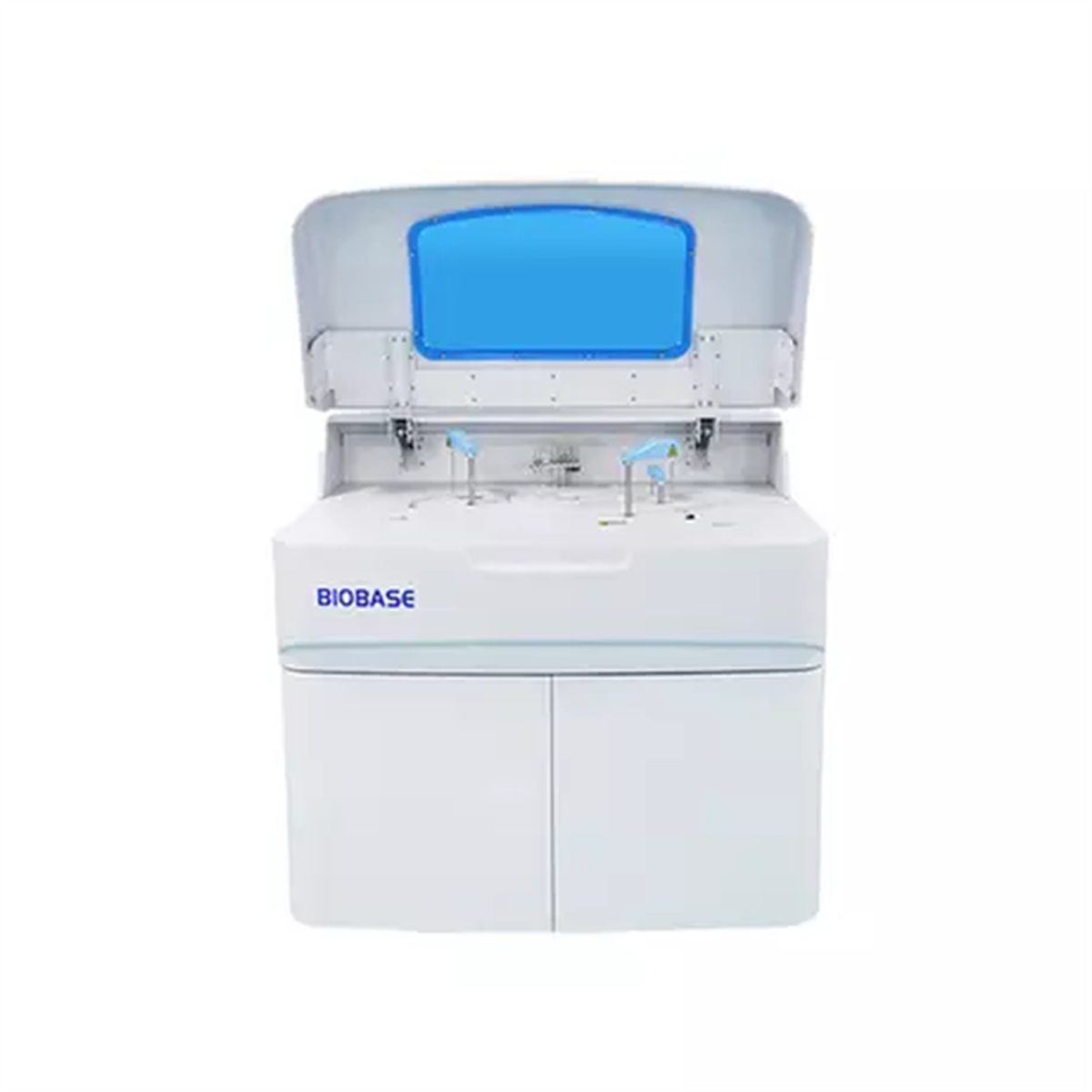

DCBio-BK400	Auto Chemistry Analyzer (BK-400)	400 tests per hour.  90 Reagent positions.  120 Reaction cuvettes.  Built-in sample barcode system optional.  60 Sample positions(90 sample positions optional).  Probe with anti-collision function, liquid level detection function.	Auto washing system 1170*775*1145mm

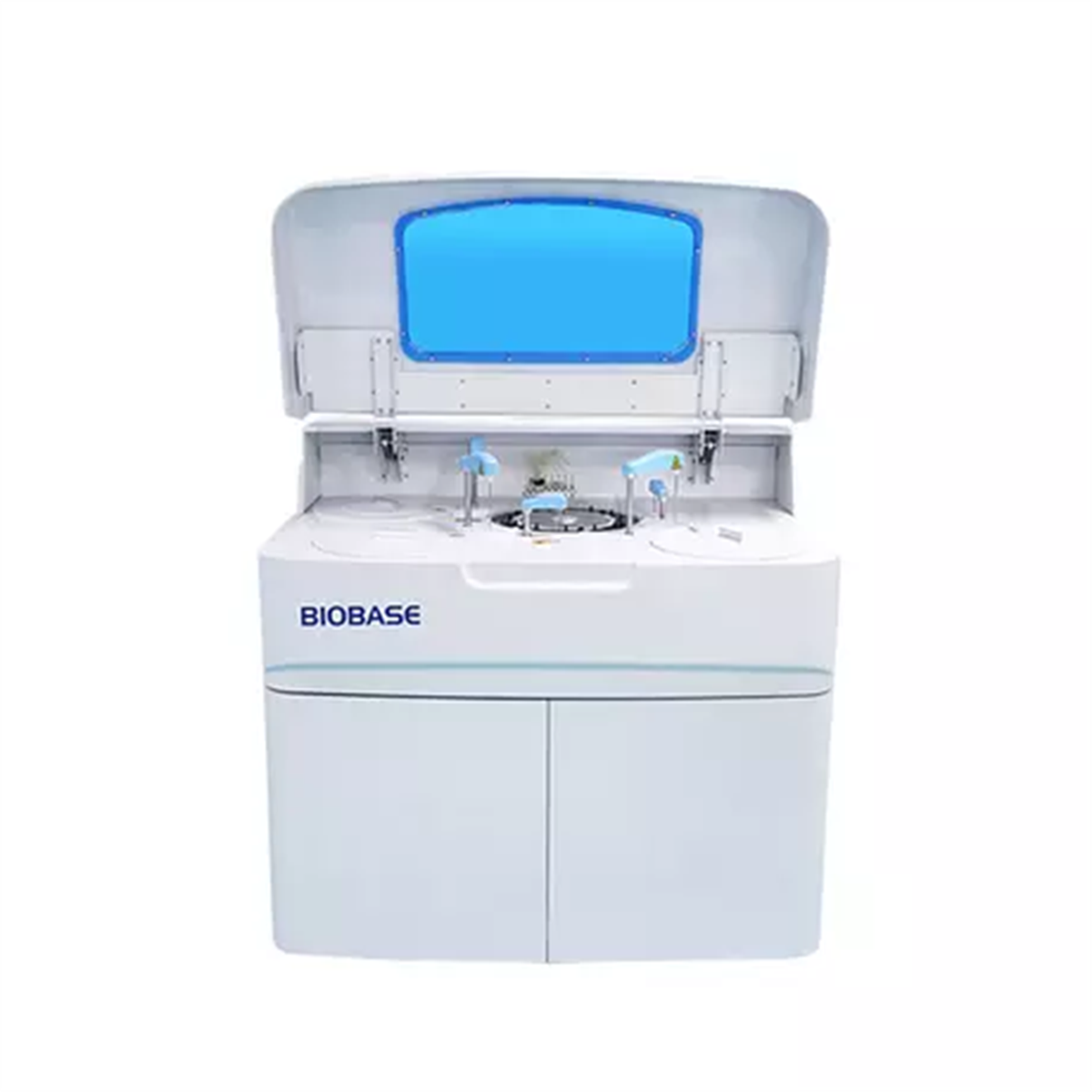

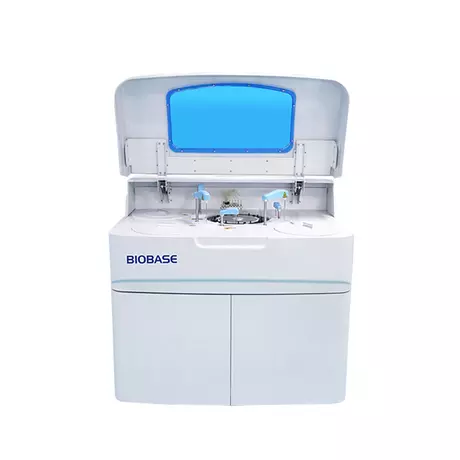

DCBio-BK600	Auto Chemistry Analyzer (BK-600)	600 Tests per hour.   120 Reaction cuvettes.  180 Refrigerated reagent positions.  Built-insample barcode system optional.  90 Sample positions(120 sample positions optional). Probe with anti-collision function, liquid level detection function.	Auto washing system 1170*775*1145mm

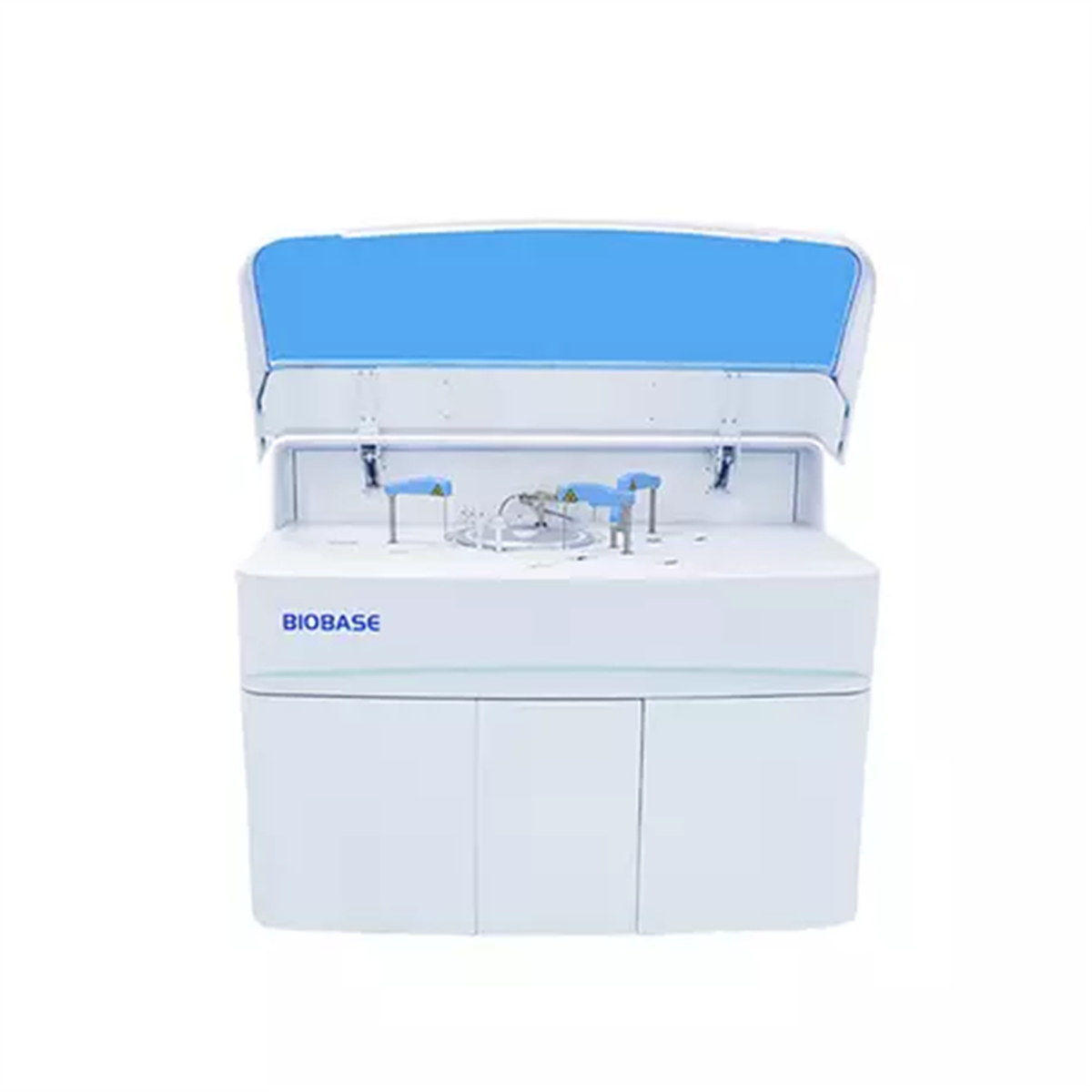

DCBio-BK1200	Auto Chemistry Analyzer (BK-1200)	150 Sample positions.  160 Reaction cuvettes.  180 Refrigerated reagent positions.  Optical filter/fiber bragg grating selectable.  800 Tests per hour 1200 Tests with ISE module.  Built-in sample barcode system optional.  Probe with anti-collision function, liquid level detection function.	800 Tests per hour 1360*795*1155mm
