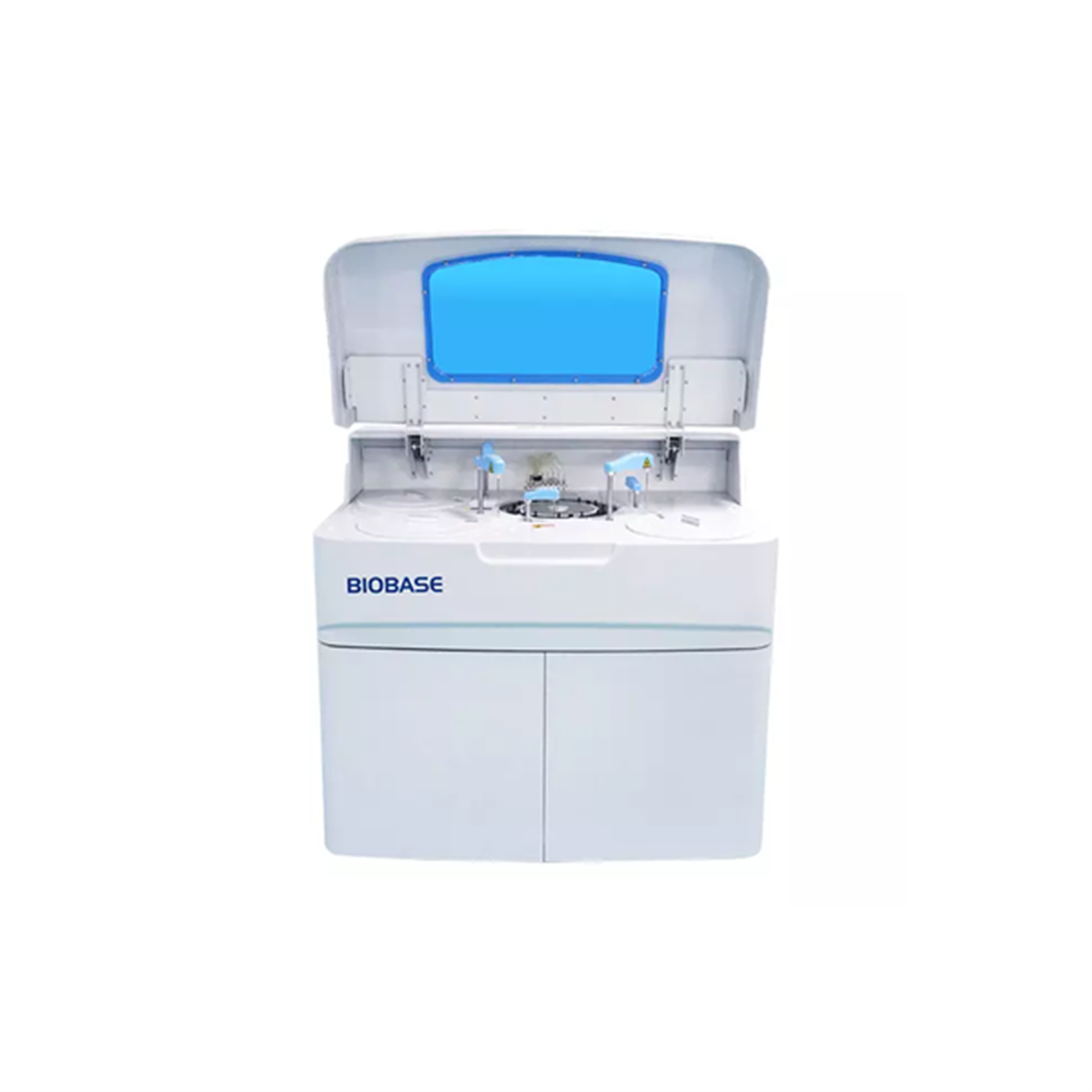

Auto Chemistry Analyzer (BK-600)
Auto Chemistry Analyzer (BK-600)
Cat. No. DCBio-BK-600
Features
- 600 Tests per hour.
- 120 Reaction cuvettes.
- 180 Refrigerated reagent positions.
- Built-insample barcode system optional.
- 90 Sample positions(120 sample positions optional).
- Probe with anti-collision function, liquid level detection function.
Model:
|
Model |
DCBio-BK-600 |
|
|
Overall Performance |
Throughput |
600Tests/hour |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certification |
CE, FDA, ISO9001, ISO13485 |
|
|
Sample & Reagent System |
Sample Positions |
90 sample positions, built-in barcode system available |
|
Reagent Positions |
180 refrigerated reagent positions (R1:90 & R2:90) |
|
|
Sample Volume |
1~70μl |
|
|
Reagent Volume |
10~350μl |
|
|
Probe |
Teflon coating, with anti-colision function, liquid level detection function |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
2~8℃ |
|
|
Reaction System |
Temperature Control |
37±0.1℃, real-time monitoring |
|
Cuvettes |
120reusable cuvettes, optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
12V/30W halogen lamp |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm |
|
|
Absorbance |
0~3.5Abs |
|
|
Calibration & QC |
Calibration |
1-point, 2-point and multipoint, factor, Spline Logit-4P, Logit-5P, Polygon |
|
Quality Control |
Inserting quality control at random |
|
|
Data Management |
Software |
Windows 7/8/10 |
|
LIS System |
Available |
|
|
Interface |
TCP/IP network interface |
|
|
Printer |
External, multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%,50/60Hz, 110V±10%,60Hz, 800VA |
|
Temperature |
15～30℃ |
|
|
Water Consumption |
Deionized water:20L/H |
|
|
Humidity |
40%~85% |
|
|
Size & Weight |
External Size (W*D*H) |
1170*775*1145mm |
|
Net Weight |
216kg |
|
|
Package Size (W*D*H) |
1358*938*1387mm |
|
|
Gross Weight |
281kg |
|
|
Accessory Package Size |
550*430*860mm |
|
|
Accessory Gross Weight |
20kg |
|
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
