Automatic Nucleic Acid Extraction System (BK-HS96)
Automatic Nucleic Acid Extraction System (BK-HS96)
Cat. No. DCBio-BK-HS96
Description
Features
- Display: 10.1 inch touch screen, easy to operate
- Accurate temperature control and rapid temperature rise, can be adopted to actively reduce to room temperature and store samples in a short time at low temperature.
- The module is integrated with shocking and heating, which can be mixed with shock while heating, saving extraction time.
- Equipped with ultraviolet disinfection lamp, HEPA high efficiency filter and safety door protection function, it can effectively prevent aerosol pollution.
Operation Process
Model:
|
Model |
DCBio-BK-HS96 |
|
Nucleic Acid Extraction Method |
Paramagnetic particle method |
|
Sample Capacity |
96-well |
|
Sample Volume |
20-1000ul |
|
Extraction Time |
11min-60min |

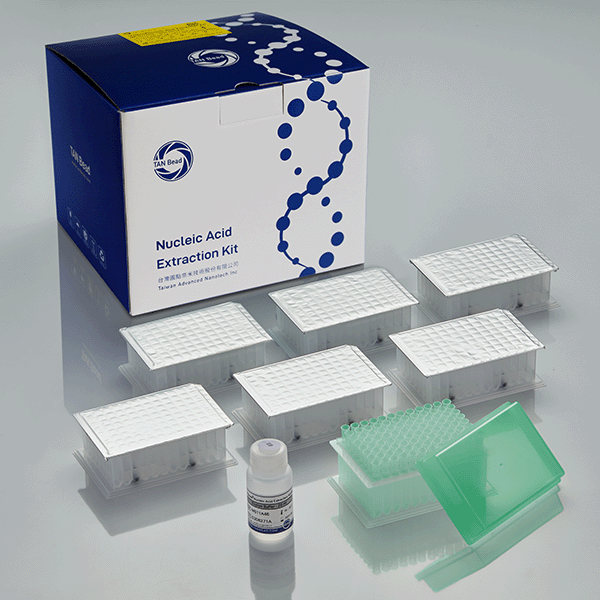

| Nucleic Acid Extraction Kit III (Magnetic beads) | click here >>> Go detailed Page "Nucleic Acid Extraction Kit III" |
|
Magnetic Bead Recovery |
≥98% |
|
Magnetic Flux of Bar |
≥4500Gs |
|
Operating Temperature |
RT-105℃ |
|
Shock Function |
Yes |
|
Temperature Accuracy |
0.1℃ |
|
Sample Protection Function |
Power on self-check, power off protection, high-temperature alarm, over-temperature |
|
Disinfection Method |
UV Light |
|
Safety Door Design |
The instrument is suspended when the safety door is opened |
|
Operating System |
Windows system |
|
Scanning |
Optional |
|
Storage |
>1000 |
|
Interface |
USB interface |
|
Power Supply |
AC100-240V 50Hz/60Hz |
|
Package Size(W*D*H) mm |
940*710*910mm |
|
Gross Weight(kg) |
110kg |
Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
