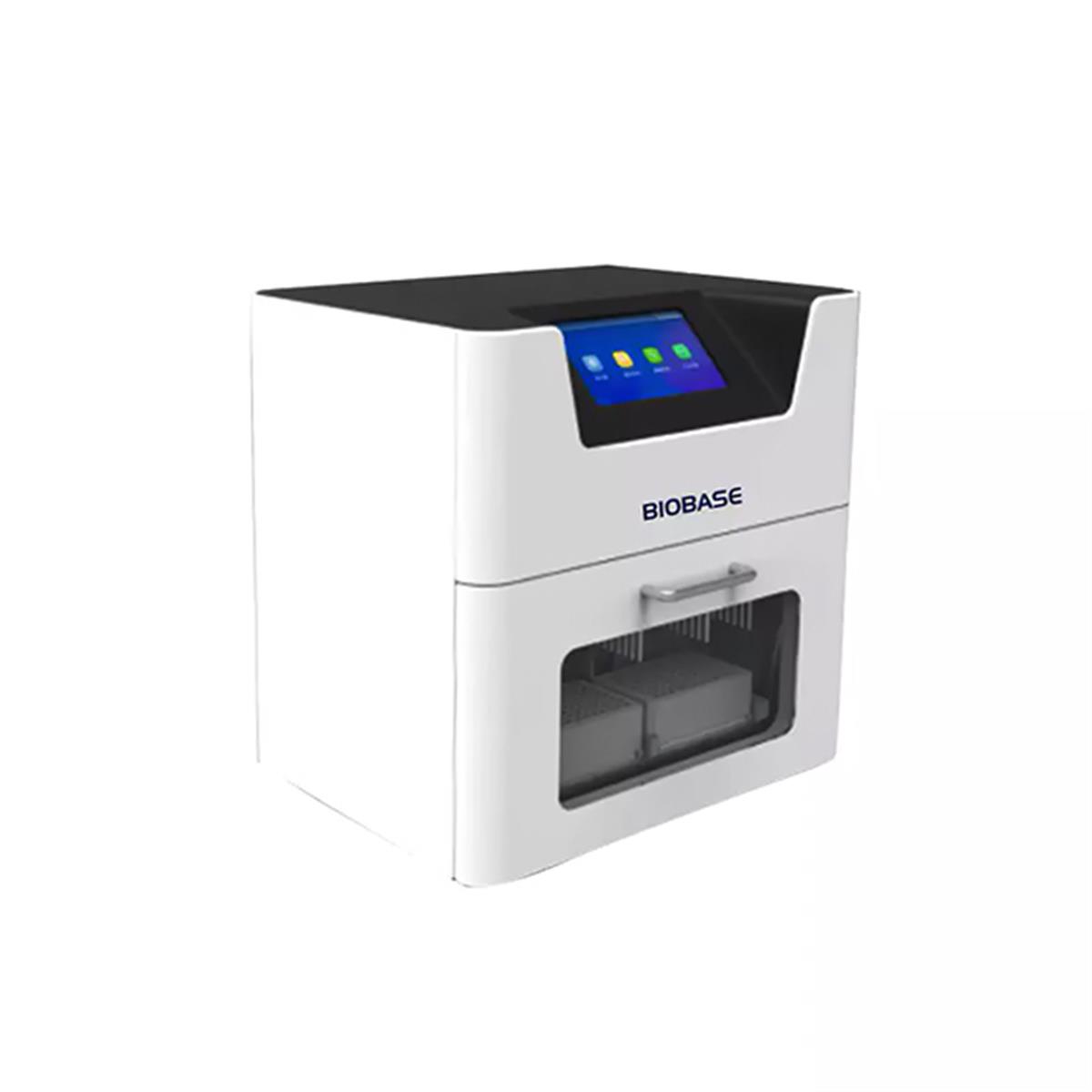

Nucleic Acid Extraction System (BNP32)

Product#: DCBio-BNP32

$14,999.00

Qty:

Availability:

Ships in 1-2 Weeks

Nucleic Acid Extraction System (BNP32)

Cat. No. DCBio-BNP32

Feature

7-inch touch screen, easy to use, fast response.
User-defined cracking and elution temperature.
UV disinfection fuction, time range 1min-24hour.
Automatic control system, no need connect to computer.
Free programming to meet the needs of different reagent.
Open system, fully automatic, stable results and good repeatability.
Extract rapidly 9-40 minutes , 32 samples can be extracted at the same time.

Call inquire your price

Operation Process

Models: DCBio-32PNB

Technical Parameter

Model	DCBio-BNP32	DCBio-BNP48
Sample Quantity	32	48
Processing Volume	60μL-1000μL
Sample Volume	20-500μL
Sample Throughput	1~-32	48
Magnetic Bead Recovery	>98%
Nucleic Acid Extraction Reagent	click here >>> Go detailed Page "Nucleic Acid Extraction Reagent"
Extracting the Difference Between Holes	CV≤3%
Heating Temperature	8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs
Oscillating Mixing	Low, medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume
Reagent Type	Magnetic bead open platform
Extraction Time	8~60min/round(depending on the reagent used)
Internal Program	48 groups	50000 groups
Program Management	Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved
Safety Door Design	After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after the safety door closed
Built-in Air Duct	Yes	Yes
Ultraviolet Irradiation	Yes
Packing Size(WDH)mm	580510700mm	700520750mm
GrossWeight(kg)	51kg	80kg

Note: This product weighs over 50 pounds and requires a liftgate truck for delivery. However, if you have a loading dock for delivery trucks, a liftgate truck may not be necessary. For more information, click here >>> go or refer to the FedEx website >>> go.
