iP-TEC Standard BOX-X13 (BOX only), 1 Piece
iP-TEC Standard BOX-X13
Cat. No. FNK-28463
Description
When Using Temperature Stabilizer-36,
100 hours or more (in enviloment temperature 25℃) keeping
35 hours (in enviloment temperature 5℃) keeping
Feature
iP-TEC STANDARD BOX is made of economic and useful foamed styrol. In 25degree, the vacuum case could maintain a constant temperature of 33-36 degree inside the case for up to 100 hours and or beyond. In 5degree, the vacuum case could maintain a constant temperature , the case for up to 35 hours.

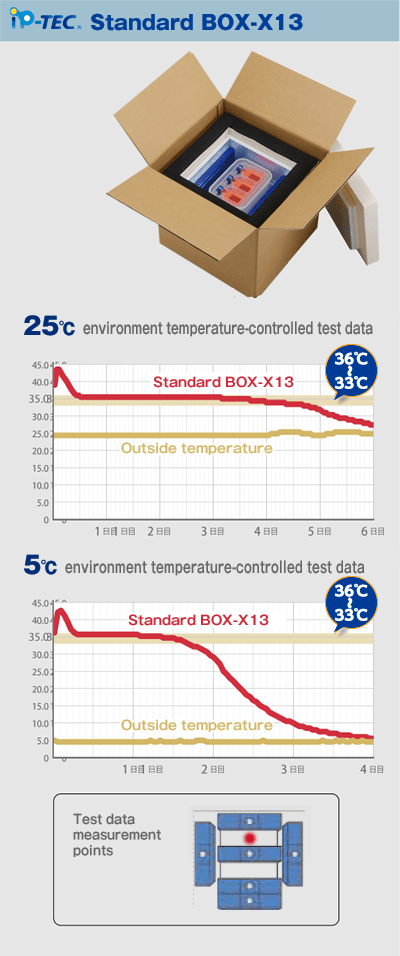

IP Tempetature Holding Test
After setting 6 pieces Temperature Stabilizer-36 into Premier BOX-V19 and Standard BOX-X13, we tested its ability of maintaining temperature inside flask that is set in a box under the fixed condition for environmental temperature at 25℃ and 5℃.
*Test has been started right after letting thermal storage medium melted at 45℃, in the actual use, please put it into the box after surface temperature is settled at 36℃.
| Product image | Product ID | Model | Link | Outer dimension(mm) | Inner dimension(mm) | Capacity of inside | Source material (inner) | Source material (coater) |
 |
FNK-28463 | BOX only |  |
W366 x D356 x H394 | W236 x D226 x H244 | 13 L | aluminum evaporation foamed polyethylene. | EPDM |
| FNK-28485 | Temperature Stabilizer-24 6pcs set | |
||||||
 |
FNK-28465 | Temperature Stabilizer-36 5pcs set | |
