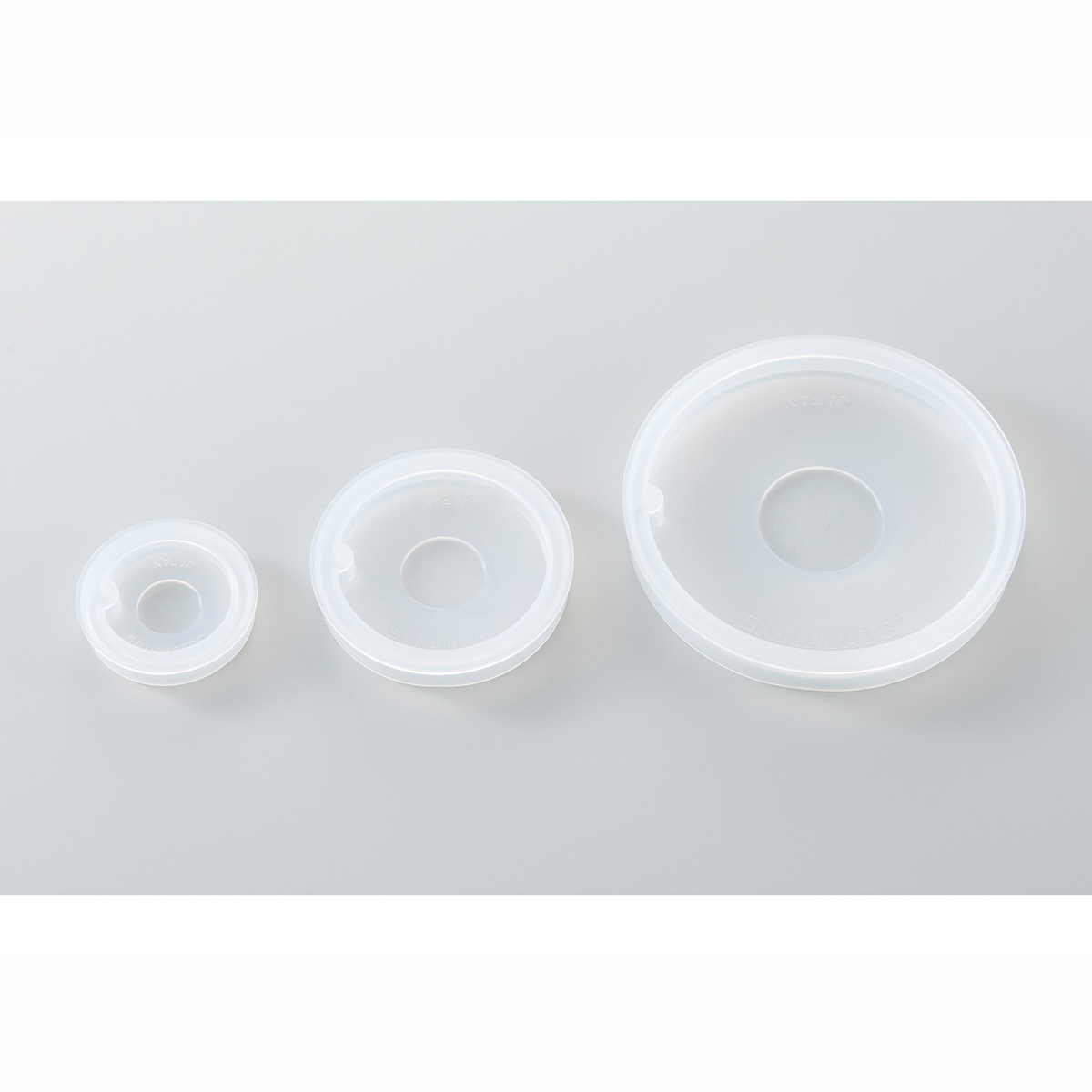

iP-TEC Dish Cover for φ35 dish, 10 Pieces

Product#: FNK-28505

$171.03

Qty:

Availability:

Ships in 1-2 Weeks

Description
Reviews (0)

iP-TEC Dish Cover

Cat No: FNK-28505

Description

Special cover is made from medical grade silicone rubber (United States Pharmacopoeia USP Class V1, ISO 10993-5 compliant).

Features

Open vessel Live Transportation Device
Using Medical Silicone Rubber without cytotoxic effect (United States Pharmacopoeia USP Class V1, ISO 10993-5 compliant)
We solve problems about self-adhesive film cover. This cover does not use adhesive, you do not have to worry touching risk culture medium. Possible to smooth open, we can avoid contamination risk also. Cover consists of 2 parts. thin part, necessary to ventilation, thick part, sealing vessel. Possible to seal smoothly at vessel opening with ultra low hardness. Cover enables less quantity of culture medium with its shape, prevents flapping. Also prevents cell and biomedical tissue at the time of transportation.

*Have finished sterilzation. *Package separately. *It can be used alcohol. *It can be used autoalave.

Product ID		Size(mm)	Material	Quantity	Link
FNK-28504	suitable for φ35	dia.42.3 x 8H	Medical grade silicone	1 pc
FNK-28505	suitable for φ35	dia.42.3 x 8H		10 pc
FNK-28506	suitable for φ60	dia.62 x 9H		1 pc
FNK-28507	suitable for φ60	dia.62 x 9H		10 pc
FNK-28508	suitable for φ90	dia.95.5 x 11H		1 pc
FNK-28509	suitable for φ90	dia.95.5 x 11H		10 pc

What is live transport?

This method enables the “ready-to-use” transport of iPS cells and other cells without freezing them. When cells are frozen during transport, transport can be made in a stable condition; however, there is a risk that cells may be damaged or destroyed in the return to an active state, as well as loss of time, labor costs and costs incurred for chemical agents.
Live transport provides a positive outlook in solving such problems.

Live Transport device for well plate and dish

Using Medical Silicone Rubber without cytotoxic effect (United States Pharmacopoeia USP Class V1, ISO 10993-5 compliant)

We solve problems about self-adhesive film cover. This cover does not use adhesive, you do not have to worry touching risk culture medium. *Possible to smooth open, we can avoid contamination risk also.

No Problem liquid seal, No problem CO2 penetration

Cover consists of 2 parts. thin part, necessary to ventilation, thick part, sealing container.
Possible to seal smoothly at container opening with ultra low hardness.

Easy Live Transportation

Cover enables less quantity of culture medium with its shape, prevents flapping.
Also prevents cell and biomedical tissue at the time of transportation.

How to set（example : 6 well plate）

	①Primary container (dish, well plate) to be covered by silicone rubber cover.
	②Put on presser plate and push to set bot tom of iP-TEC® secondary container.
	③Covers reticulate cushion. (if necessary, put on Culture Pal® CO2 with breaking the seal)
	④Locks four sides at the lid of secondary container with pushing contents.
	⑤Forwards iP-TEC® heat storage material after putting into third box.
