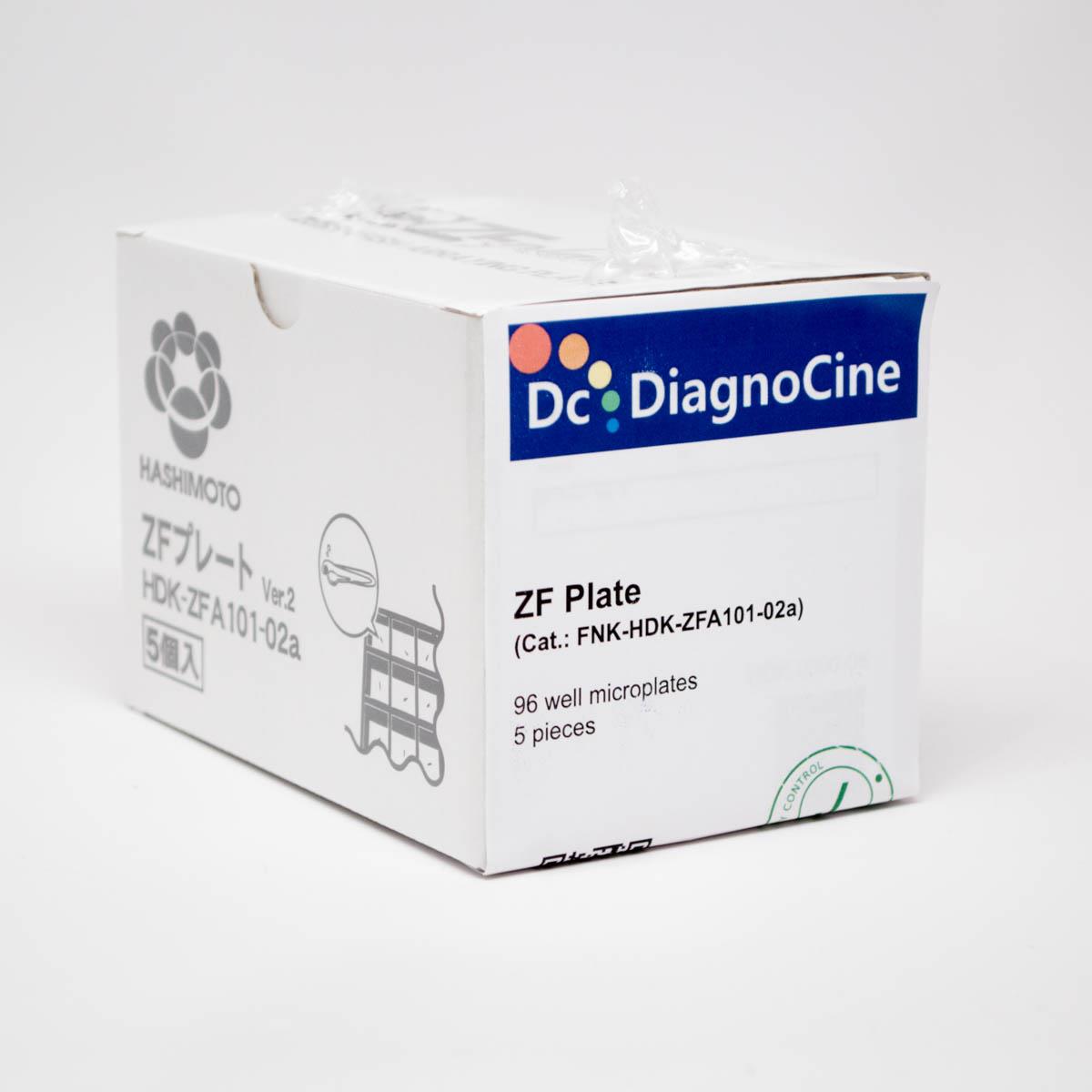

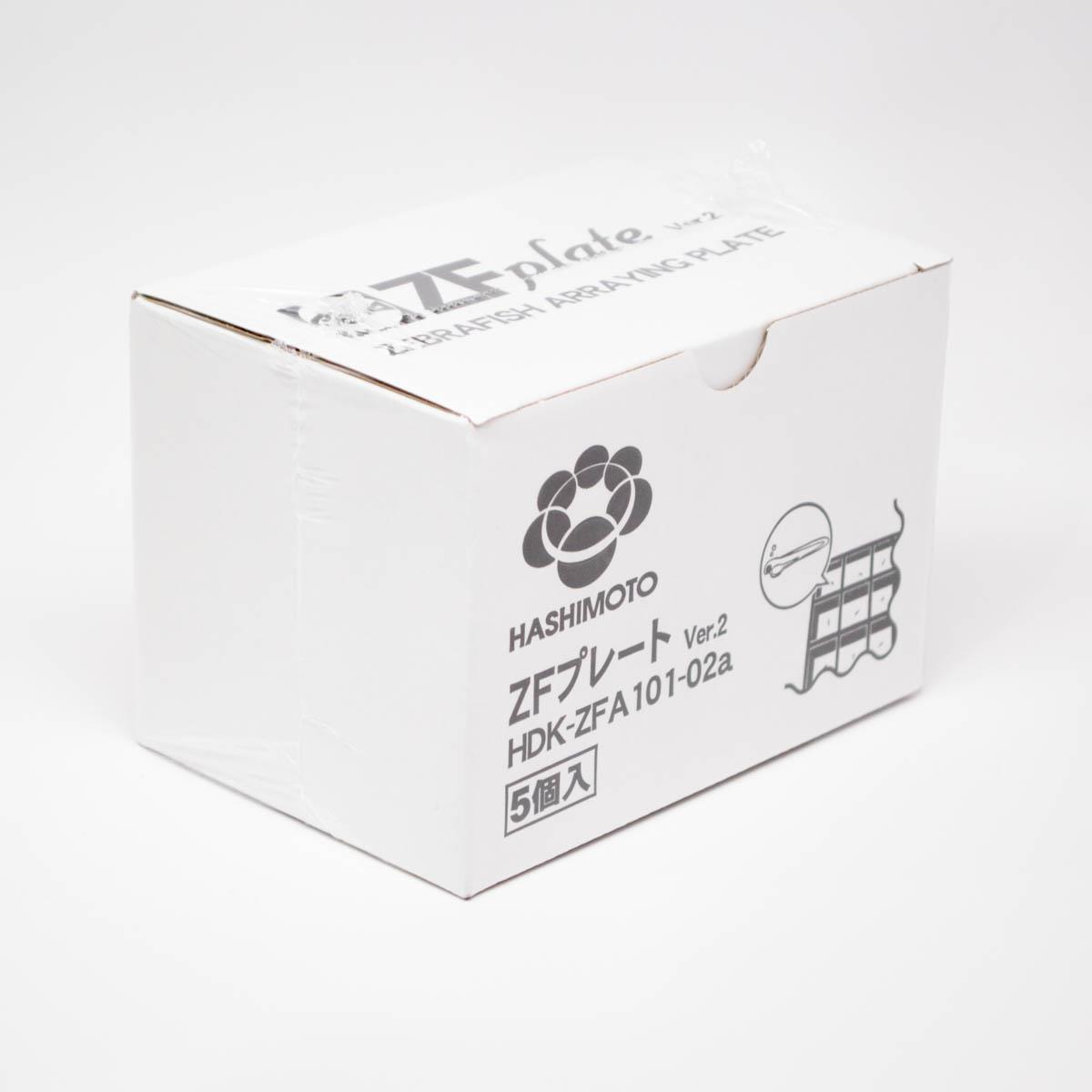

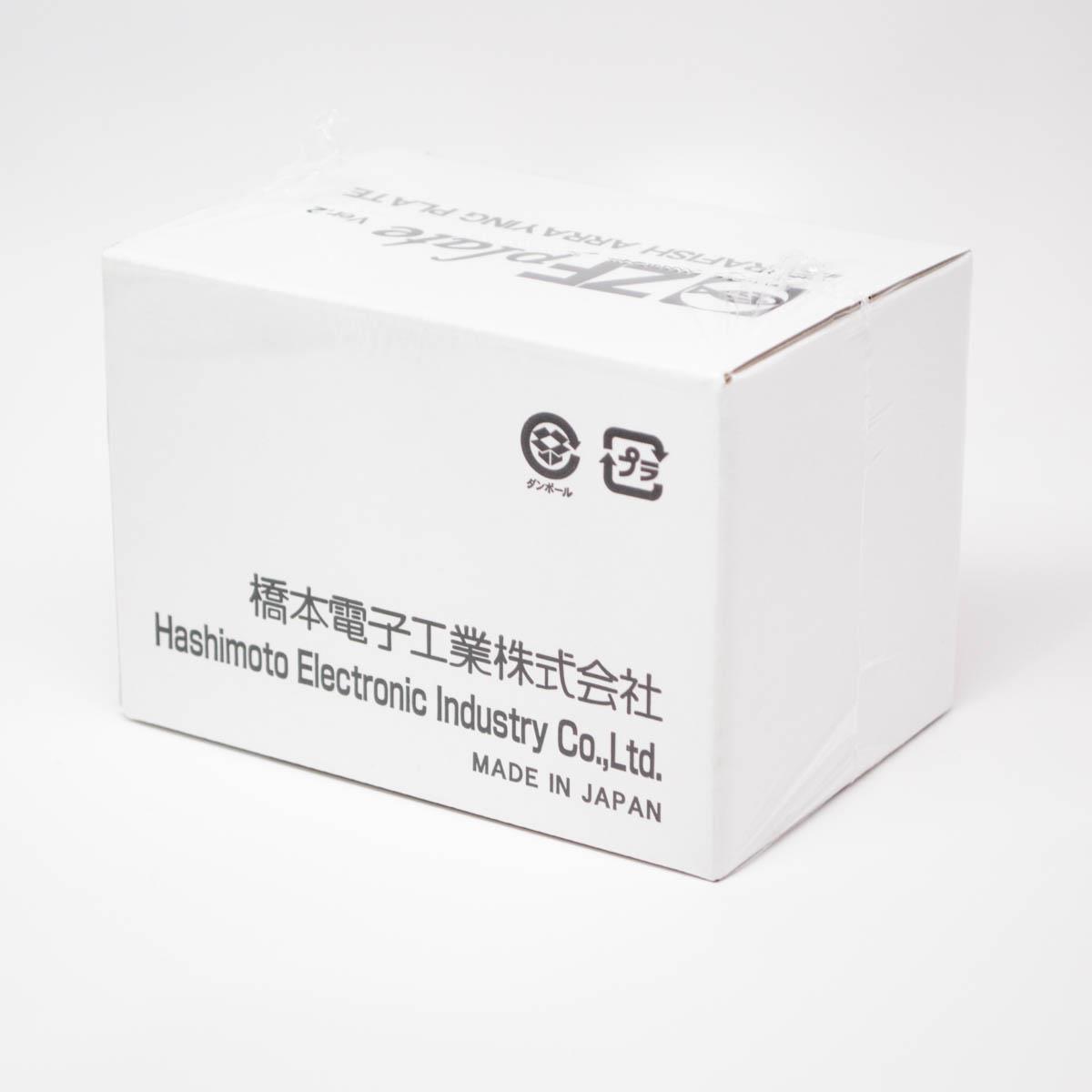

ZF Plate, 5 pieces

Product#: FNK-HDK-ZFA101-02a

$577.23

Qty:

Availability:

Ships in 1-2 Weeks

inform VIP Customers that the following products are expected to have longer delivery times due to the switch to make-to-order production of the plates that form the base of the products.

ZF plate

Cat. No.: HDK-ZFA101-02a-5 pcs
Size : 5 piece

Description

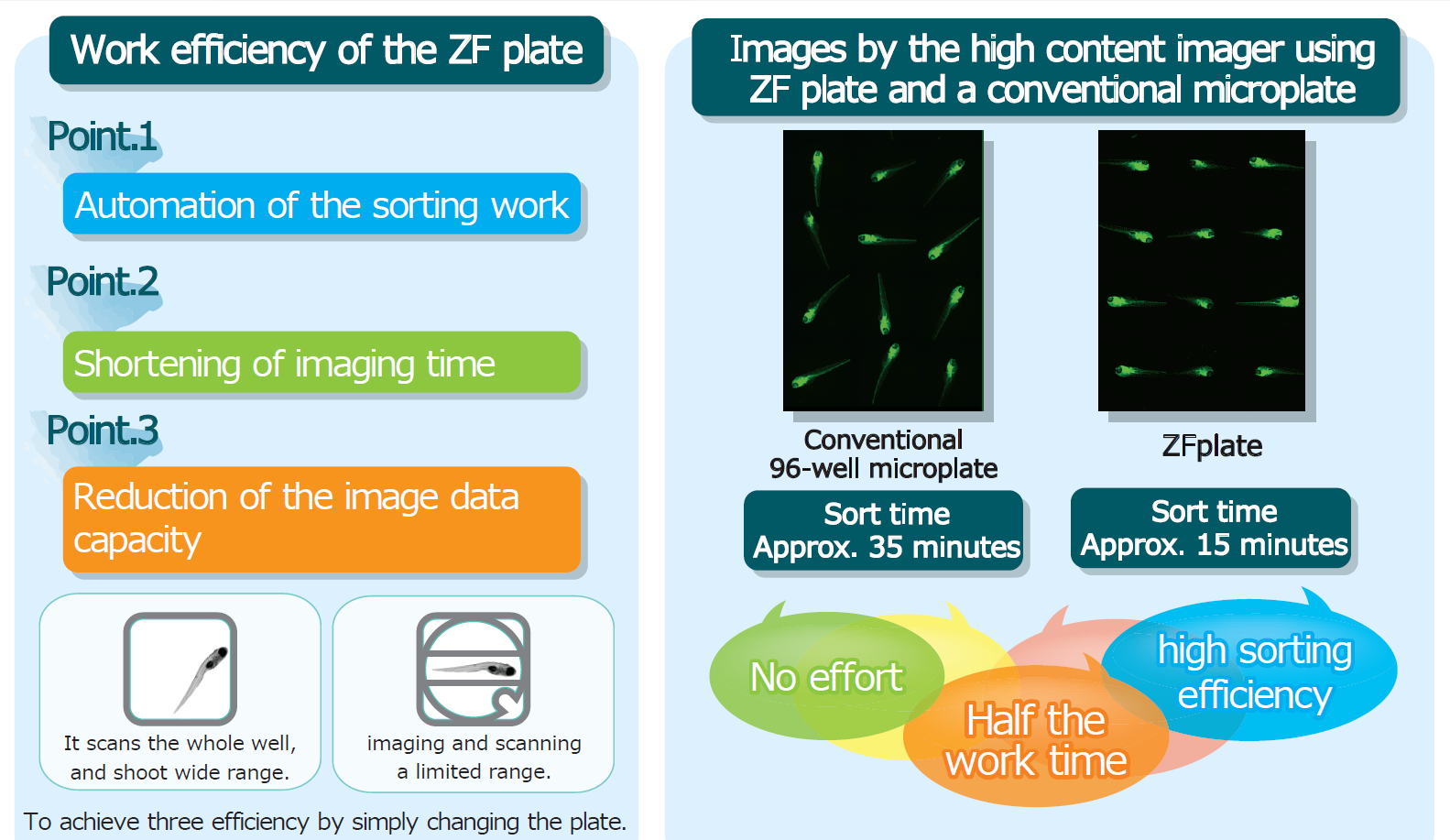

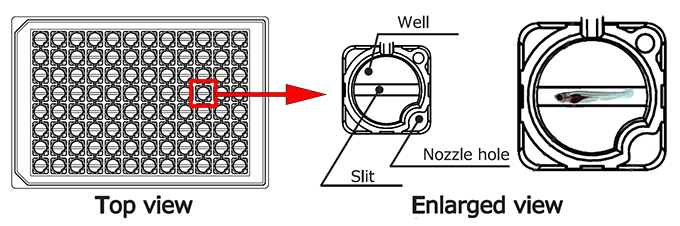

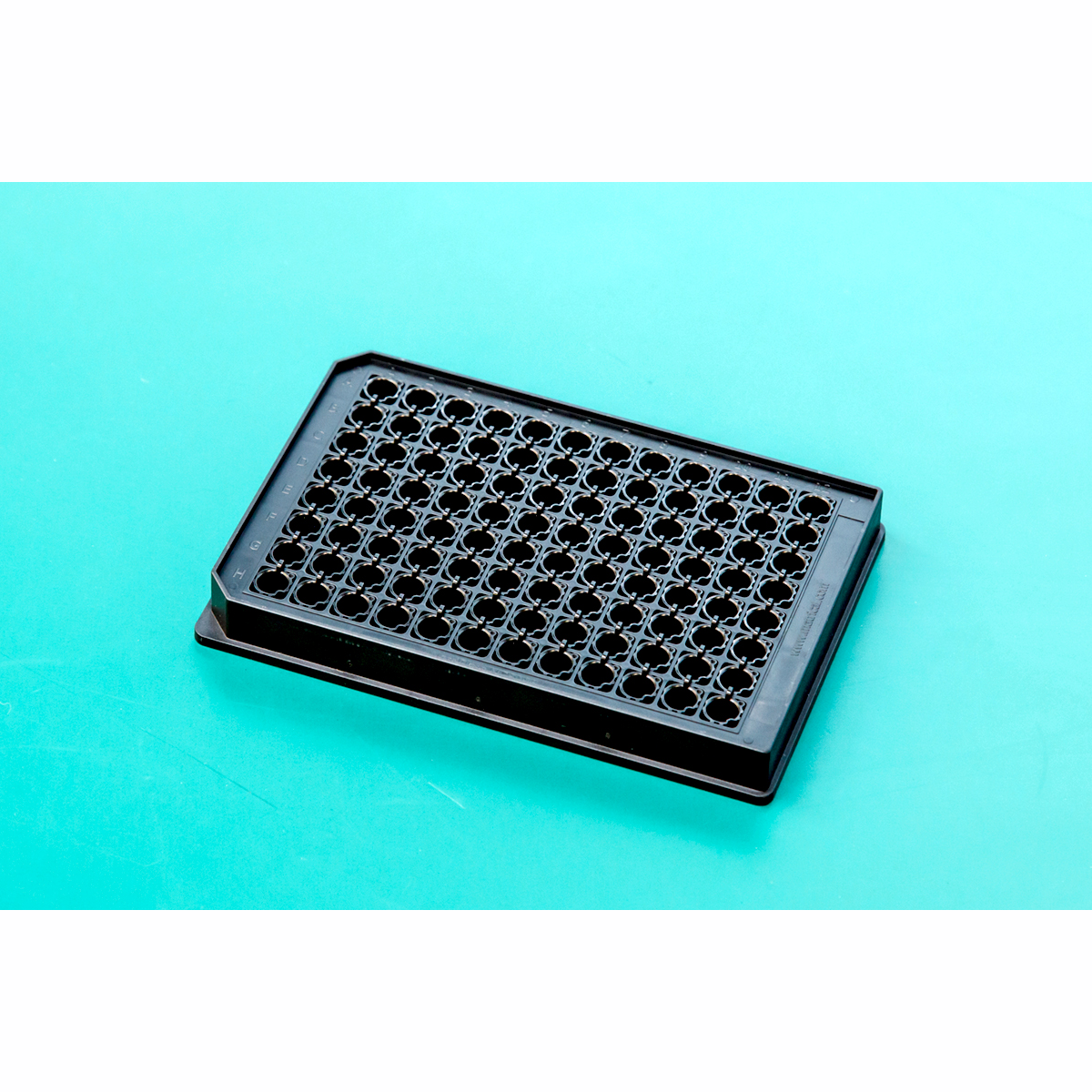

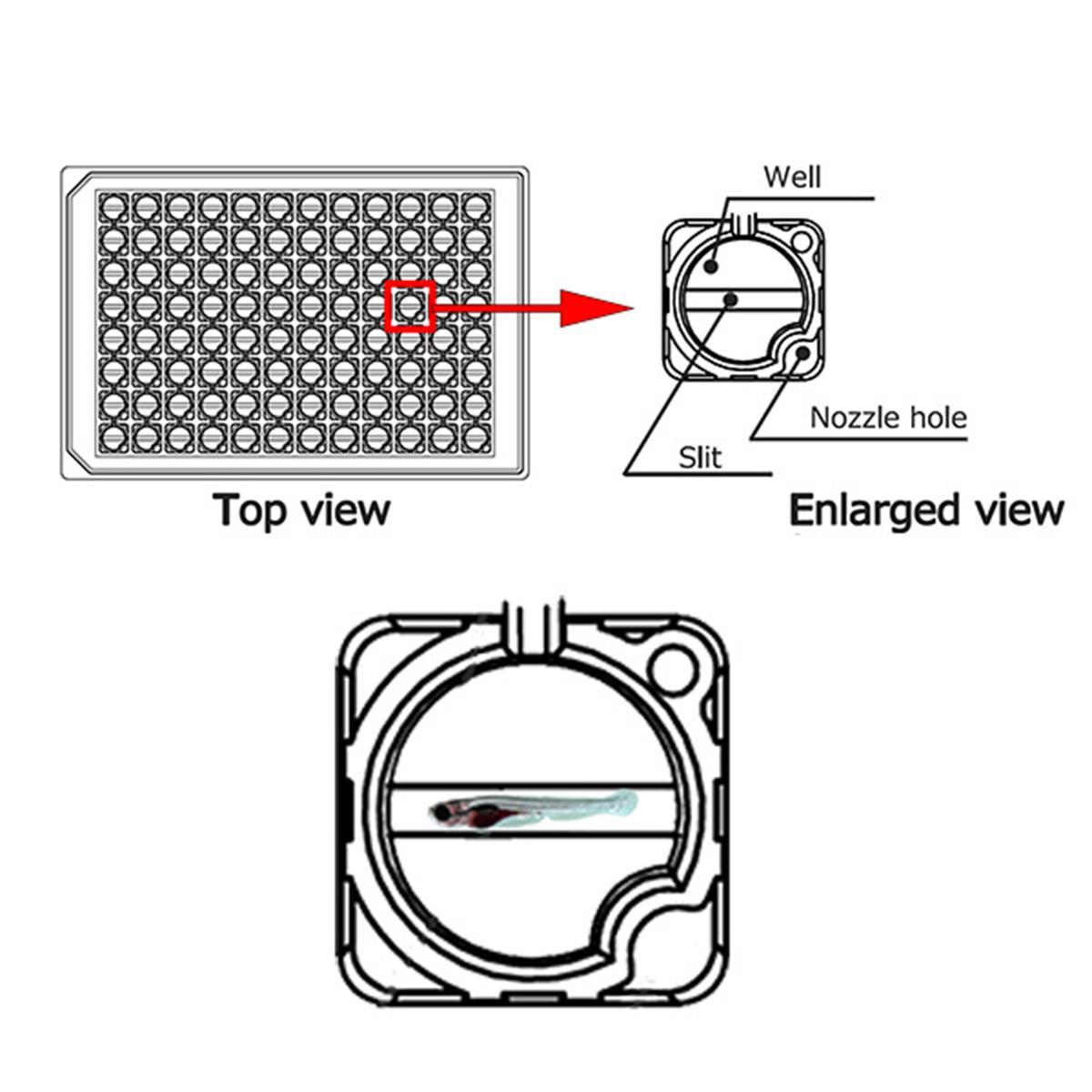

ZF Plate is a 96 well microplate optimized for drug screening using zebrafish. In case of the conventional microplate, small zebrafish had been sorted in each wells manually. However, ZF plate is an innovative microplate being able to sort zebrafish automatically. It can automate the time-consuming work and reduce the sorting time in half. Additionally, the plate is equipped with a glass bottom plate with excellent optical characteristics enabling more efficient quantitative chemical screening using zebrafish.

※The sort rate is arranged in a horizontal row and, refers to the percentage of individuals that can be taken from the body side.

No manual alignment work required! Alignment rate of 70% or more!
Revolutionary 96-well automatic alignment microplate! !!

How to use ZF plate

Subject: Anesthetized zebrafish (approx. 3dpf to 6dpf)

Used items	Procedure

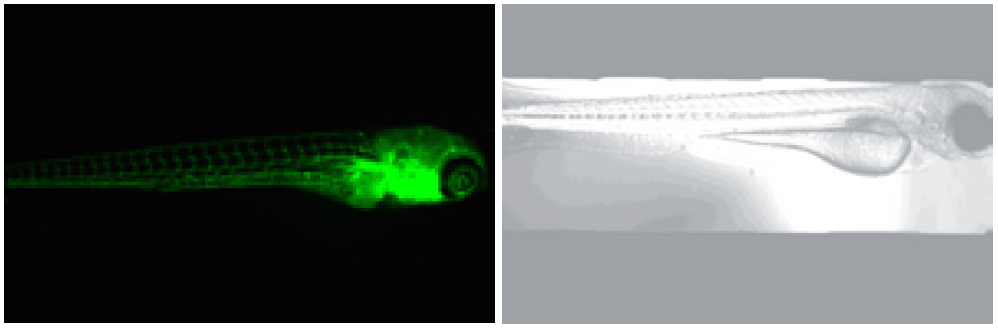

ZF plate Micro pipette(100μl to 200μl and 1ml,one of each) Pipette chip (wide bore type recommended) Microplate centrifuge(with spindown function)	Put anaesthetized zebrafish into the wells Spin down with centrifuge Observing with imaging device

Specifications

Model Cat. No.	FNK-HDK-ZFA101-02a-s	FNK-HDK-ZFA101-02a
Size	1 piece	5 pieces
Plate size (mm)	127.76 (W) x 85.48 (L) x 14.35 (H)
Weight(g)	without lid:72/with lid:95
Applicable standards	ANSI / SLAS-1 ~ 4 (96 well)
Maximum capacity per well (μl)	250
Plate material/color	Polystyrene/black
Bottom material/thickness (mm)	Slica glass • 0.17
Operating temprature	0 ~ 40^oC
Storage temprature	4 ~ 25^oC
Sterilized Yes/No	No
Link

*More Detaile size info. >>Click here <<

Please, Ask us, support@diagnocine.com

Citation Reference

Linsley, J. W., Shah, K., Castello, N., Chan, M., Haddad, D., Doric, Z., Wang, S., Leks, W., Mancini, J., Oza, V., Javaherian, A., Nakamura, K., Kokel, D., & Finkbeiner, S. (2021). Genetically encoded cell-death indicators (GEDI) to detect an early irreversible commitment to neurodegeneration. Nature Communications, 12(1), 5284. https://doi.org/10.1038/s41467-021-25549-9

Reference, Compatible devices

And the microscope that can micro plate of observation, Brooks, Inc. models fir Matrical microplates is available.

Molecular Devices	ImageXpress Micro XLS
Molecular Devices	ImageXpress Velos
Essen Instruments	IncuCyte
Bio-Rad	Ultramark
GE	IN Cell Analyzer 1000
GE	IN Cell Analyzer 3000
Li-Cor	Aerius
Life Technologies	EVOS Auto Imaging System
	EVOS FL Imaging System
	EVOS XL Core Imaging System
PerkinElmer	ViewLux
