Steritainer 10L
Product#: FNK-SR-10G
$1,593.50
Availability:
Ships in 1-2 Weeks
Steritainer Plus / Steritainer
Cat. No. List below
| Product Name | Cat. No. | Link | Capacity (ℓ) | Container Inner | Size | Packing Dimension (mm) | Storage |
| Dimension (mm) | |||||||
| Steritainer | SR-05G |  |
5 | 190×190×190H | 50 Pieces | 640×530×260H | RT |
| SR-10G | |
10 | 230×230×230H | 650×650×280H | |||
| SR-20G | |
20 | 285×285×285H | 25 Pieces | 700×410×360H | ||
| Steritainer Plus | SR-05S | |
5 | 190×190×190H | 10 Sheets | Outer Box: 400×295×295H Inner Box: 279×279×183H |
|
| SR-10S | |
10 | 230×230×230H | ||||
| SR-20S | |
20 | 285×285×285H | ||||
| Steritainer Plus 3ports connector included |
SR-05P | |
5 | 190×190×190H | |||
| SR-10P | |
10 | 230×230×230H | ||||
| SR-20P | |
20 | 285×285×285H | ||||
| Steritainer Plus 3ports connecter ASSY (1/4inch) included |
SR-05A(1/4) | |
5 | 190×190×190H | 5 Sheets 5 ASSY |
||
| SR-10A(1/4) | |
10 | 230×230×230H | ||||
| SR-20A(1/4) | |
20 | 285×285×285H | ||||
| Steritainer Plus 3ports connector ASSY (3/8inch) included |
SR-05A(3/8) | |
5 | 190×190×190H | |||
| SR-10A(3/8) | |
10 | 230×230×230H | ||||
| SR-20A(3/8) | |
20 | 285×285×285H | ||||
| Cardboard Box for Steritainer | SR-05G-D | |
5 | 50 pieces | |||
| SR-10G-D | |
10 | |||||
| SR-20G-D | |
20 | 25 pieces |
Gamma Beam Sterilized Liquid Transportation / Storage Container
Description

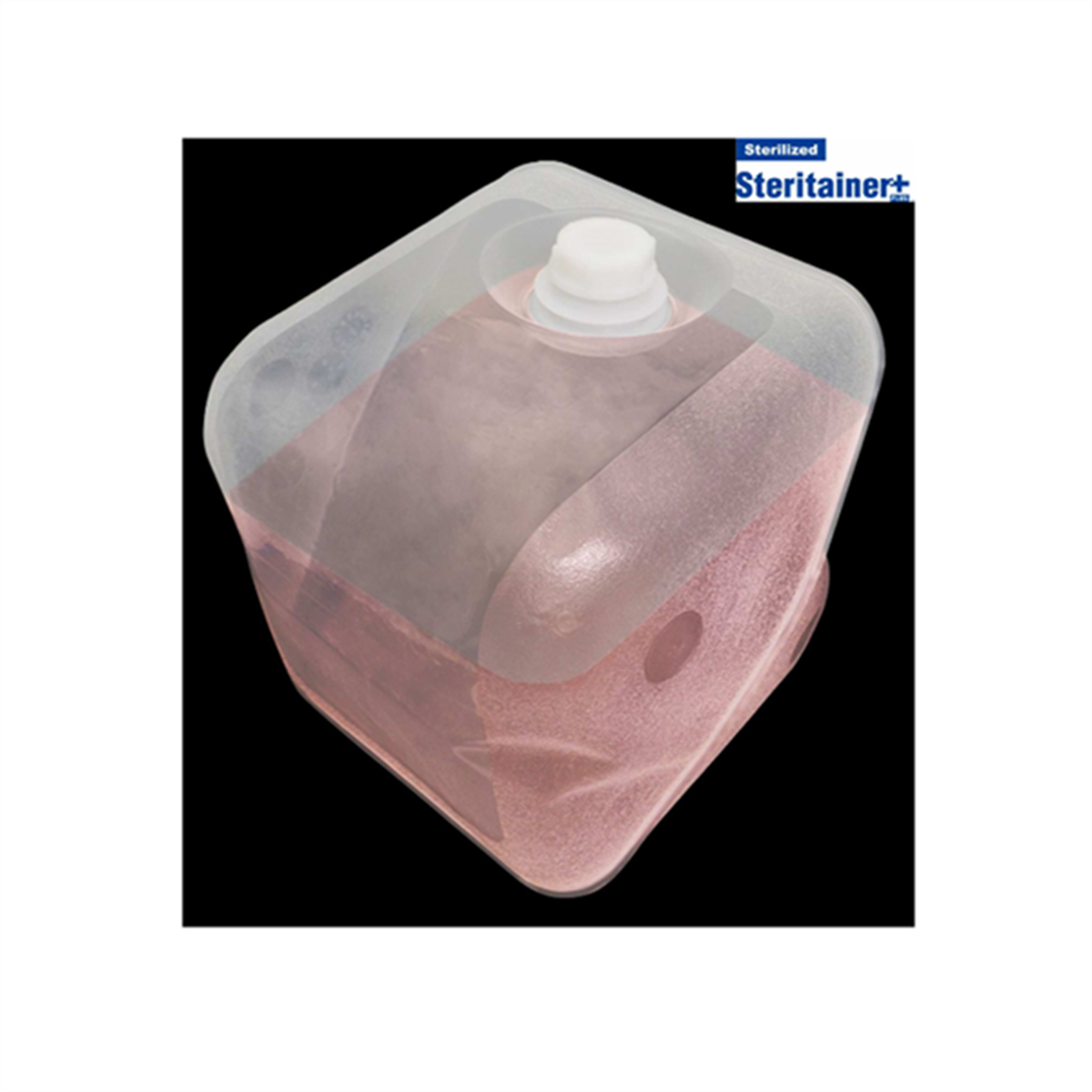

Steritainer Plus / Steritainer is the 3D Single Use Sterile Bag suitable for the retention / transportation of liquid products which require sterile environment in a container.
Feature
- Space saving
- 3D shape has been realized among single use bags less than 20L.
- Installation is capable at narrow location such as in a sterile chamber.

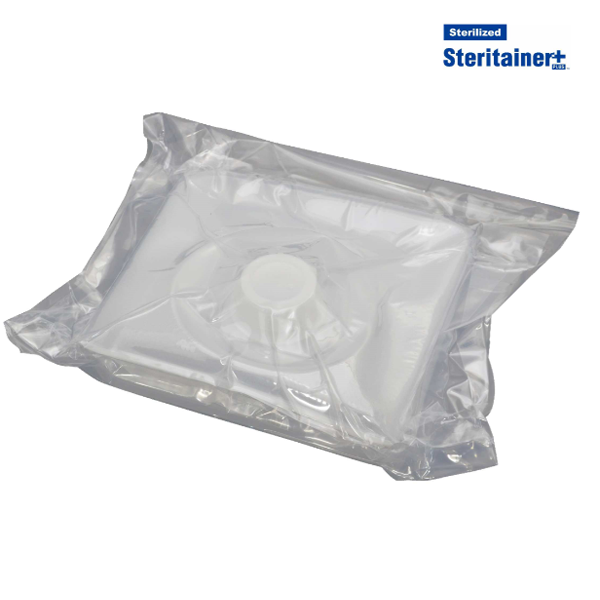

- The Steritainer Plus is compactly packaged with individual wrapping.
- High-Strength Design

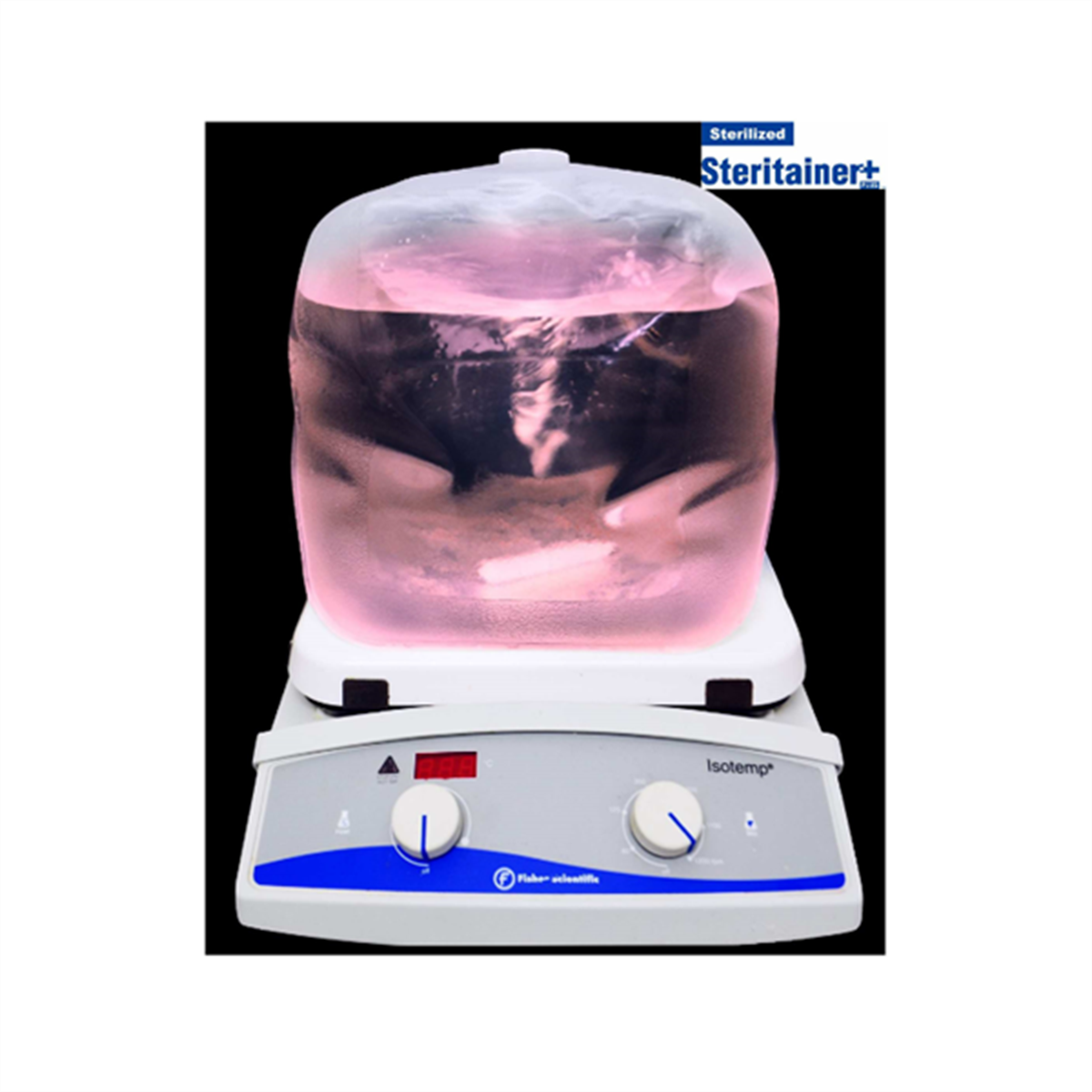

- The main part of the bag has been designed to high-strength specifications and self-supporting so that stirring can be carried out easily without transferring the contents to glass containers.
- The three-dimensional design provides excellent dissolution efficiency when mixing solutions, which also enables powder medium to be formulated within short periods of time.
- Easy to Use
- The surface of the container has been treated with special embossing to prevent fold wrinkles and scratches, and to reduce friction damage during transportation.
- A transparent window has been included at an easily-visible location to enable discoloration of the solution to be checked.
 |
 |
 |

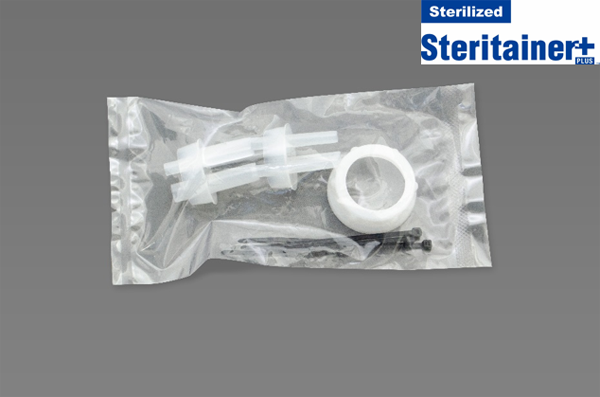

3-Port Connector / 3-Port Connector ASSY
- Can discharge solution and air at closed sterile system
| 3-Port Connector |

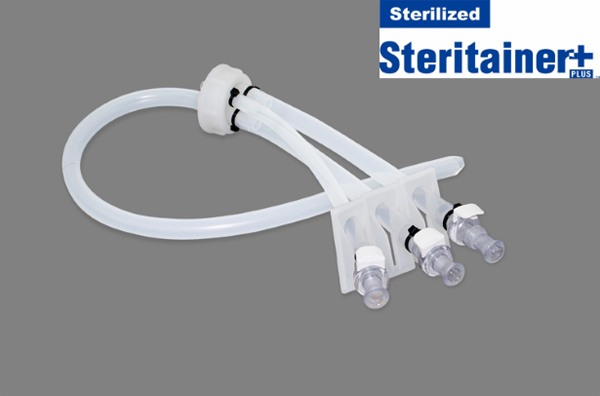

3-Port Connector ASSY
|
 |
 |
| Class | Port OD and No. of Ports |
| 1/4 Inch Type | 1/4 inch Type x 3 |
| 3/8 Inch Type | 3/8 inch Type x 2 |
| 1/4 inch Type x 1 |
