OS40L Overhead Stirrer 40L includes: stand & IPS2050-P-S4, 100V to 240V w/US plug
Product#: BM-IPS2050-40
$1,699.10
Availability:
Ships in 48 hours
OVERHEAD STIRRER, 20L
Cat No: BM-IPS2050-40
- LCD control panel
- Includes complete stand assembly
- Compact and quiet
- Digital accuracy and convenience
Description

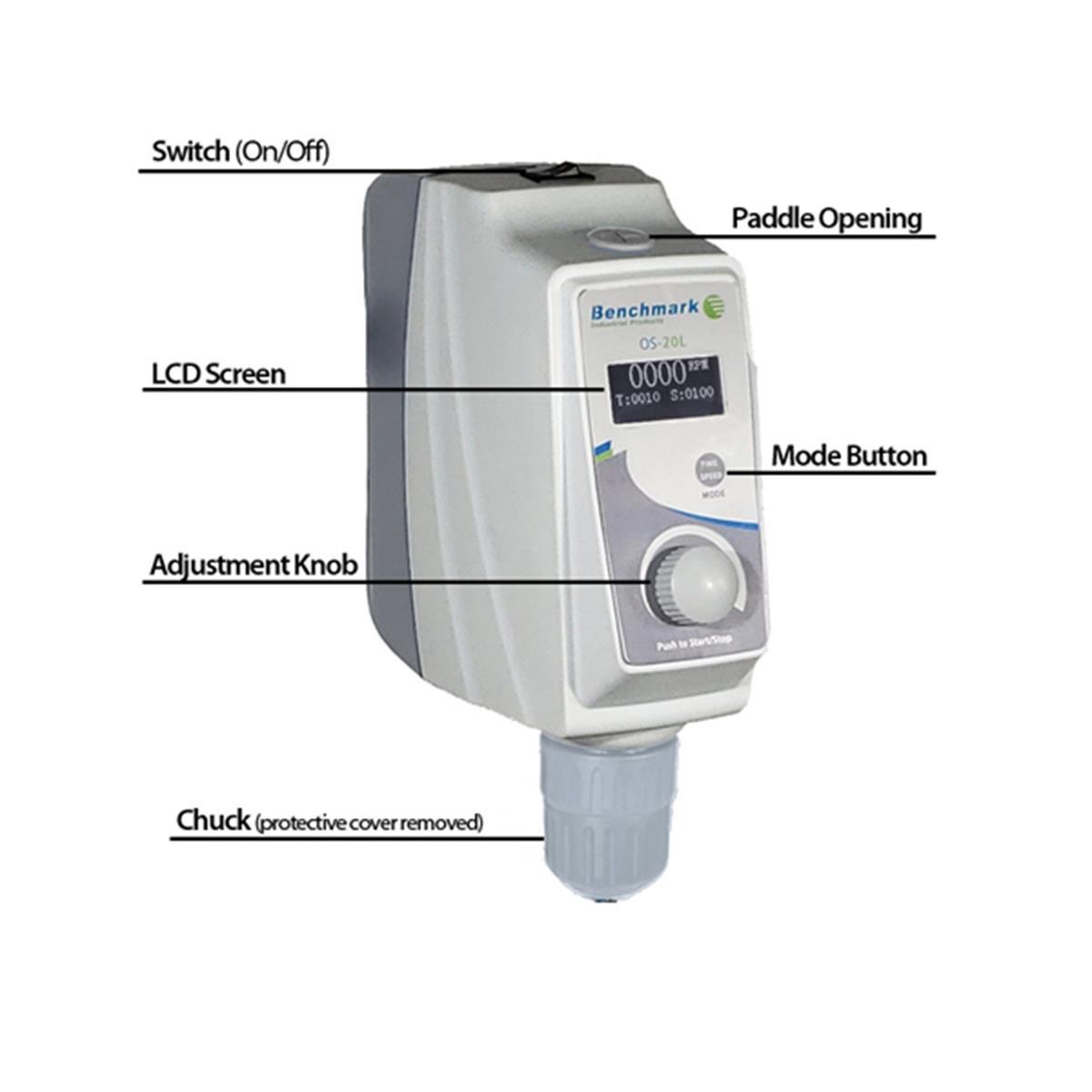

Benchmark’s Overhead Stirrers feature high torque and advanced digital microprocessor control for smooth mixing of low and medium viscosity samples. Speed and run time are accurately set and monitored on the LCD screen. Both the 20L and 40L capacity models are supplied with a 4 arm stainless steel propeller, additional steel and Teflon accessories are available. A feed-through chuck holds accessory shafts firmly in place and is easily tightened and loosened without tools.

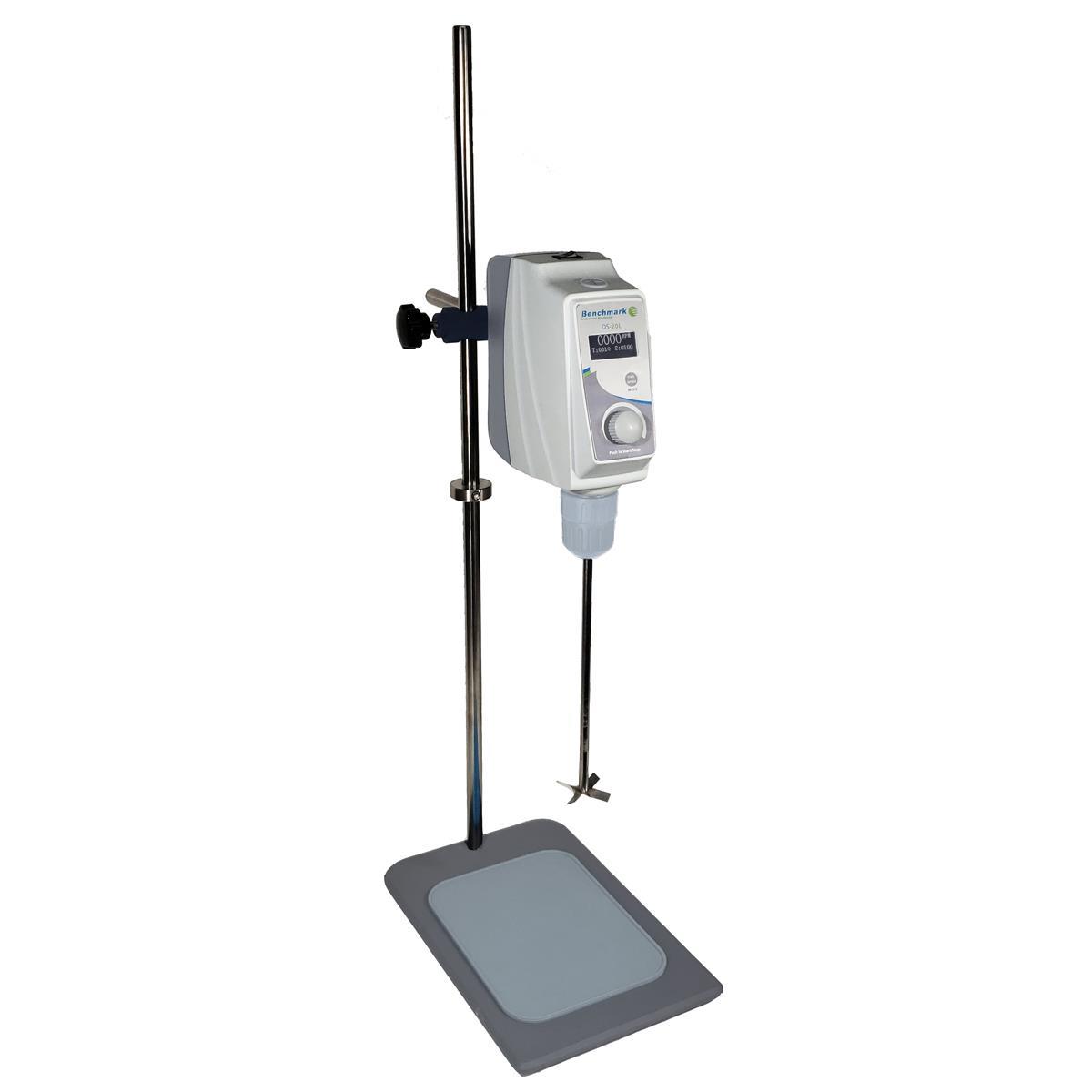

The overhead stirrers are protected from damage by sensors that shut down operation in the case of high viscosity or obstruction, while a splash cover protects the connection mechanism from potential corrosion. Unlike most mixers, the Benchmark series is also supplied with a support stand and mounting hardware. The stirrer easily and securely attaches to the stand for compatibility with a variety of vessels, up to 24 inches high.
The overhead stirrers are protected from damage by sensors that shut down operation in the case of high viscosity or obstruction, while a splash cover protects the connection mechanism from potential corrosion. Unlike most mixers, the Benchmark series is also supplied with a support stand and mounting hardware. The stirrer easily and securely attaches to the stand for compatibility with a variety of vessels, up to 24 inches high.
Specifications
|
Model:
|
OS-20L / OS-40L
|
|
Mixing Capacity (H20):
|
20L / 40L
|
|
Maximum Torque:
|
40Ncm / 60Ncm
|
|
Input Power:
|
60W / 120W
|
|
Output Power:
|
50W / 100W
|
|
Net Weight (Mixer):
|
2.6kg / 2.8kg
|
|
Maximum Viscosity:
|
10000mPas / 50000mPas
|
|
Speed Range:
|
30-2200 rpm
|
|
Motor Type:
|
DC brushless motor
|
|
Chuck Diameter Range:
|
0.5-10mm
|
|
Exterior Dims.: (WxDxH)
|
7.3 x 3.3 x 8.7 in. / 18.6 x 8.3 x 22.0 cm.
|
|
Protection Mode:
|
IP42
|
|
Ambient Operating Range:
|
5-40°C
|
|
Electrical:
|
100-240AC 50-60Hz
|
|
Warranty:
|
2 years
|
Order Information
| Cat No. | Description | Link |
| BM-IPS2050-20 | OS20L Overhead Stirrer 20L includes: stand & IPS2050-P-S4, 100V to 240V w/US plug |  |
| BM-IPS2050-20-E | OS20L Overhead Stirrer 20L includes: stand & IPS2050-P-S4, 100V to 240V w/EU plug | |
| BM-IPS2050-40 | OS40L Overhead Stirrer 40L includes: stand & IPS2050-P-S4, 100V to 240V w/US plug | |
| BM-IPS2050-40-E | OS40L Overhead Stirrer 40L includes: stand & IPS2050-P-S4, 100V to 240V w/EU plug | |

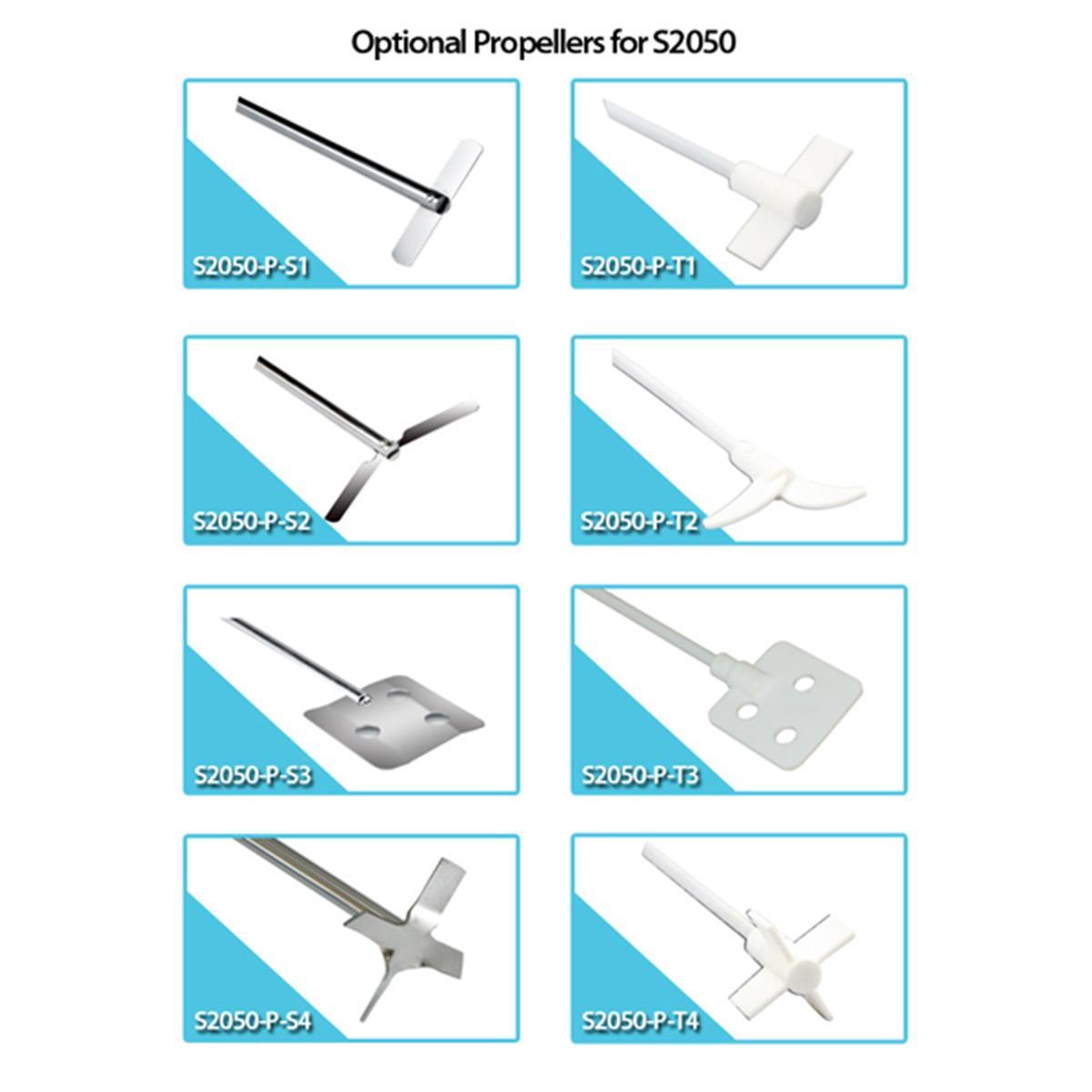

Optional Accessories
| Model | Cat No. | Description | Link |
 |
BM-IPS2050-P-S1
|
Optional propeller, stainless steel one line
|
|
 |
BM-IPS2050-P-S2
|
Optional propeller, stainless steel centrifugal impeller
|
|
 |
BM-IPS2050-P-S3
|
Optional propeller, stainless steel paddle with flat holes
|
|
 |
BM-IPS2050-P-S4
|
Included propeller, stainless steel 4-arm
|
|
 |
BM-IPS2050-P-T1
|
Optional propeller, Teflon one line
|
|
 |
BM-IPS2050-P-T2
|
Optional propeller, Teflon centrifugal impeller
|
|
 |
BM-IPS2050-P-T3
|
Optional propeller, Teflon paddle with flat holes
|
|
 |
BM-IPS2050-P-T4
|
Optional propeller, Teflon 4-arm
|
|
