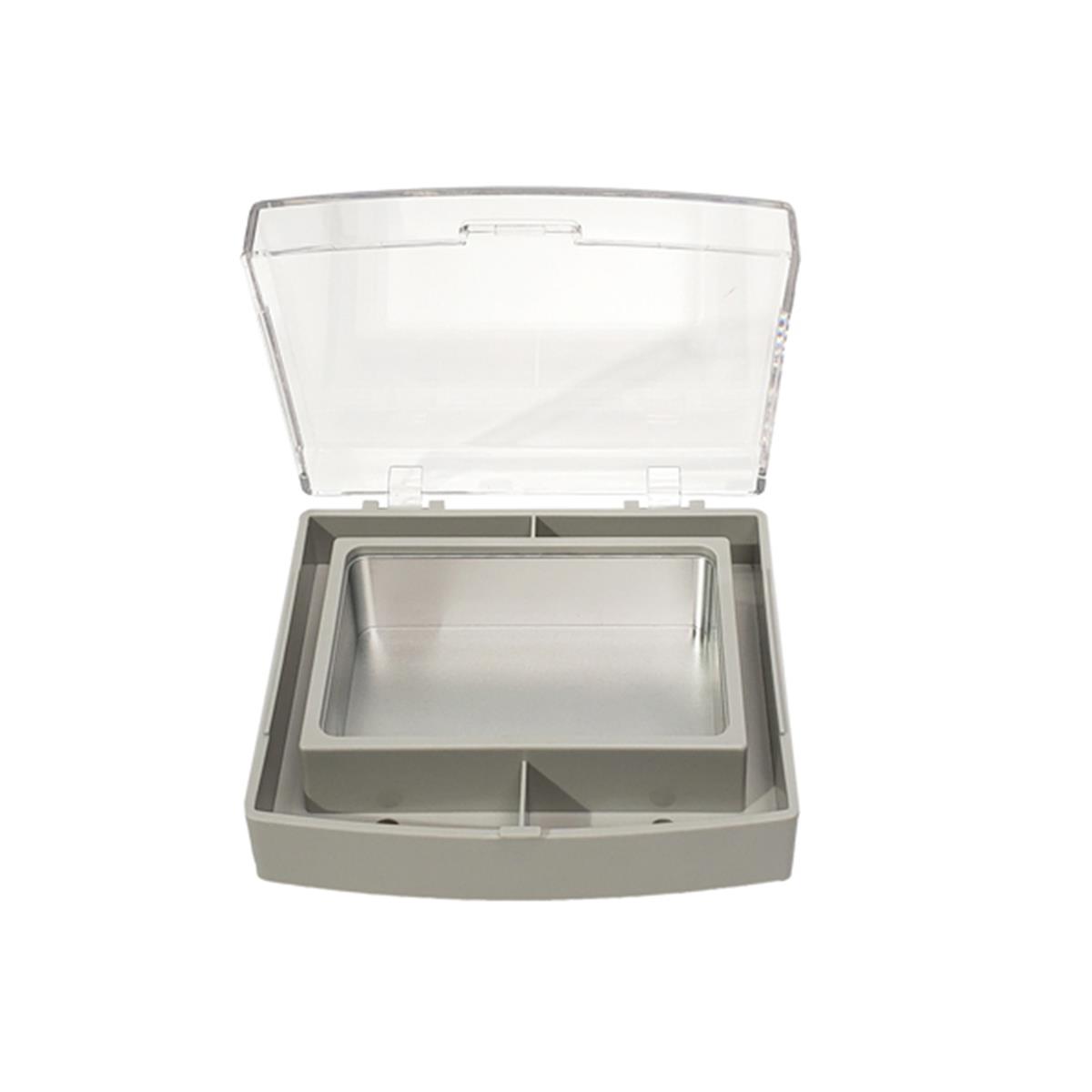

[Part Only] MultiTherm Shaker Block, multipurpose for liquids, beads, etc.
Product#: BM-H5000-WB
$539.87
Availability:
Ships in 48 hours
This product is ONLY an ACCESSORY PART of the machine. This accessory part is SOLD SEPARATELY from the main machine.
[Part Only] MultiTherm Shaker Block, multipurpose for liquids, beads, etc.
- Temperature control from 0 to 100°C
- Exchangeable blocks, for tube sizes 0.2 to 50 ml
- Precision contoured wells for uniform thermal transfer
- Two models: Heat/Cool or Heat only
- Sequence link function for linking or repeating programs (HC model only)
- Blocks sold separately
Description

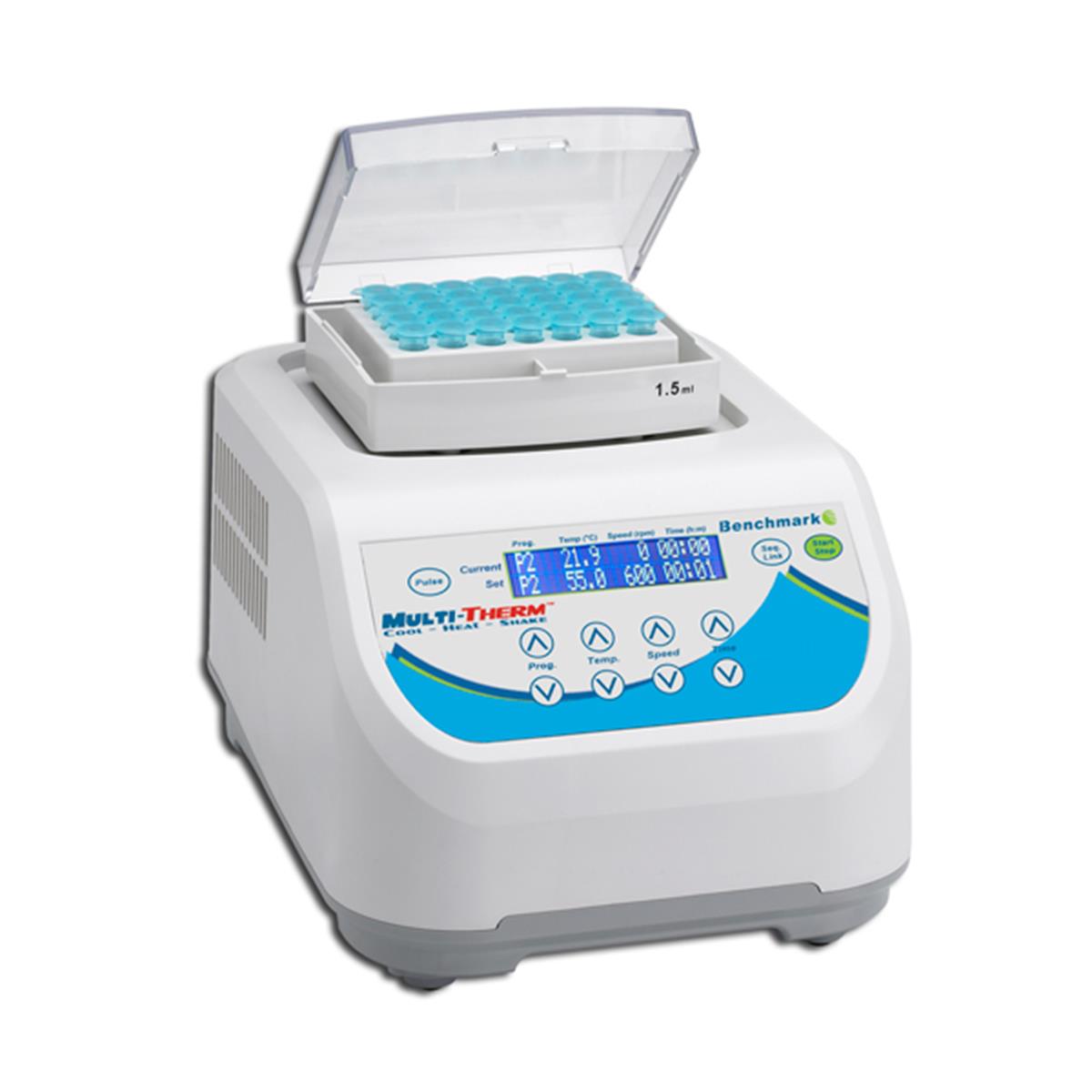

The MultiTherm shaker is a temperature controlled vortexer, useful for a variety of molecular biology applications. Despite its modest 8 x 11 in. footprint, all popular tubes and plates are compatible, including as many as six 50 ml tubes. Speed, time and temperature settings are continuously visible on the LCD, simultaneously showing both actual and selected values. Integral over-temperature control ensures long life, safety and sample integrity. Blocks are sold separately.
Specifications
|
Speed:
|
200 to 1500 rpm (or off)
|
|
Orbit:
|
3mm
|
|
Temp. Range (H5000-HC):
|
Ambient -20 to 100°C
|
|
Temp. Range (H5000-H):
|
Ambient +5 to 100°C
|
|
Temperature Increment:
|
0.1°C
|
|
Temp. Accuracy:
|
+/- 1.0°C
|
|
Capacity:
|
Per Selected Block
|
|
Speed Increment:
|
10 rpm
|
|
Heating Rate:
|
5.0°C per. min.
|
|
Cooling Rate:
|
2.5°C per. min.
|
|
Dimensions: (w x d x h)
|
8.25 x 11.5 x 8.25 in. / 21 x 29 x 21 cm
|
|
Weight:
|
18 lbs (8kg)
|
|
Timer:
|
1 min. to 99 hours 99min. / continuous
|
|
Electrical:
|
115 or 230V 50-60Hz; 500W
|
|
Warranty:
|
2 Years
|
Order Information
| Model | Cat No. | Description | Link |
 |
BM-H5000-HC | MultiTherm Shaker with heating and cooling, 115V |  |
| BM-H5000-HC-E | MultiTherm Shaker with heating and cooling, 230V | |
|
| BM-H5000-H | MultiTherm Shaker with heating only, 115V | |
|
| BM-H5000-H-E | MultiTherm Shaker with heating only, 230V | |
Optional Accessories
| Model | Cat No. | Description | Link |
 |
BM-H5000-02 | Block, 96 x 0.2mL or one PCR plate | |
 |
BM-H5000-05 | Block, 54 x 0.5mL | |
 |
BM-H5000-CMB | Block, combination, 15 x 0.5 and 20 x 1.5mL | |
 |
BM-H5000-15 | Block, 35 x 1.5mL | |
 |
BM-H5000-20 | Block, 35 x 2.0mL | |
 |

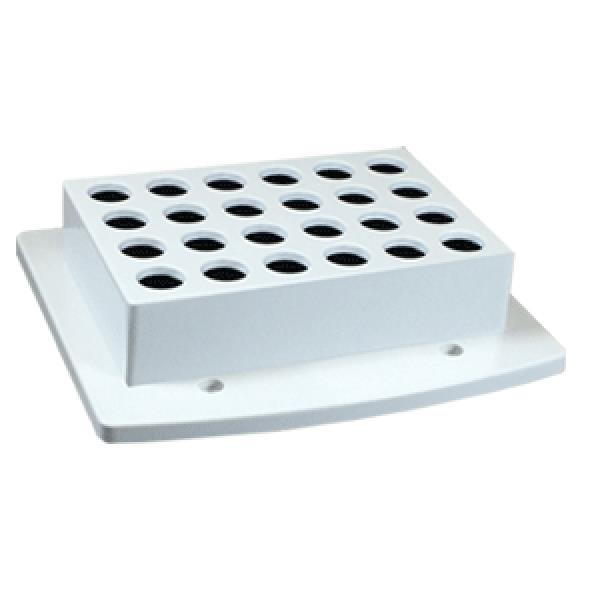

BM-H5000-12 | Block, 24 x 12mm | |
 |
BM-H5000-150 | Block, 12 x 15mL | |
 |
BM-H5000-500 | Block, 6 x 50mL | |
 |
BM-H5000-5MT | Block for 5mL centrifuge tubes | |
 |
BM-H5000-MP | Block for one micro plate | |
 |
BM-H5000-DWMP | Block for one Deep Well micro plate | |
 |
BM-H5000-1232 | Block, 24 x 2mL HPLC/Autosampler Vials (12 x 32mm) | |
| BM-H5000-025 | Block, 48 x 250ul vial insert (6 x 30mm) | |
|
 |
BM-H5000-CU | Block, custom drilled, for tubes/vials up to 40mm tall | |
 |
BM-H5000-WB | Block, multipurpose for liquids, beads, etc. Chamber dimensions: 4 x 2.6 x 1" | |
