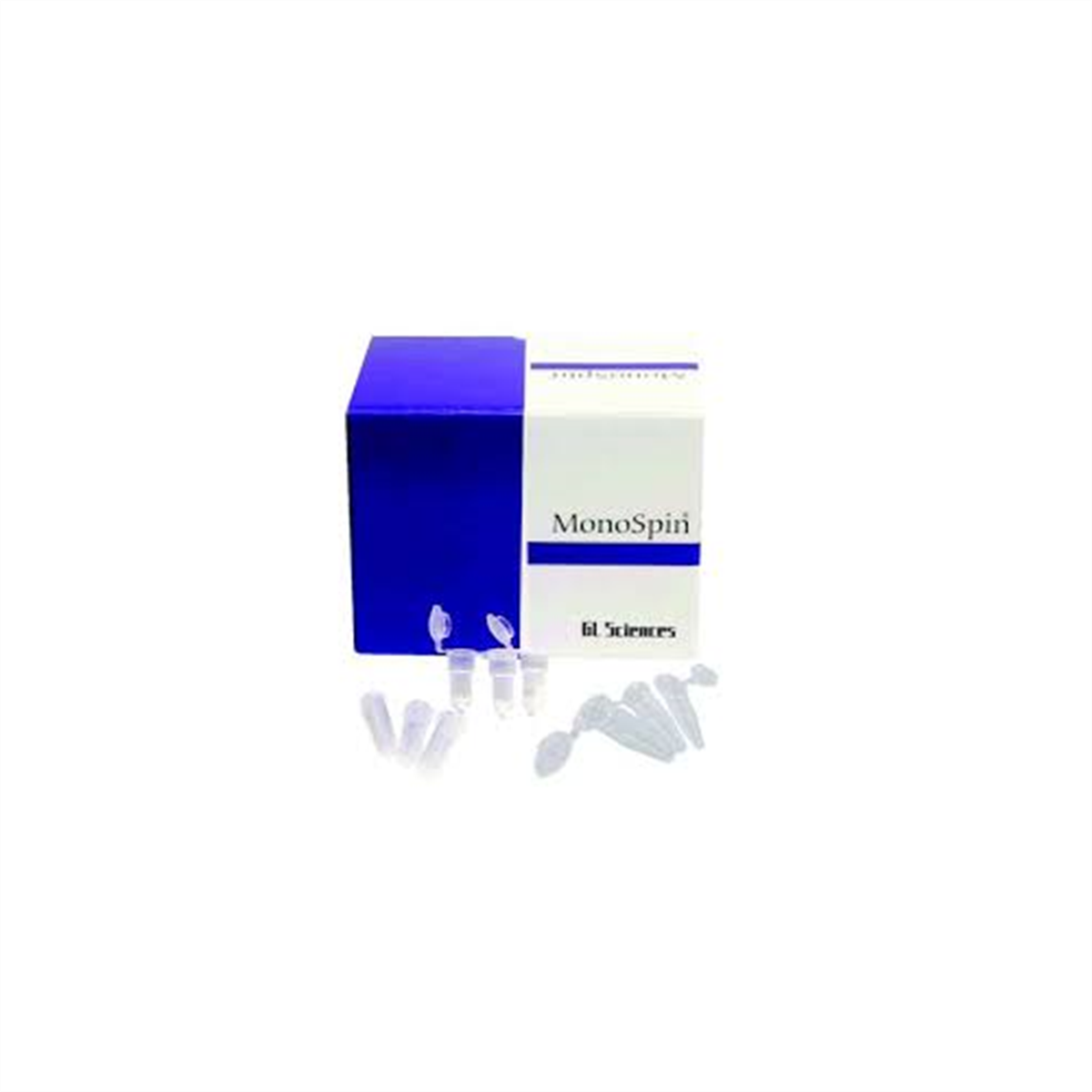

MonoSpin ME (100 pieces)

MonoSpin Affinity Columns (PBA, ME, TiO, Phospholipid)

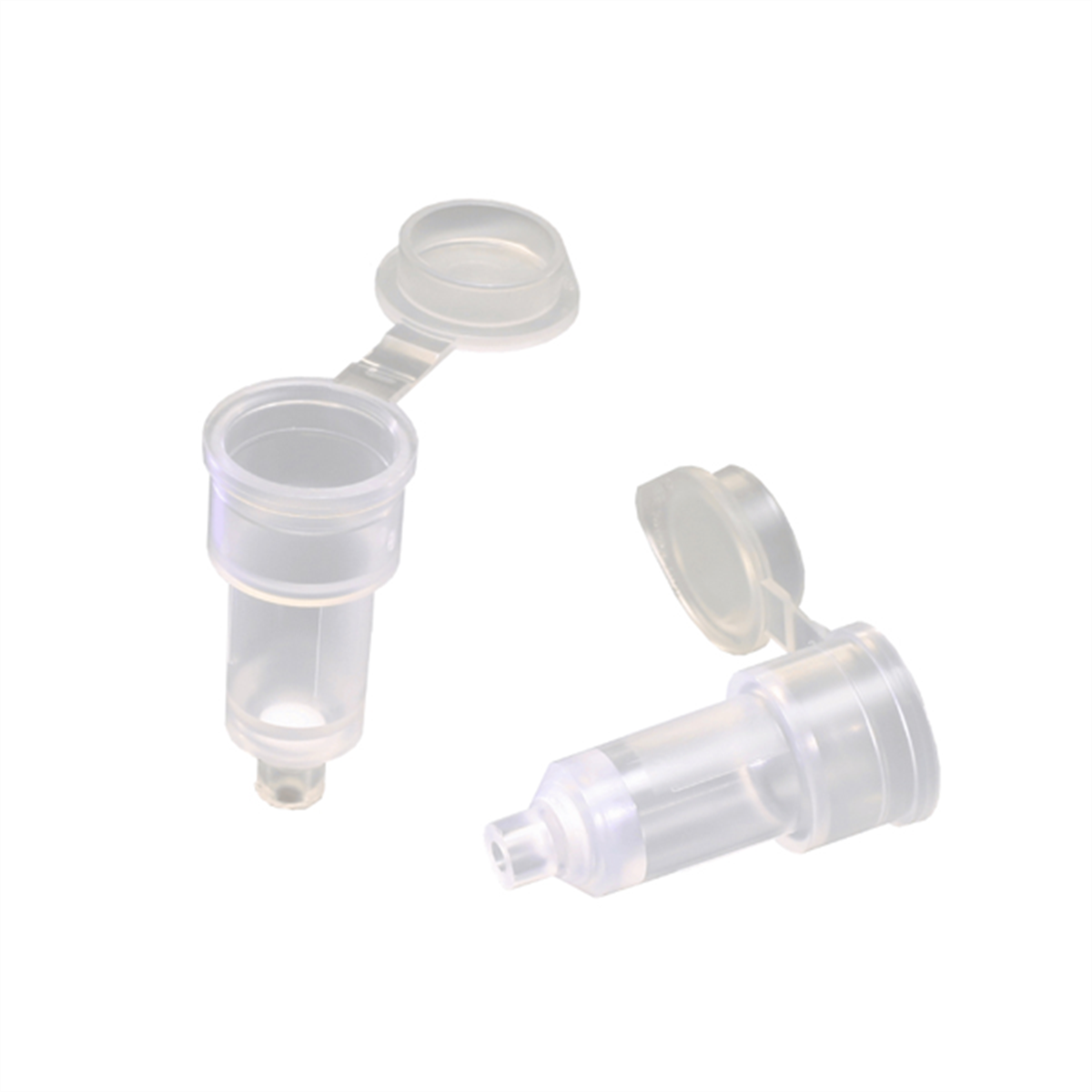

MonoSpin is a monolithic SPE column excellent for the small volume sample with an easy and quick operation by centrifuge.

Description

MonoSpin is a SPE (Solid Phase Extraction) column with monolithic silica (monolith). This is designed for small volume sample preparation by centrifuge. GL Sciences' unique monolith silica technology.
GL Sciences’ monolith silica technology has low-pressure, high-flow, and low-liquid-retention properties, makes it uniquely suited for handling small amount samples.

• Easy-to-Operate
• High Throughput and Rapid Operation for Biological Sample
• Ideal for Small Sample Volumes
• Selective Purification/Enrichment by Wide Various Functional Groups

S type (Short type)	L type (Long type)
Disc size : Φ 4.2 x 1.5 mm Sample volume : up to 800 μL Elution volume : 50 – 800 μL Centrifuge : 2000 - 10000 x g	Disc size : Φ 9 x 3 mm Sample volume : up to 8000 μL Elution volume : 500 – 8000 μL Centrifuge : 1000 x g

Functional Group


Cat. No.	Image	Functional Group		Type	Qty (pcs)	Link
MonoSpin PBA
Boronic acid column is optimized for selective extraction of cis diols, such as catecholamines.  This column has high selectivity property for materials that bins to  phenyl boronic acid.
FNK-501021715		PBA		S	50
FNK-501021716		PBA		S	100
MonoSpin ME
Iminodiacetic acid column is optimized for the recovery of trace metals and multiple type of samples.
FNK-501021737		ME		S	50
FNK-501021738		ME		S	100





Procedure

Fig. 1 Purification of pyridylaminated saccharides (MonoSpin NH2)
MonoSpin NH2 shows up to 100% recovery of the pyridylaminated saccharides from original impure sample.
