MYBLOCK II Digital Dry Baths - dual chamber, without blocks, 230V
MYBLOCK SERIES DRY BATHS
- Digital temperature control (set and walk away)
- Hinged lid (improves uniformity & conserves energy)
- External (optional) temperature probe (measures actual sample temperature
- Available with Quick-Flip universal blocks (supports all common tube sizes, PCR strips and PCR plates) Patent Pending
- Blocks sold separately
Description
Benchmark’s myBlock series is a “next generation” product line that introduces several major advantages over traditional dry baths. They are the first digital dry baths to include advanced microprocessor controls, timed or continuous operation and a removable hinged lid. In addition, an optional external temperature feedback probe can be positioned directly inside a sample tube, providing real-time control and monitoring of actual sample temperature.

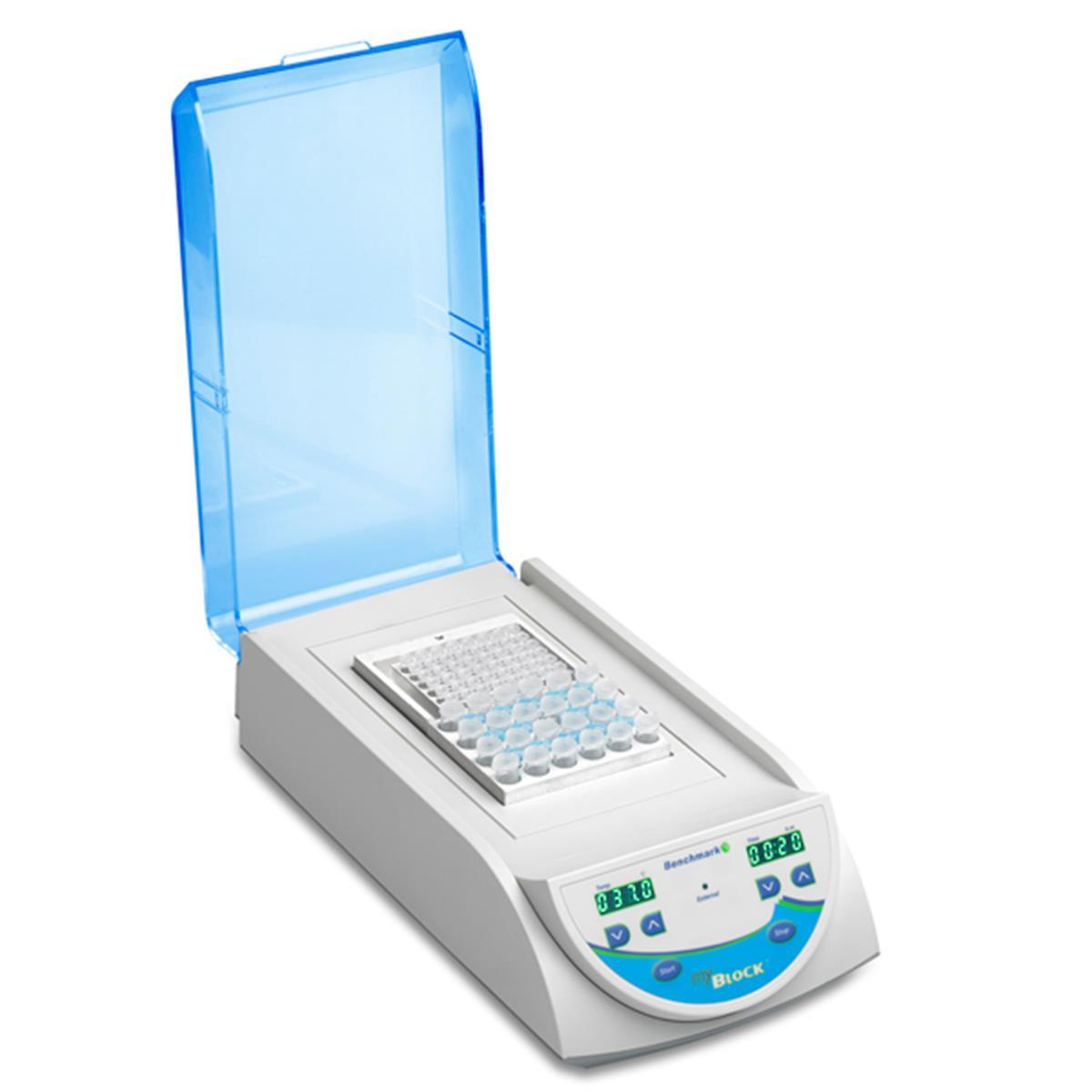

The myBlock’s transparent lid helps to promote better uniformity and minimize temperature stratification in the block by maintaining a warm air jacket layer. It also helps to reduce energy consumption by minimizing heat loss to the environment. The hinged lid can be flipped open (to the rear), or easily removed (lifted off) to
accommodate taller tubes.
Both the single and dual block models can be ordered in a configuration that includes our unique Quick-Flip™ blocks. These universal blocks accept tubes from 0.5 to 2.0ml and, with just a quick flip to the other side, accomodate 0.2ml tubes, PCR strips or (in the dual block model only) a PCR plate. Other blocks are available for tubes up to 50ml.
Specifications
|
Temperature Range:
|
Ambient +5° to 105°C
|
|
Temperature Accuracy:
|
+0.1°C
|
|
Temperature Uniformity:
|
± 0.3°C
|
|
Temperature Increments:
|
0.1°C
|
|
Timer:
|
1 min. to 48 hours / continuous
|
|
Dimensions (Single):
|
7 x 10 x 5 in. / 18 x 25 x 13 cm
|
|
Dimensions (Dual):
|
6.3 x 145 x 5 in. / 16 x 36.5 x 13 cm
|
|
Weight:
|
8 lbs / 10 lbs
|
|
Warranty:
|
2 years
|
|
Electrical:
|
120V or 230V 50-60Hz
|
Order Information
| Model | Cat No. | Description | Link |
 |
BM-BSH5002 | myBlock II - dual chamber, without blocks, 115V |  |
| BM-BSH5002-E | myBlock II - dual chamber, without blocks, 230V | |
|
 |
BM-BSH5002-2B | myBlock II, w/ 2 BSWCMB blocks for tubes (0.2-2.0mL, PCR strips & plates), 115V | |
| BM-BSH5002-2B-E | myBlock II, w/ 2 BSWCMB blocks for tubes (0.2-2.0mL, PCR strips & plates), 230V | |
Additional Products and Accessories
| Model | Cat No. | Description | Link |
 |
BM-BSH5001 | myBlock I - single chamber, without blocks, 115V | |
| BM-BSH5001-E | myBlock I - single chamber, without blocks, 230V | |
|
| BM-BSH5001-1B | myBlock I - with 1 BSWCMB block for tubes (0.2 to 2.0mL, PCR strips and plates), 115V | |
|
| BM-BSH5001-1B-E | myBlock I - with 1 BSWCMB block for tubes (0.2 to 2.0mL, PCR strips and plates), 230V | |
|
| BM-BSH-TP1 | External Temperature Probe | |
|
 |
BM-BSW01 | Blocks for IsoBlock™, myBlock, and Benchmark Dry Baths (All blocks can be found in BM-BSW01 page -->) |
|
