Fiber-Lite Illuminator(150W)-Stand

Cat No.: RWD-76301 Description

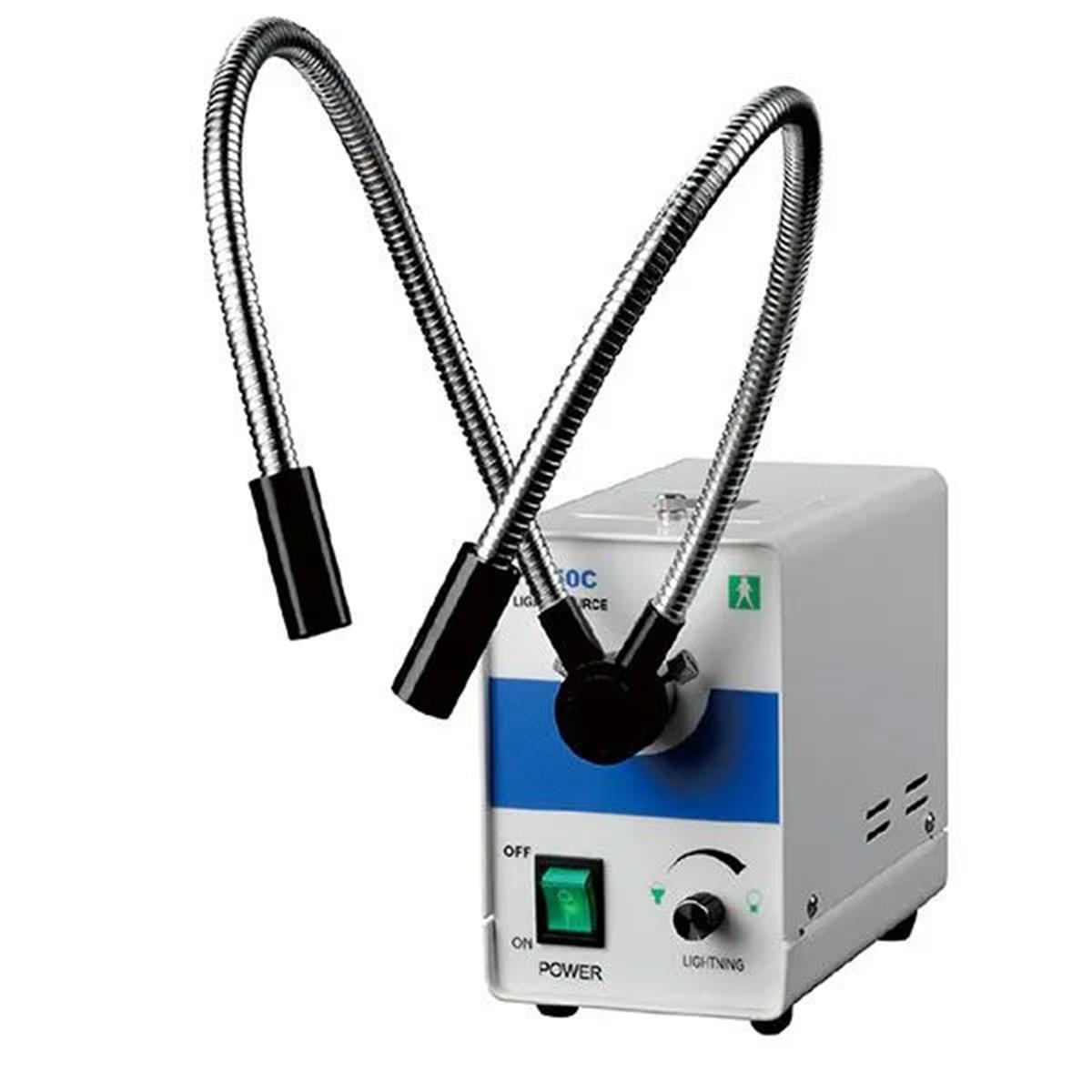

The Fiber-Lite Illuminator (150W) - Stand (Cat No.: RWD-76301) is a high-performance fiber optic cold light source engineered for laboratory and surgical microscopy applications. Featuring dual flexible fiber-optic gooseneck light guides, this illuminator delivers uniform, high-brightness coaxial lighting with stable voltage output, ensuring optimal visibility and minimal heat at the specimen plane.


Specifications

• Illumination System:
  Dual fiber-optic coaxial lighting for shadow-free, adjustable illumination. The system provides excellent field brightness, supporting clear visualization under a microscope or during animal surgery.

• Light Source:
  21V, 150W halogen lamp (domestic or PHIP21V), with a rated life of approximately 200 hours.
  Color temperature: 3200K (optional color correction filters available for 3000–6500K).

• Dimming and Control:
  Continuous (sustainable) dimming function for precise intensity adjustment to match experimental needs.

• Temperature and Safety:
  Air-cooled design maintains low operating temperature (recommended 25–30°C at the light guide tip), preventing vascular dilation or micro-flow changes in sensitive biological samples.

• Power and Dimensions:
  Input: AC 230V/50Hz
  Power consumption: 150W
  Dimensions: 280 × 100 × 165 mm
  Weight: ~3.0 kg.

• Construction:
  Compact, robust, and aesthetically designed housing for easy integration into laboratory environments.
  Safe and reliable bulb operation with stable output voltage.

• Applications:
  Ideal for animal surgery, microscope lighting, and any laboratory procedure requiring high-intensity, cold illumination with minimal impact on observation indicators.
