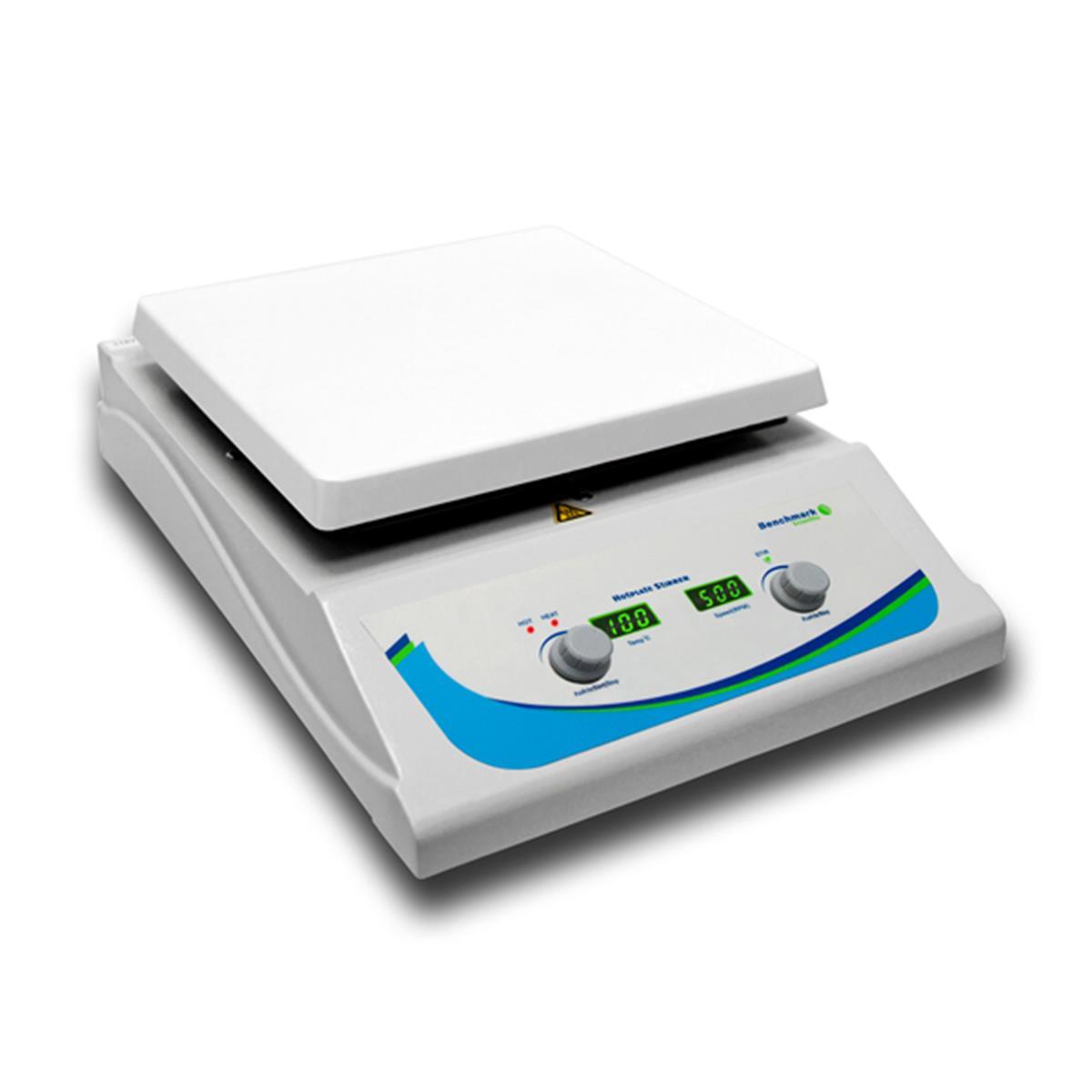

Digital Hotplate Magnetic Stirrer, 10 x 10 inch, 230V
DIGITAL HOTPLATE MAGNETIC STIRRER, 10X10"
- Large, 10 x 10-inch white ceramic top plate
- Maximum stirring capacity 15 L
- Digital speed and temperature control
- Safety LED indicates hot surface
- Control actual sample temperature (with optional probe)
Description
Benchmark Scientific Hotplates and Stirrers provide reliable performance and safe operation for everyday laboratory use. Like our popular 7 x 7-inch series, these hotplates/stirrers feature a durable, chemical resistant white ceramic top plate and advanced microprocessor controls. The constant monitoring system provides precise control of temperature with rapid heating and faster boiling times. In addition, the powerful motor drive system ensures efficient mixing in larger and more viscous samples.
Temperature and mixing speed can be viewed on the large digital display and a safety LED illuminates when the top plate temperature exceeds 50°C. An external temperature probe can also be used for applications that require precise control of sample temperature. The probe provides direct feedback to the microprocessor with constant monitoring and adjustments for maintaining the selected temperature in the sample within +/- 1°C. All models are compatible with borosilicate glass beakers and other vessels up to 20 liters (15 L maximum stirring volume). An optional clamp assembly (H3770-CS) is available for mounting thermometers, temperature probes, etc.
Specifications
|
Temp. Range
|
Ambient + 5 to 400°C
|
|
Speed Range
|
150 to 1500 rpm
|
|
Platform Dimensions
|
10 x 10 in./25.4 x 25.4 cm
|
|
Operating Temp. Range
|
+4 to +65°C
|
|
Dimensions (w x d x h)
|
11.6 x 16.7 x 4.5 in./29.5 x 42.4 x 11.4 cm
|
|
Weight
|
16.5 lbs./7.5 kg
|
|
Electrical
|
120 or 230V 50-60Hz; 750W
|
|
Warranty
|
2 years
|
Order Information
| Cat No. | Description | Link |
| BM-H3710-HS | Digital Hotplate Magnetic Stirrer, 10 x 10 inch, 115V |  |
| BM-H3710-HS-E | Digital Hotplate Magnetic Stirrer, 10 x 10 inch, 230V | |
Additional Products
| Model | Cat No. | Description | Link |
 |
BM-H3710-H | Digital Hotplate, 10 x 10 inch, 115V | |
| BM-H3710-H-E | Digital Hotplate, 10 x 10 inch, 230V | |
|
 |
BM-H3710-S | Magnetic Stirrer, 10 x 10 inch, 115V | |
| BM-H3710-S-E | Magnetic Stirrer, 10 x 10 inch, 230V | |
|
 |
BM-H3770-TP | Optional temperature probe (H3770 series) | |
 |
BM-H3770-ROD | Optional rod for hotplate/stirrer (H3770 series) | |
 |
BM-H3770-CS | Clamp set for H3770, includes rod and clamp | |
 |
BM-H3770-CSTF | Clamp set for H3770, chemically resistant/inert teflon, includes rod & clamp | |
