Cell Culture Plate Inserts

Product#: CellCulturePlateInsert

$0.00

Select CellCulturePlateInsert

see below the table

Availability:

Ships in 24 hours

Description
Reviews (0)

This page is not a product page, please click each product pages with "Go" button.

To order, see the below table.

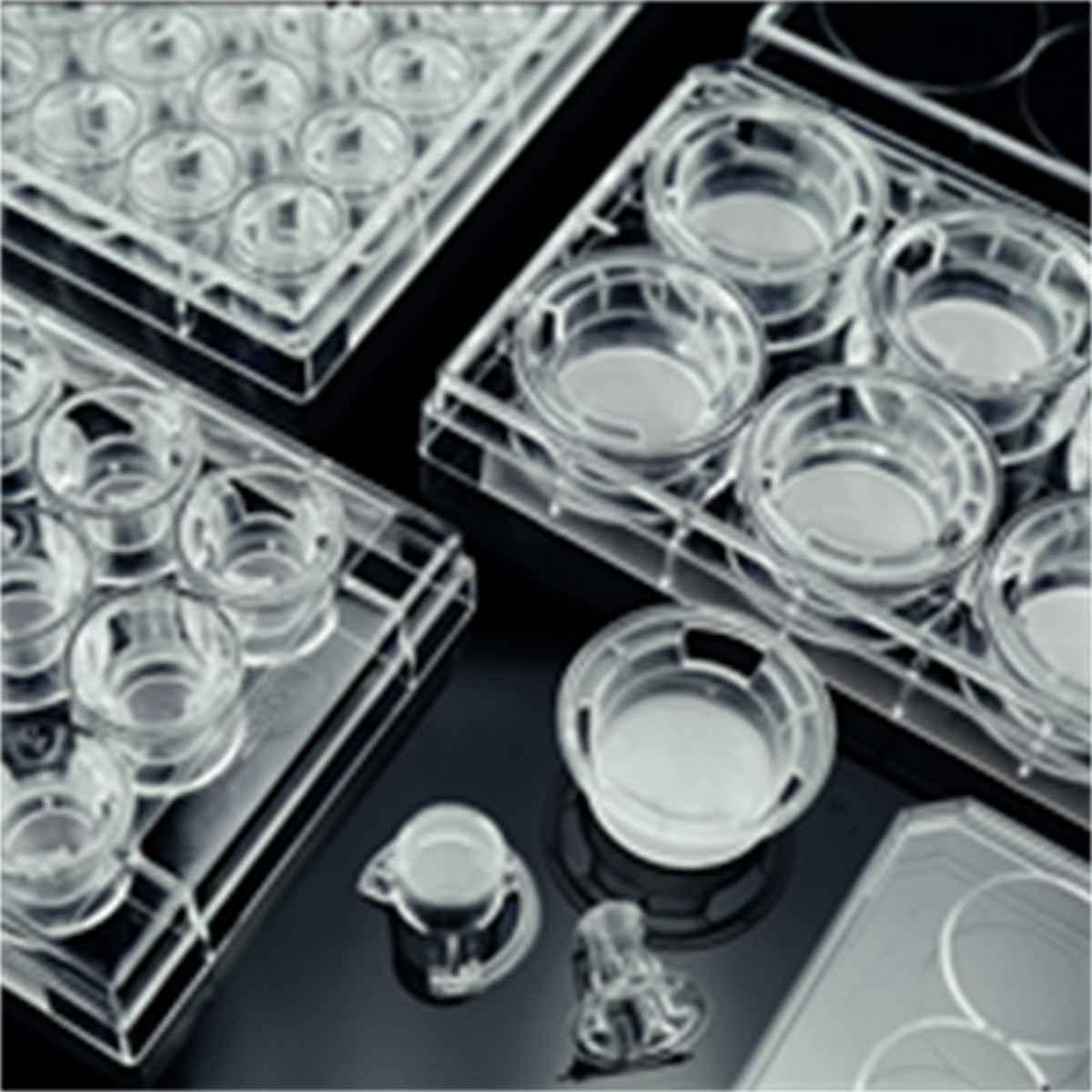

Cell Culture Plate Inserts

Application：

Permeable supports, also known as cell culture inserts, are an essential tool for the study of both anchorage-dependent andindependent cell lines.
This product produce a cell culture environment that closely resembles an in vivo state. Allow polarized cells to carry outmetabolic activities in a more natural manner because the cells feed both apically and basolaterally.

Application: co-culture, epithelial cell polarity, migration, invasion, transport and permeability studies.

Product Features：

Innovative hanging design facilitates pipetting.
Supplied in multiple well plates: 6-well, 12-well, 24well.
PC Membrane: low adsorption rate, reducing the loss of small molecular proteins and other compounds
Transparent PET inserts permit sufficient optical transparency for visualization of cell outlines by phase contrast microscopy.
Transparent PET Membrane is easy to observe.
The PC membrane is not easy to be torn or curled, and it is easy to operate when taking out the chamber.

·Compatible with most solvents used for fixing and dyeing.

Packing specification	Inserts/plate	Insert Diameter(mm)	Well Volume(ml)	Insert Volume(ml)	Insert Membrane Growth Area（cm²）
6	6 inserts/6well	24	2.6	1.5	4.67
12	12 inserts/6well	12	1.5	0.5	1.12
24	12 inserts/6well	6.5	0.6	0.1	0.33
100mm dish	1 inserts/6well	75	13	9	44

Pore Size(um)	Membrane Density（well/cm²）
0.4	1x10^8
3.0	2x10^6
5.0	4x10^5
8.0	1x10^5

Cell Culture Insert, PC Membrane

Individually packaged in peelable Tyvek film and Blister, sterile.

TC Treated
Cat No.	Description	Insert Diameter (mm)	Well Volume (mL)	Membrane Density	Pore Size (μm)	Membrane Transparence	Quantity	Buy
NST-723101	6 Cell Culture Inserts + 6 Well Plate	24	2.6	1 x 10⁸	0.4	Opaque	6/pk, 24/cs
NST-723001				2 x 10⁶	3.0	Translucent	6/pk, 24/cs
NST-723301				1 x 10⁵	8.0	Translucent	6/pk, 24/cs
NST-724101	12 Cell Culture Inserts + 12 Well Plate	12	1.5	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-724001				2 x 10⁶	3.0	Translucent	12/pk, 48/cs
NST-724201				4 x 10⁵	5.0	Translucent	12/pk, 48/cs
NST-724301				1 x 10⁵	8.0	Translucent	12/pk, 48/cs
NST-725101	12 Cell Culture Inserts + 24 Well Plate	6.5	0.6	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-725001				2 x 10⁶	3.0	Translucent	12/pk, 48/cs
NST-725201				4 x 10⁵	5.0	Translucent	12/pk, 48/cs
NST-725301				1 x 10⁵	8.0	Translucent	12/pk, 48/cs
NST-726001	100 mm Cell Culture Insert-Dish	75	13	-	3.0	Translucent	1/pk, 10/cs

Non-TC Treated
Cat No.	Description	Insert Diameter (mm)	Well Volume (mL)	Membrane Density	Pore Size (μm)	Membrane Transparence	Quantity	Buy
NST-723111	6 Cell Culture Inserts + 6 Well Plate	24	2.6	1 x 10⁸	0.4	Opaque	6/pk, 24/cs
NST-723011				2 x 10⁶	3.0	Translucent	6/pk, 24/cs
NST-723311				1 x 10⁵	8.0	Translucent	6/pk, 24/cs
NST-724111	12 Cell Culture Inserts + 12 Well Plate	12	1.5	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-724011				2 x 10⁶	3.0	Translucent	12/pk, 48/cs
NST-724211				4 x 10⁵	5.0	Translucent	12/pk, 48/cs
NST-724311				1 x 10⁵	8.0	Translucent	12/pk, 48/cs
NST-725111	12 Cell Culture Inserts + 24 Well Plate	6.5	0.6	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-725011				2 x 10⁶	3.0	Translucent	12/pk, 48/cs
NST-725211				4 x 10⁵	5.0	Translucent	12/pk, 48/cs
NST-725311				1 x 10⁵	8.0	Translucent	12/pk, 48/cs

Cell Culture Insert, PET Membrane

Individually packaged in peelable Tyvek film and Blister, sterile.

TC Treated
Cat No.	Description	Insert Diameter (mm)	Well Volume (mL)	Membrane Density	Pore Size (μm)	Membrane Transparence	Quantity	Buy
NST-723121	6 Cell Culture Inserts + 6 Well Plate	24	2.6	1 x 10⁸	0.4	Opaque	6/pk, 24/cs
NST-723421				2 x 10⁷	1.0	Opaque	6/pk, 24/cs
NST-723021				2 x 10⁶	3.0	Translucent	6/pk, 24/cs
NST-723321				1 x 10⁵	8.0	Transparent	6/pk, 24/cs
NST-724121	12 Cell Culture Inserts + 12 Well Plate	12	1.5	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
Nst-724421				2 x 10⁷	1.0	Opaque	12/pk, 48/cs
NST-724021				2 x 10⁶	3.0	Translucent	12/pk, 48/cs
NST-724321				1 x 10⁵	8.0	Transparent	12/pk, 48/cs
NST-725121	12 Cell Culture Inserts + 24 Well Plate	6.5	0.6	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-725421				2 x 10⁷	1.0	Opaque	12/pk, 48/cs
NST-725021				2 x 10⁶	3.0	Translucent	12/pk, 48/cs

Non-TC Treated
Cat No.	Description	Insert Diameter (mm)	Well Volume (mL)	Membrane Density	Pore Size (μm)	Membrane Transparence	Quantity	Buy
NST-723131	6 Cell Culture Inserts + 6 Well Plate	24	2.6	1 x 10⁸	0.4	Opaque	6/pk, 24/cs
NST-723431				2 x 10⁷	1.0	Opaque	6/pk, 24/cs
NST-723031				2 x 10⁶	3.0	Translucent	6/pk, 24/cs
Nst-723331				1 x 10⁵	8.0	Transparent	6/pk, 24/cs
NST-724131	12 Cell Culture Inserts + 12 Well Plate	12	1.5	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-724431				2 x 10⁷	1.0	Opaque	12/pk, 48/cs
NST-724031				2 x 10⁶	3.0	Translucent	12/pk, 48/cs
NST-724331				1 x 10⁵	8.0	Transparent	12/pk, 48/cs
NST-725131	12 Cell Culture Inserts + 24 Well Plate	6.5	0.6	1 x 10⁸	0.4	Opaque	12/pk, 48/cs
NST-725431				2 x 10⁷	1.0	Opaque	12/pk, 48/cs
NST-725031				2 x 10⁶	3.0	Translucent	12/pk, 48/cs

Other brands

SPL Insert™ Hanging
Cat.No.	Type/Sterile	Membrane	Membrane Pore Size(μm)	Membrane Diameter(mm)	Growth Area(cm2)	Working Volume (ml)	Optical Properties	Packaging	info.
PL-35006	6 Inserts / 6 Well Plate/Sterile	PC	0.4	24	4.52	1.5~2.5	Opaque	6/24
PL-36006	6 Inserts / 6 Well Plate/Sterile	PET	0.4	24	4.52	1.5~2.5	Opaque	6/24
