Agate Mortar and Pestle (Shallow Form), 180 x 150 x 50 x 75mm

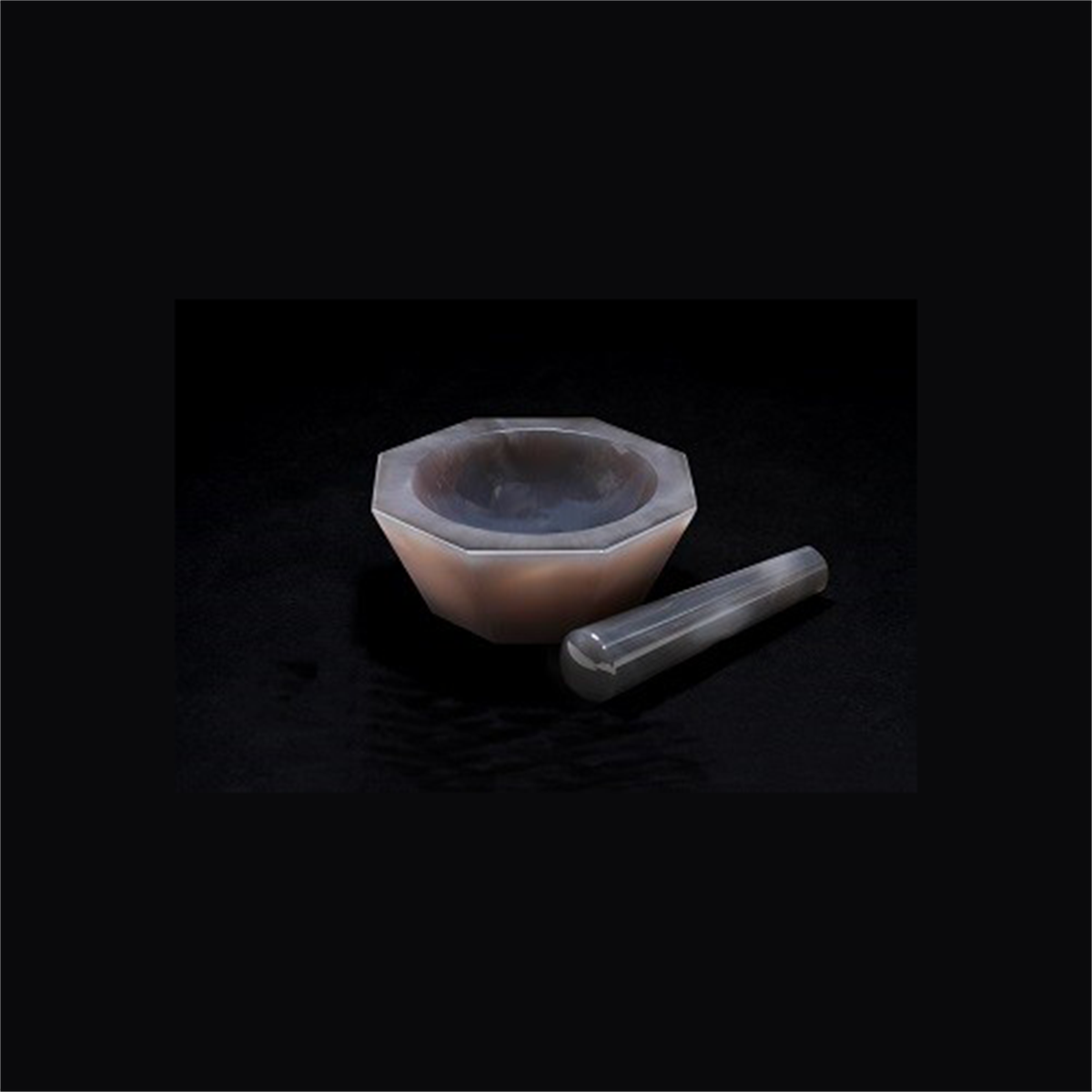

Agate Mortar and Pestle (Shallow Form)
Cat.No. See table below
Size See table below
Store Room temperature.
Description
Agate mortar is cut from rough stone. We mainly manufacture two types, shallow and deep types. As our final finish, we have our own internal polishing finish. After the final process, it will be washed and shipped. Our technology is to bring out beautiful luster peculiar to agate by internal polishing. In addition , we also perform internal slit processing (0.1 to 0.2 mm). Applying a fine slit to the inner wall of the mortar shortens the grinding time. Slit processing is our unique technology.
These mortars are carefully manufactured and treated with original polish finishing. This special polish finishing helps increase the collection rate. All products are made in Japan.
Repairs: Remachining, repolishing process.
Mortars come in: Agate, Quartz glass, Sapphire glass
Materials: High quality agate ore from Brazil, High purity quartz glass, High purity sapphire glass
For customized products, please contact us at info@diagnocine.com
Features
- Mohs hardness : 6.5 - 7
- Good resistance to attrition
- Good resistance to acid
- Good resistance to pressure
- Heatproof Temperature : 1000℃
- "With slit" type increases efficiency of grinding samples and shortens grinding time.
| Product Name | Product # | Size (Outer Dia. x Inner Dia. x Depth x Height) | Quick Link | |
| Agate Mortar & Pestle | Shallow Form | FNK-KA40-S | 40 x 35 x 10 x 20 mm |  |
| FNK-KA50-S | 50 x 40 x 11 x 22 mm | |
||
| FNK-KA60-S | 60 x 50 x 12 x 25 mm | |
||
| FNK-KA70-S | 70 x 55 x 15 x 30 mm | |
||
| FNK-KA75-S | 75 x 60 x 17 x 32 mm | |
||
| FNK-KA80-S | 80 x 65 x 20 x 34 mm | |
||
| FNK-KA90-S | 90 x 70 x 23 x 37 mm | |
||
| FNK-KA95-S | 95 x 75 x 24 x 38 mm | |
||
| FNK-KA100-S | 100 x 80 x 25 x 40 mm | |
||
| FNK-KA105-S | 105 x 85 x 26 x 41 mm | |
||
| FNK-KA110-S | 110 x 90 x 27 x 45 mm | |
||
| FNK-KA120-S | 120 x 100 x 30 x 50 mm | |
||
| FNK-KA130-S | 130 x 110 x 33 x 53 mm | |
||
| FNK-KA140-S | 140 x 115 x 35 x 55 mm | |
||
| FNK-KA150-S | 150 x 120 x 40 x 60 mm | |
||
| FNK-KA160-S | 160 x 130 x 45 x 65 mm | |
||
| FNK-KA170-S | 170 x 140 x 50 x 70 mm | |
||
| FNK-KA180-S | 180 x 150 x 50 x 75 mm | |
||
| Deep Form | FNK-KA50-D | 50 x 40 x 18 x 35 mm | |
|
| FNK-KA60-D | 60 x 50 x 20 x 40 mm | |
||
| FNK-KA70-D | 70 x 55 x 25 x 45 mm | |
||
| FNK-KA80-D | 80 x 65 x 30 x 50 mm | |
||
| FNK-KA90-D | 90 x 70 x 33 x 53 mm | |
||
| FNK-KA100-D | 100 x 80 x 35 x 58 mm | |
||
| FNK-KA110-D | 110 x 90 x 38 x 63 mm | |
||
| FNK-KA120-D | 120 x 100 x 43 x 70 mm | |
||
| FNK-KA130-D | 130 x 110 x 45 x 72 mm | |
||
| FNK-KA140-D | 140 x 115 x 50 x 75 mm | |
||
| FNK-KA150-D | 150 x 120 x 55 x 78 mm | |
||

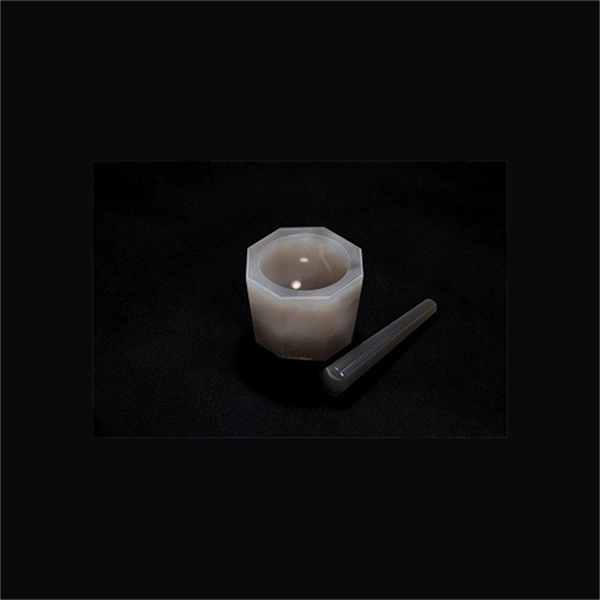

| Special Deep Form | FNK-KA70-TD | 70 x 50 x 40 x 60 mm | |
|
| FNK-KA80-TD | 80 x 65 x 45 x 65 mm | |
||
| FNK-KA90-TD | 90 x 70 x 50 x 70 mm | |
||
| FNK-KA100-TD | 100 x 80 x 55 x 75 mm | |
||
| FNK-KA110-TD | 110 x 90 x 60 x 80 mm | |
||
| FNK-KA120-TD | 120 x 100 x 75 x 95 mm | |
||
| With Slits | FNK-KA60-U | 60 x 50 x 20 x 40 mm | |
|
| FNK-KA70-U | 70 x 55 x 25 x 45 mm | |
||
| FNK-KA80-U | 80 x 65 x 30 x 50 mm | |
||
| FNK-KA90-U | 90 x 70 x 33 x 53 mm | |
||
| FNK-KA100-U | 100 x 80 x 35 x 58 mm | |
||
| FNK-KA110-U | 110 x 90 x 38 x 63 mm | |
||
| FNK-KA120-U | 120 x 100 x 43 x 70 mm | |
||

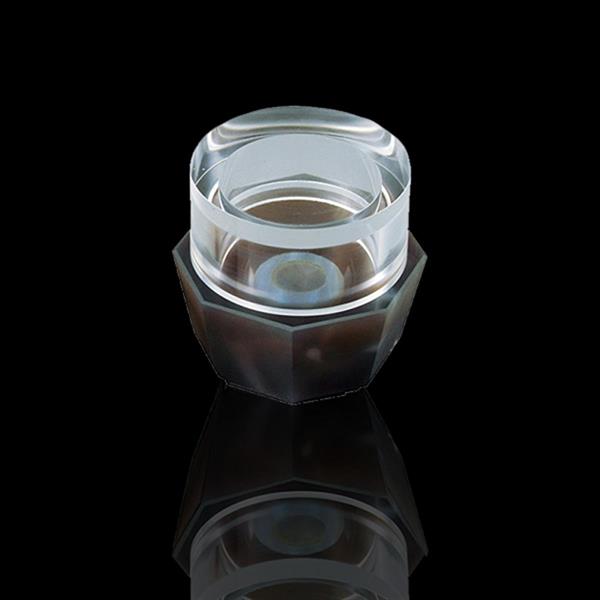

| Magnet Type | FNK-KA-M5G | 100 x 80 x 35 x 60 mm | |
|
| FNK-KA-M10G | 110 x 90 x 38 x 63 mm | |
||
| FNK-KA-M15G | 130 x 110 x 45 x 70 mm | |
||
| FNK-KA-M20G | 150 x 120 x 55 x 80 mm | |
||
| Agate Grinding Mill | Single Ball (Standard) | FNK-KAM-0 | 34 x 24 x 55 x 75 mm | |
| Single Ball (Freeze-Crush Mill) | FNK-KAM-1 | 52 x 24 x 55 x 95 mm | |
|
| Sapphire Glass Crucible | With Lid | FNK-KS60-H (lid) | 60 x 45 x 40 x 60 mm | |
| Without Lid | FNK-KS60-R (no lid) | 60 x 45 x 40 x 50 mm | |
|
| Sapphire Glass Mortar and Pestle | FNK-KS60-S | 60 x 50 x 20 x 35 mm | |
|
| FNK-KS80-S | 80 x 60 x 30 x 45 mm | |
||
| FNK-KS100-S | 100 x 80 x 35 x 55 mm | |
||
| Fused Quartz Mortar and Pestle | FNK-KQ60-S | 60 x 50 x 20 x 35 mm | |
|
| FNK-KQ70-S | 70 x 55 x 25 x 40 mm | |
||
| FNK-KQ80-S | 80 x 65 x 30 x 45 mm | |
||
| FNK-KQ90-S | 90 x 70 x 33 x 50 mm | |
||
| FNK-KQ100-S | 100 x 80 x 35 x 55 mm | |
||
| FNK-KQ110-S | 110 x 90 x 38 x 60 mm | |
||
| FNK-KQ120-S | 120 x 100 x 42 x 65 mm | |
||
