iP-TEC® Phase Change Material+24
iP-TEC® Phase Change Material+24
Cat. No. FNK-28483
Size 1 Piece
Description
- It is a highly functional type of heat storage material that maintains a temperature of 24-25℃ for a long time.
- It can be used when you want to transport the product in the same temperature range as the environmental temperature in a cell conditioning room (CPC) or medical site.

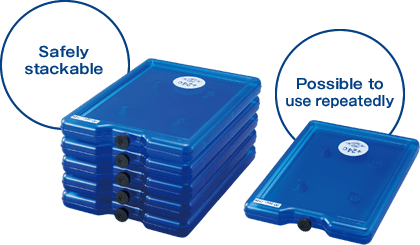

- It is a heat storage material that can be used repeatedly.

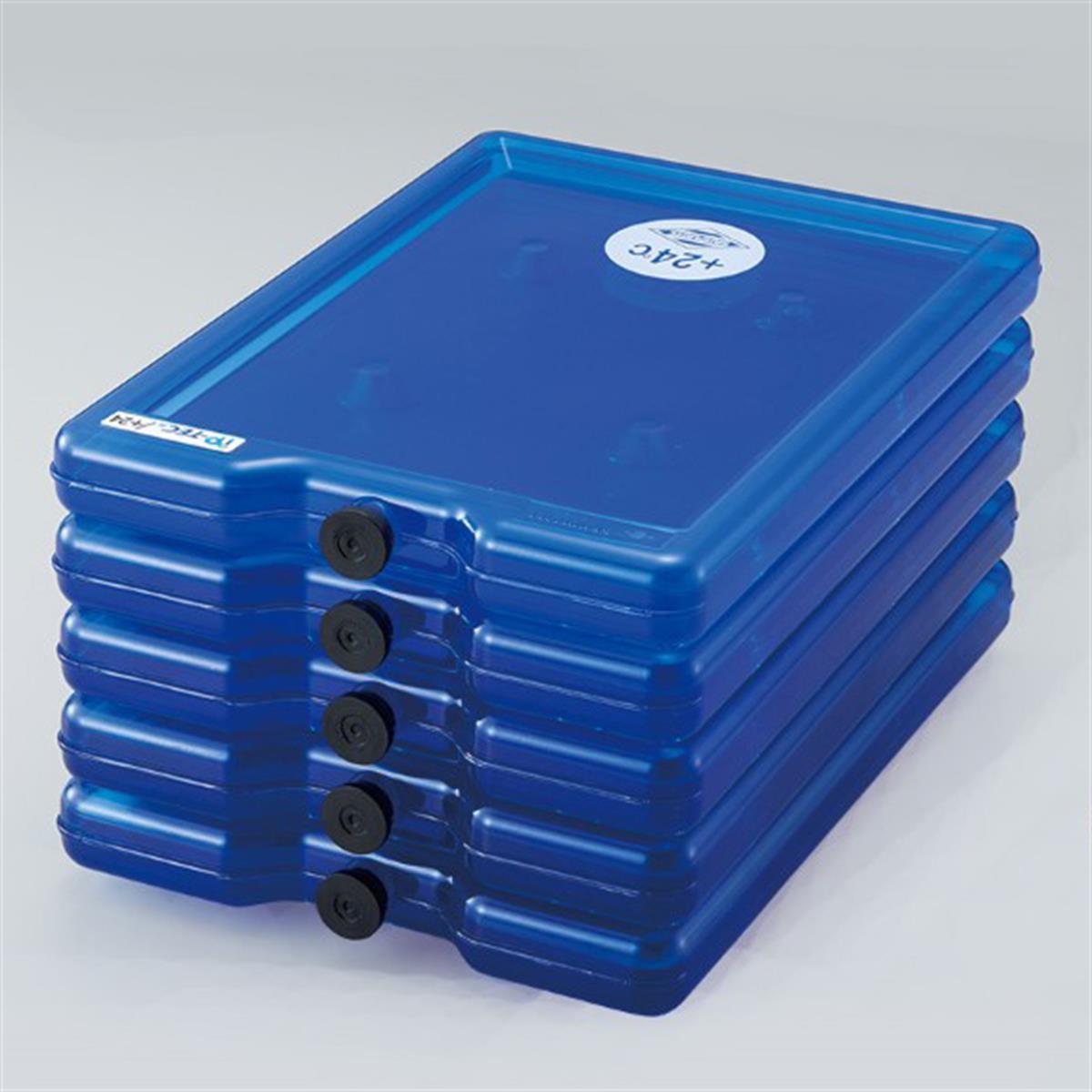

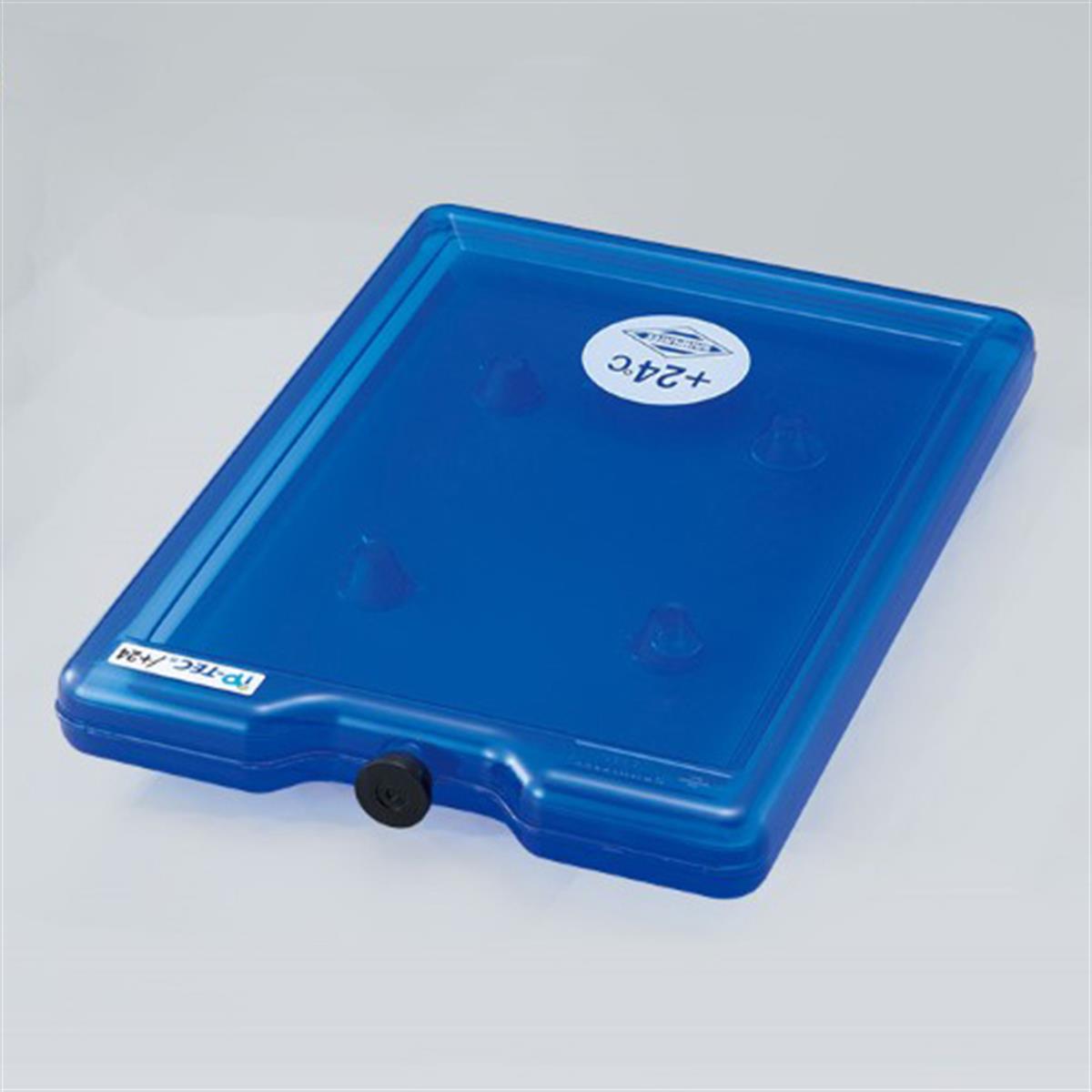

- The container is tray-shaped and can be used as a heat retention tray for plates, etc.
- Alcohol spray OK
- Container Material: PVC
- On land: Designated combustible material under the Fire Service Law
- Marine: Non-hazardous material under the Ship Safety Law
- Air: Non-hazardous material under the Civil Aeronautics Law
- For more information about iP-TEC® series, please refer to the feature
Temperature control method depends on season(environment temperature at transportation)
- Please refer following table for suitable temperature and time. (Please control temperature than prescribed time as much as possible)
- Please use thermostatic device, hot storage, cooling box etc., possible to temperature control device. Possible to use indoor air conditioner.
- Upon temperature control, please do not pile heat storage material and arrange with capacity.
|
Season/ |
Summer/ |
Winter/ |
Spring, Autumn/ |
|
Purpose |
Cooling |
Keep warm |
Cooling/Keep Warm |
|
Temperature Control, |
22～23 |
26～27 |
24～24.5 |
|
Temperature Control, hours |
6 |
8 |
6 |
|
Condition at the time of |
Solid |
Liquid |
Mixture of Solid and Liquid |
|
＊In any case, please put briefly under room temperature after confirmation surface temperature on around 24 - 25 degrees centigrade. |
＊In case controlled surface temperature around below prescribed temperature, like heat storage material temperature on the morrow of temperature around 24 - 25 degrees centigrade, temperature in the box have possibility of temperature reduction. →In such case, please put under room temperature condition on around one hour. |
＊In case controlled surface temperature around above prescribed temperature, like heat storage material temperature on the morrow of temperature around 24 - 25 degrees centigrade, temperature in the box have possibility of temperature rise. →In such case, please put under room temperature condition on around one hour. |
|
- Specifications
Catalog No. Size Main body O.D（mm) Material FNK-28483 1 PC 230×162×29H PVC/OTHER
