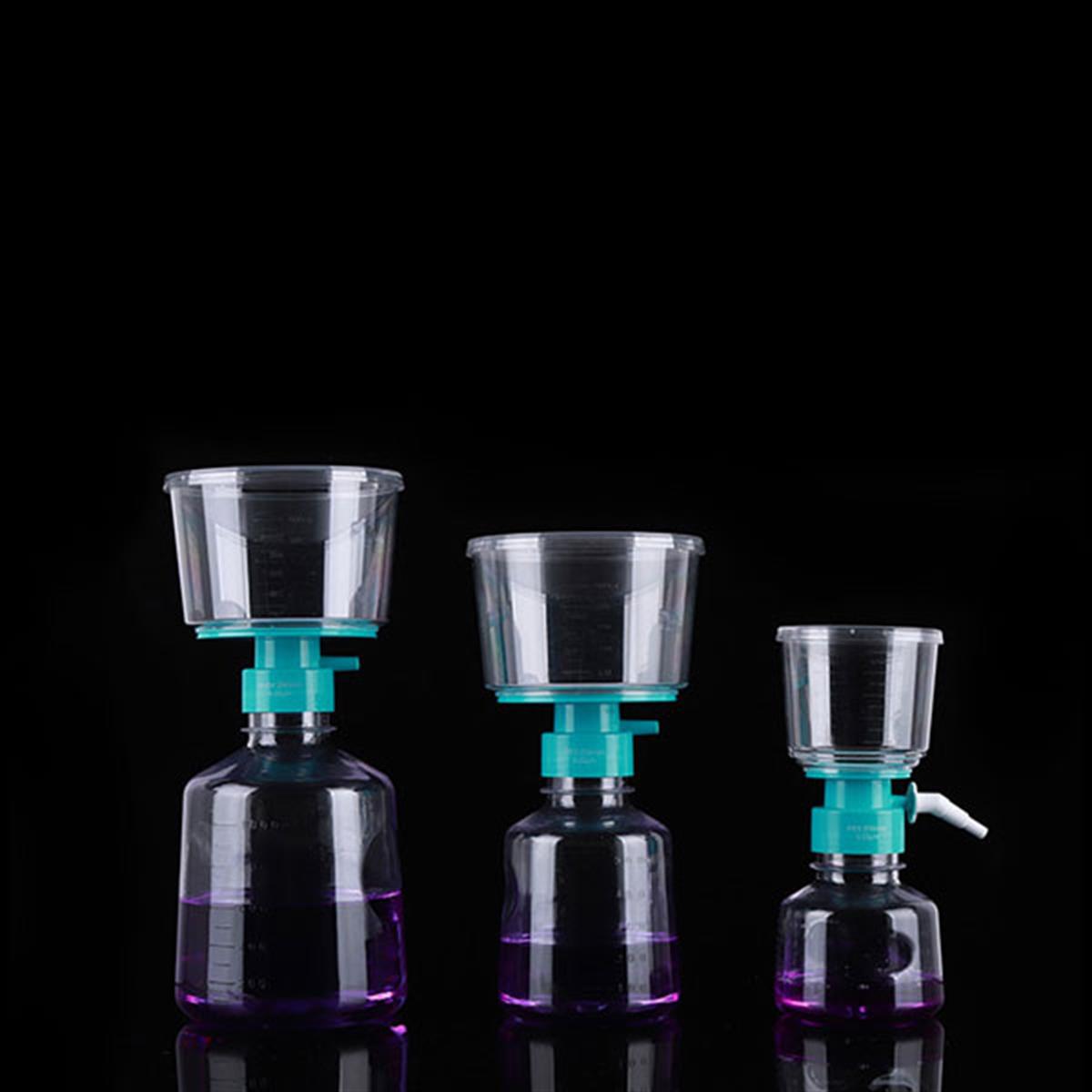

Vacuum Filtration Systems(Product Description Page only)
Select NST-Vacuum-Filtration-Systems
- see table below
Vacuum Filtration Systems(Product Description Page only)
Cat. No.: NST-Vacuum-Filtration-Systems: See below
* This page is only for the Description "Vacuum Filtration Systems" products.
* Please, check the below table, if you need to, then click the Go button.
Description
Features
- High flow rates and throughput;
- Low protein binding and low chemical extractable;
- Filtration membrane: PES* or PVDF*;
- Pore size: 0.10μm, 0.22μm or 0.45μm
- E-beam Sterile
- DNase-free, RNase-free
- Non-pyrogenic, non-endotoxin and surfactant free
- SAL level 10-6
- Volume (mL): 50 mL, 150 mL, 250mL, 500 mL, or 1000 mL
PES vs PVDF
| PVDF (polyvinylidene fluoride) and PES (polyethersulfone) are types of filter membranes. They have similar molecular weight cutoffs and morphologies. However, they have different properties, including: |
|
| Oxidant resistance: | PVDF membranes have higher oxidant resistance than PES membranes. |
| Mechanical strength: | PVDF membranes have higher mechanical strength than PES membranes. |
| Hydrophobicity: | PVDF membranes are more hydrophobic than PES membranes. |
| Maximum flow rate: | PES membranes have roughly three times the maximum flow rate of PVDF membranes. |
| Fouling/removal efficiency: | PVDF membranes have higher fouling/removal efficiency than PES membranes. |
| Clogging: | PES membranes clog more slowly than PVDF membranes. |
*Shipping information : This items are over size shipment items
| Image | CAT # | Volume (mL) | Membrane | Pore Density (μm) | Sterile | Packing Unit | Link |
 |

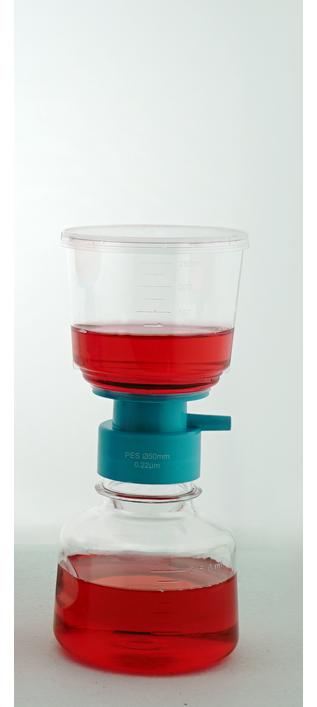

NST-342001 | 250 | PES | 0.22 | Yes | 1/pk, 12/cs |  |
| NST-342101 | 250 | PVDF | 0.22 | Yes | 1/pk, 12/cs | |
|
 |

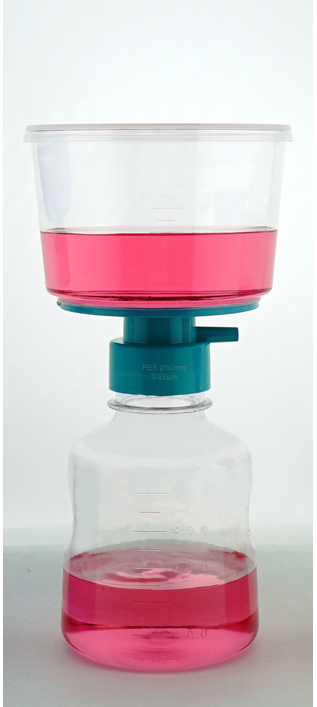

NST-343001 | 500 | PES | 0.22 | Yes | 1/pk, 12/cs | |
| NST-343101 | 500 | PVDF | 0.22 | Yes | 1/pk, 12/cs | |
|
 |
NST-344001 | 1000 | PES | 0.22 | Yes | 1/pk, 12/cs | |
| NST-344101 | 1000 | PVDF | 0.22 | Yes | 1/pk, 12/cs | |
| Image | CAT # | Volume (mL) | Membrane | Pore Density (μm) | Sterile | Packing Unit | Link |
 |
NST-342011 | 250 | PES | 0.22 | Yes | 1/pk, 24/cs | |
| NST-342111 | 250 | PVDF | 0.22 | Yes | 1/pk, 24/cs | |
|
| NST-343011 | 500 | PES | 0.22 | Yes | 1/pk, 24/cs | |
|
| NST-343111 | 500 | PVDF | 0.22 | Yes | 1/pk, 24/cs | |
|
 |
NST-342021 | 250 | Yes | 1/pk, 24/cs | |
||
| NST-343021 | 500 | Yes | 1/pk, 24/cs | |
|||
| NST-344021 | 1000 | Yes | 1/pk, 12/cs | |
|
Product Parameters |
||||||
|
Specification(ml) |
Membrane Dia(mm) |
Capacity(ml) |
Max.Temp (0C) |
Neck Dia(mm) |
Height (mm) |
Material of Neck |
|
250 |
50 |
250 |
45 |
45 |
198 |
ABS |
|
500 |
90 |
500 |
45 |
45 |
247 |
ABS |
|
1000 |
90 |
1000 |
45 |
45 |
280 |
ABS |
|
|
|
|
|
||||||||
|
|

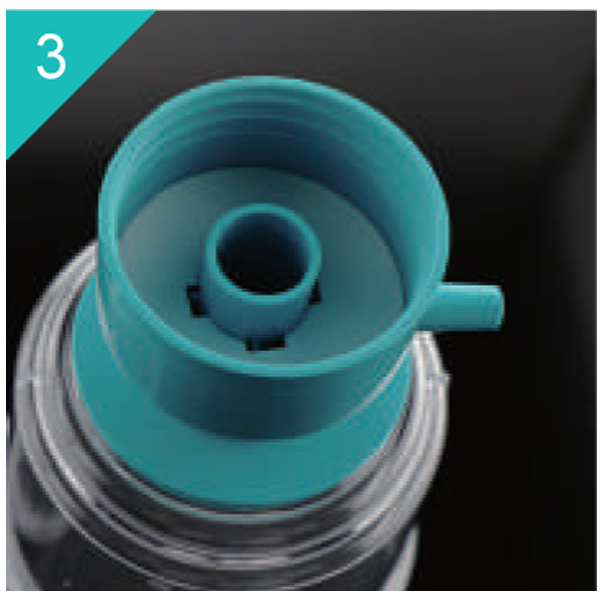

Bottle top filters have a neck size 45 mm and fit most 45 mm neck sized plastic and glass media storage bottles. |
|

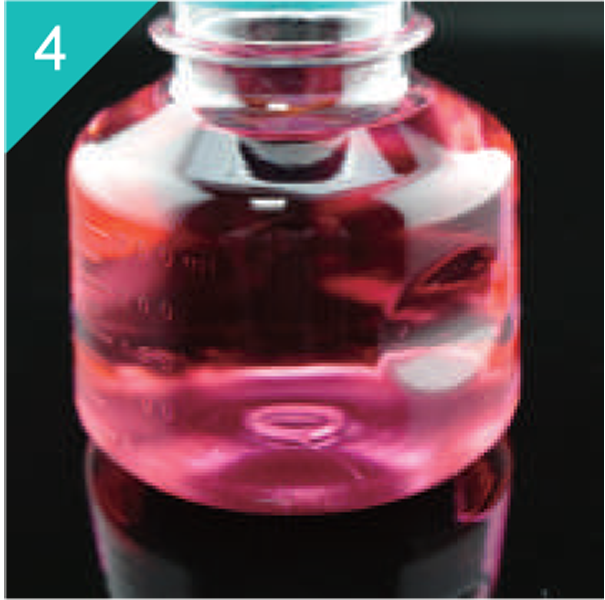

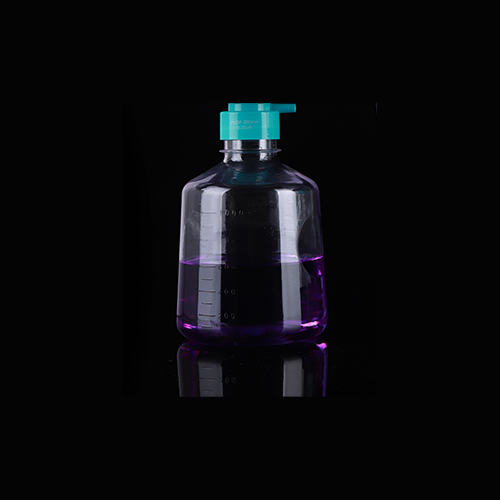

Easy grip style receiving bottles can also be used as storage bottles. |
||||||||
|
|

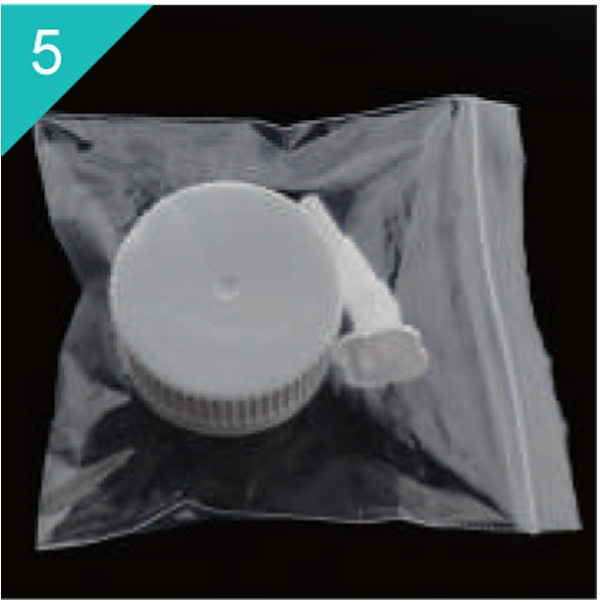

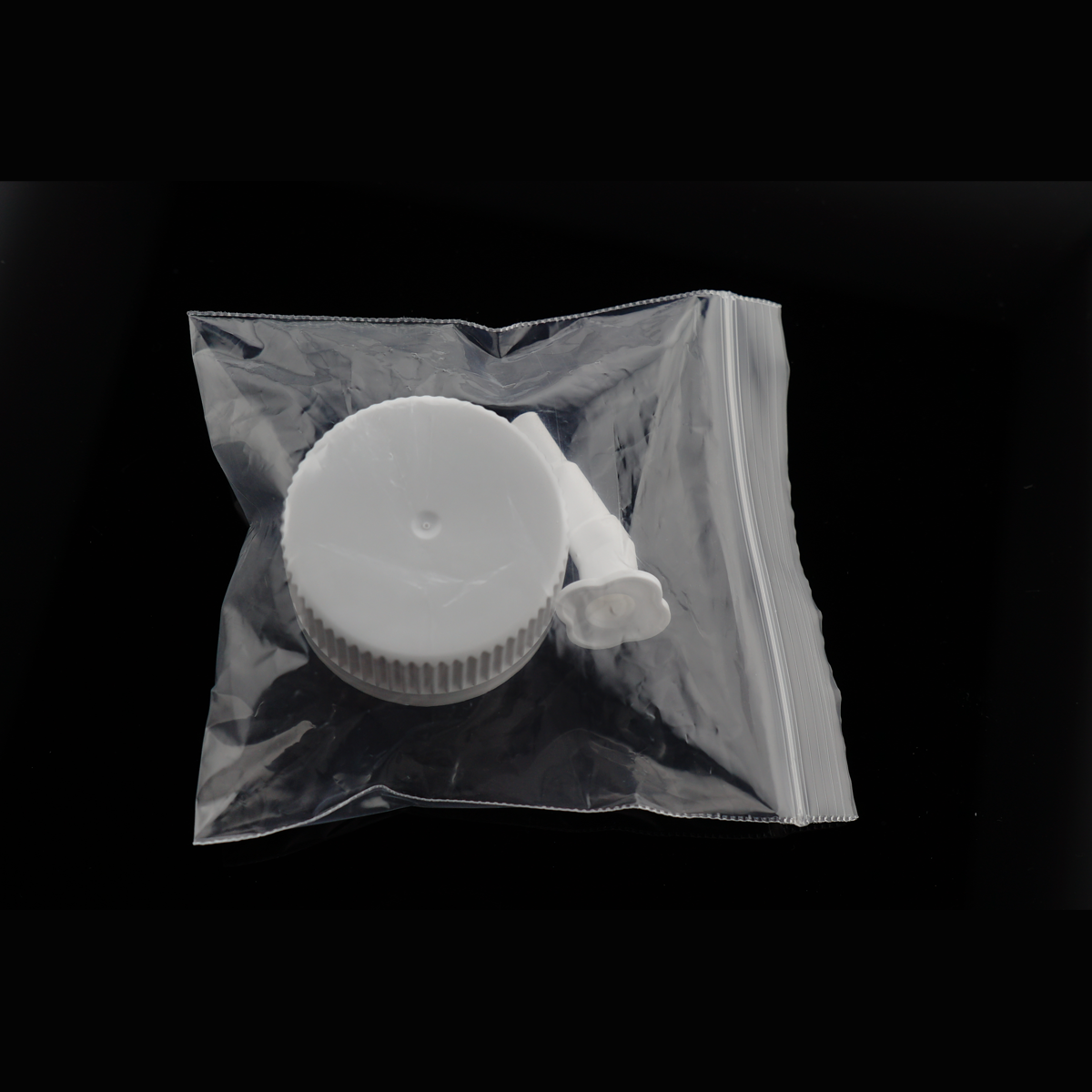

Cap of receiving bottle is individually packaged to prevent contamination. |
|
|
|
Brand |
NEST |
C brand |
TF brand |
|
Hydrophilic |
Instantaneous wettability |
||
|
Thickness (μm) |
136-143 |
149-155 |
173-176 |
|

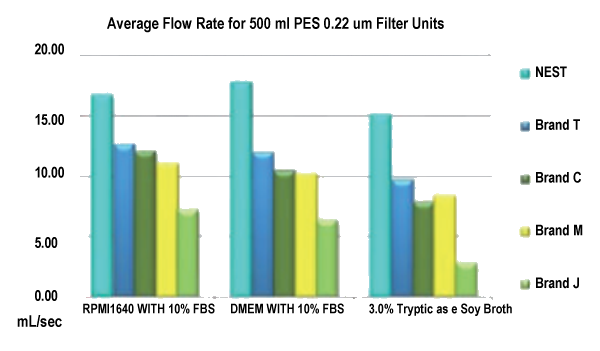

Flow rate (s) Φ47mm/+0.03MPa/50mL |
10.32, 9.94 |
11.91, 11.42 |
9.09, 9.21 |
|
Bubble point (kPa) |
- |
- |
- |
|
IPA bubble point (kPa) |
162-188 |
136-155 |
174-190 |
|
BSA binding μg/cm2 |
4.06 |
4.06 |
11.59 |
PVDF membrane
|
Brand |
NEST |
M brand (U.S.A) |
|
Type |
PVDF 0.22 |
Durapore 0.22 |
|
Thickness (μm) |
126 |
106 |
|
Wettability (Water) |
Pass |
Pass |
|
Wettability (Saturated NaCl Solution) |
Pass |
NG |
|
Flow rate +0.03MPa/50mL |
55 |
70.34??71.00 |
|
Bubble point (kPa) |
>350 |
405 |
|
BSA binding μg/cm2 |
13.5 |
11.82 |

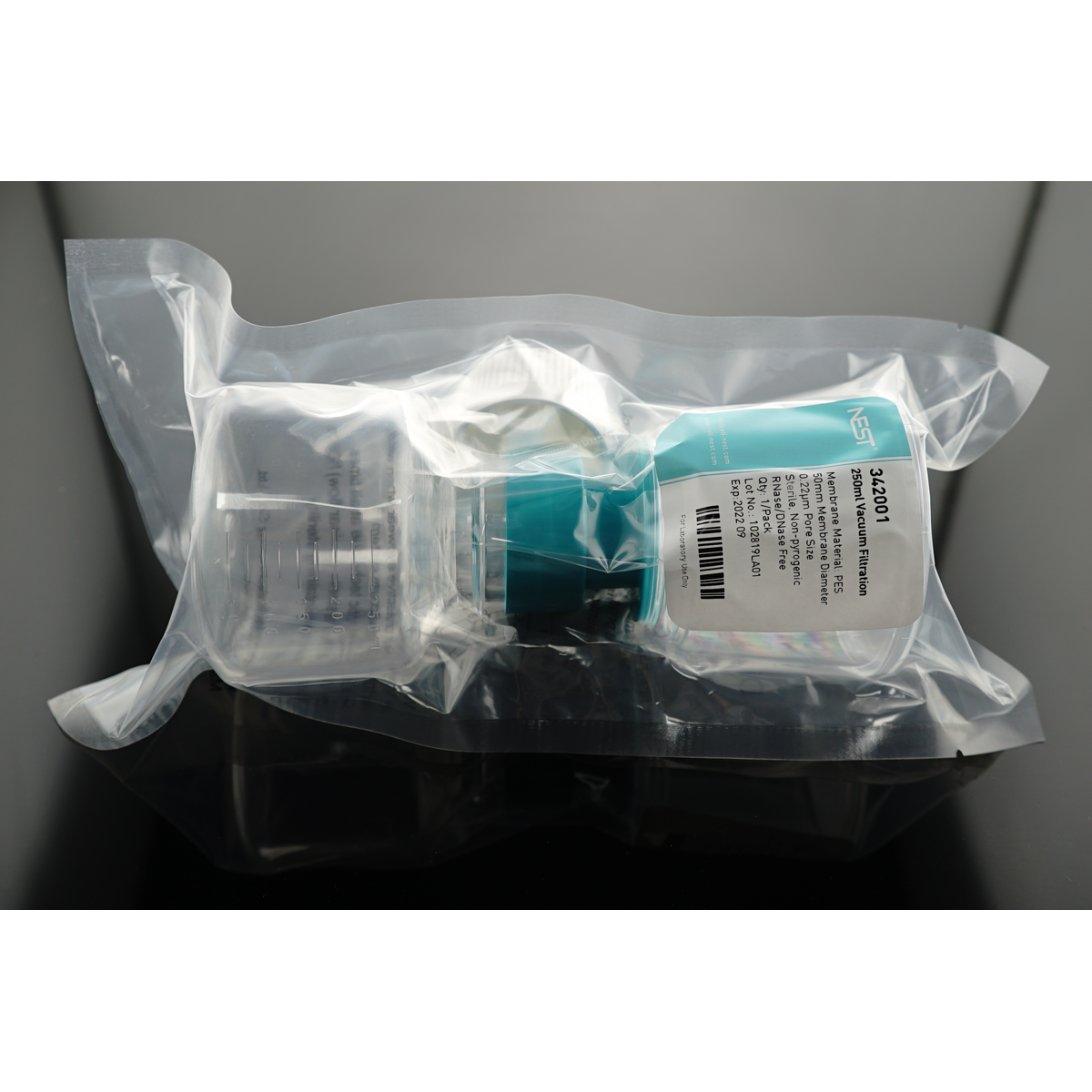

Packing Information
- Thick PE bag packing;
- Lot number is printed on the sticker for tracking;
- Strong paper carton ensures safety of goods during transportation.
