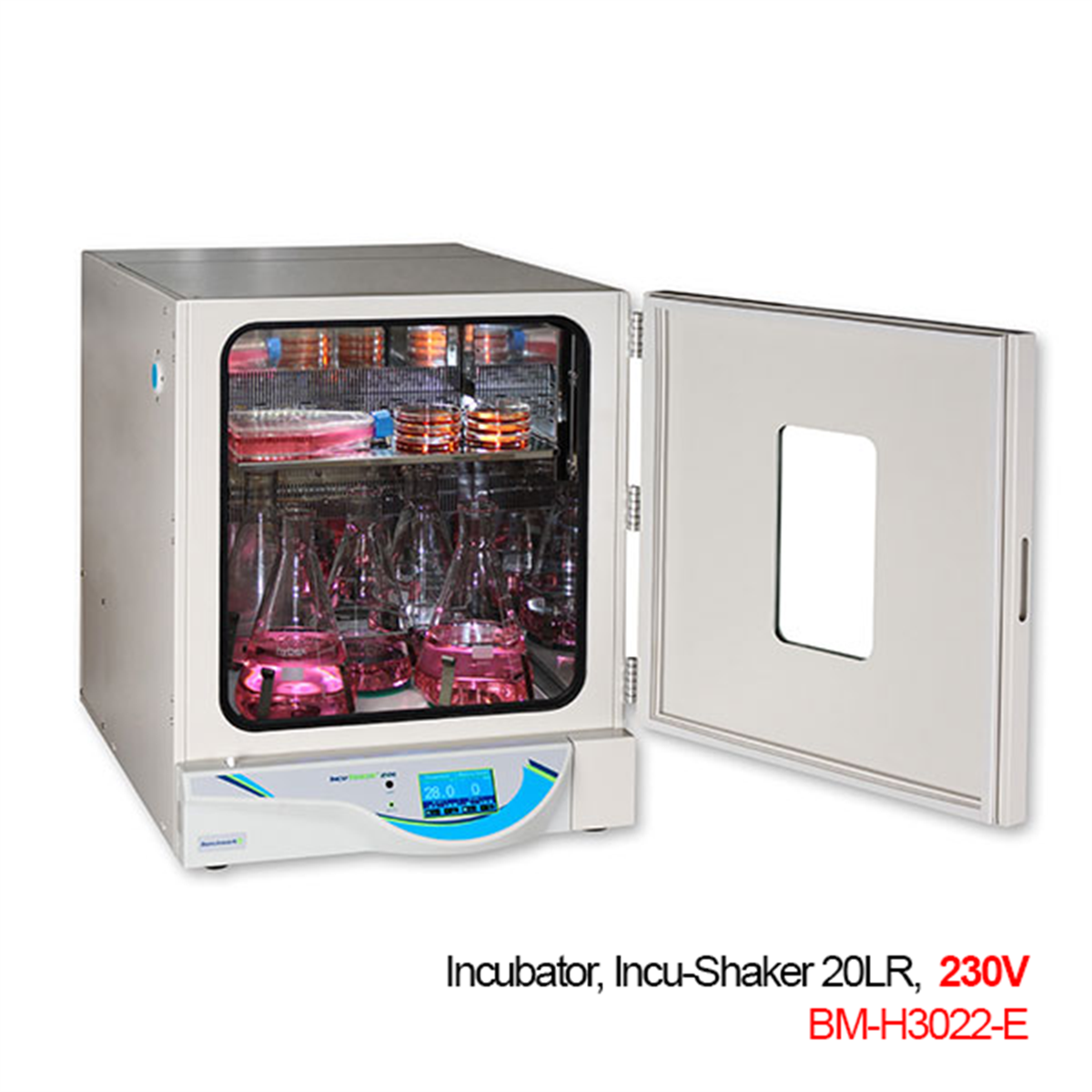

Incu-Shaker 20LR Stackable Shaking Incubator with non-slip rubber mat, 230V

Product#: BM-H3022-E

$12,417.95

Qty:

Availability:

Ships in 24 hours

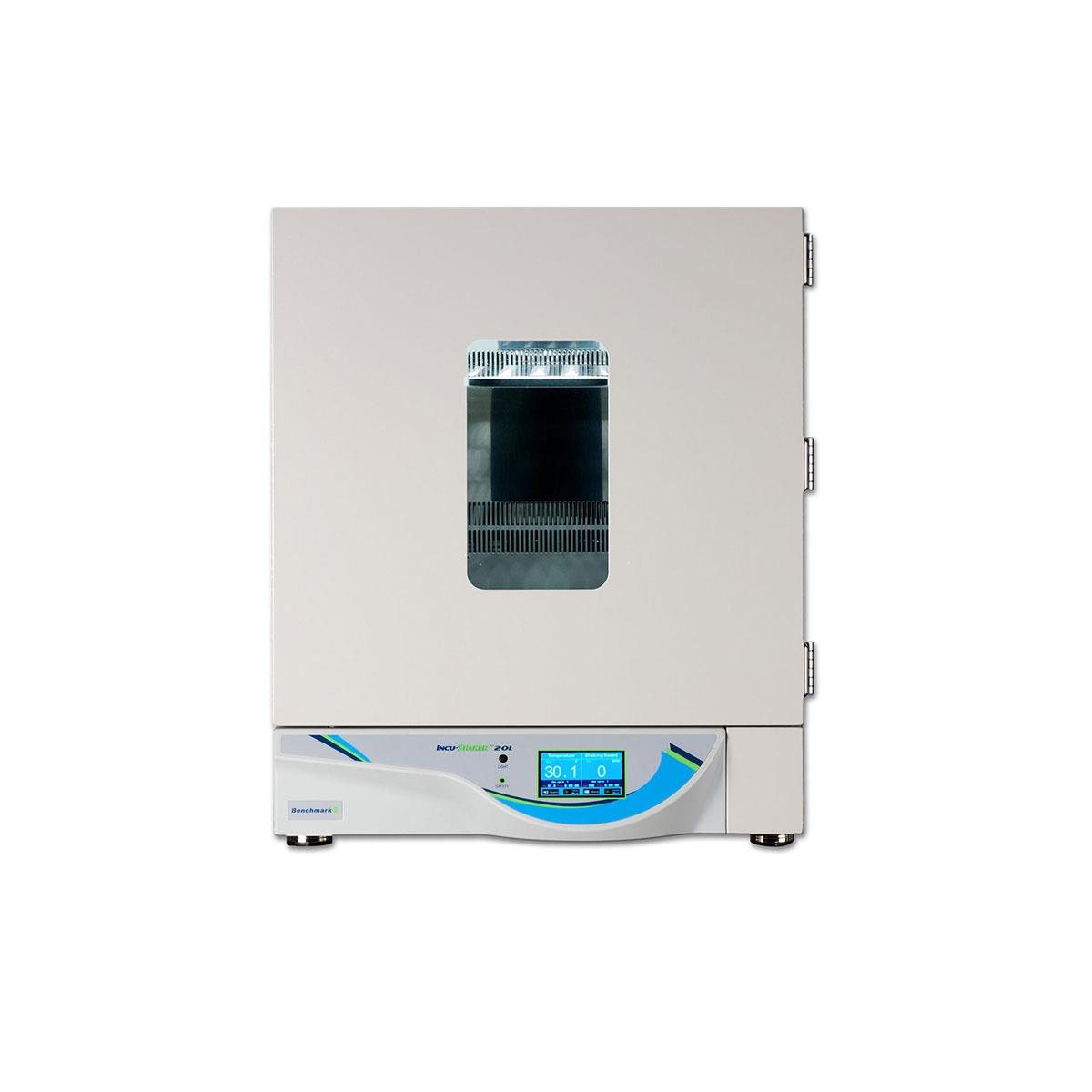

Incu-Shaker 20LR Stackable Shaking Incubator with non-slip rubber mat, 230V

Cat. No.: BM-H3022-E

INCU-SHAKER™ 20LR WITH NON-SLIP RUBBER MAT

Stainless steel chamber provides premier temperature uniformity
Proven reliable, maintenance-free Incu-Shaker™ motor drive system
Bright, intuitive touch-screen controls
Instantly change flask clamps with MAGic Clamp™ accessories
Included pull-out adjustable shelf for static incubations

BM-H3020_INCU-SHAKER_4-features_Diagnocine

Specifications

Speed:	Variable, 30 to 300 rpm
Orbit:	19mm / 3/4 in.
Temp. Range: BM-H3022 \| ( BM-H3020 )	Ambient -20°C (4°C) to 60°C \| ( Ambient +5°C to 60°C )
Temperature Increment:	0.1°C
Temp. Accuracy:	±0.1°C
Temp. Uniformity:	±1.25°C
Speed Increment:	1 rpm
Platform Dimensions:	17.8 x 17.8 in./ 45 x 45 cm
Dimensions: (w x d x h)	20 x 26 x 19 in. / 51 x 65 x 47 cm
Weight:	120 lbs (55kg)
Height	38 in. / 96.5 cm
Timer:	1 min. to 48 hours / continuous
Electrical:	230V. 50-60Hz; 480W ( 115V available: BM-H3022 )
Warranty:	2 Years

Maximum Capacity Chart:

125ml Flasks	250ml Flasks	500ml Flasks	1000ml Flasks	2000ml Flasks	2.8L Fernbach	3000ml Flasks	5000ml Flasks
36	25	16	9	5	5	4	4

MAGic Clamp Platform
BM-H1010-MR with Adjustable
MAGic Clamp (BM-H1000-MR-CMB)

Description:

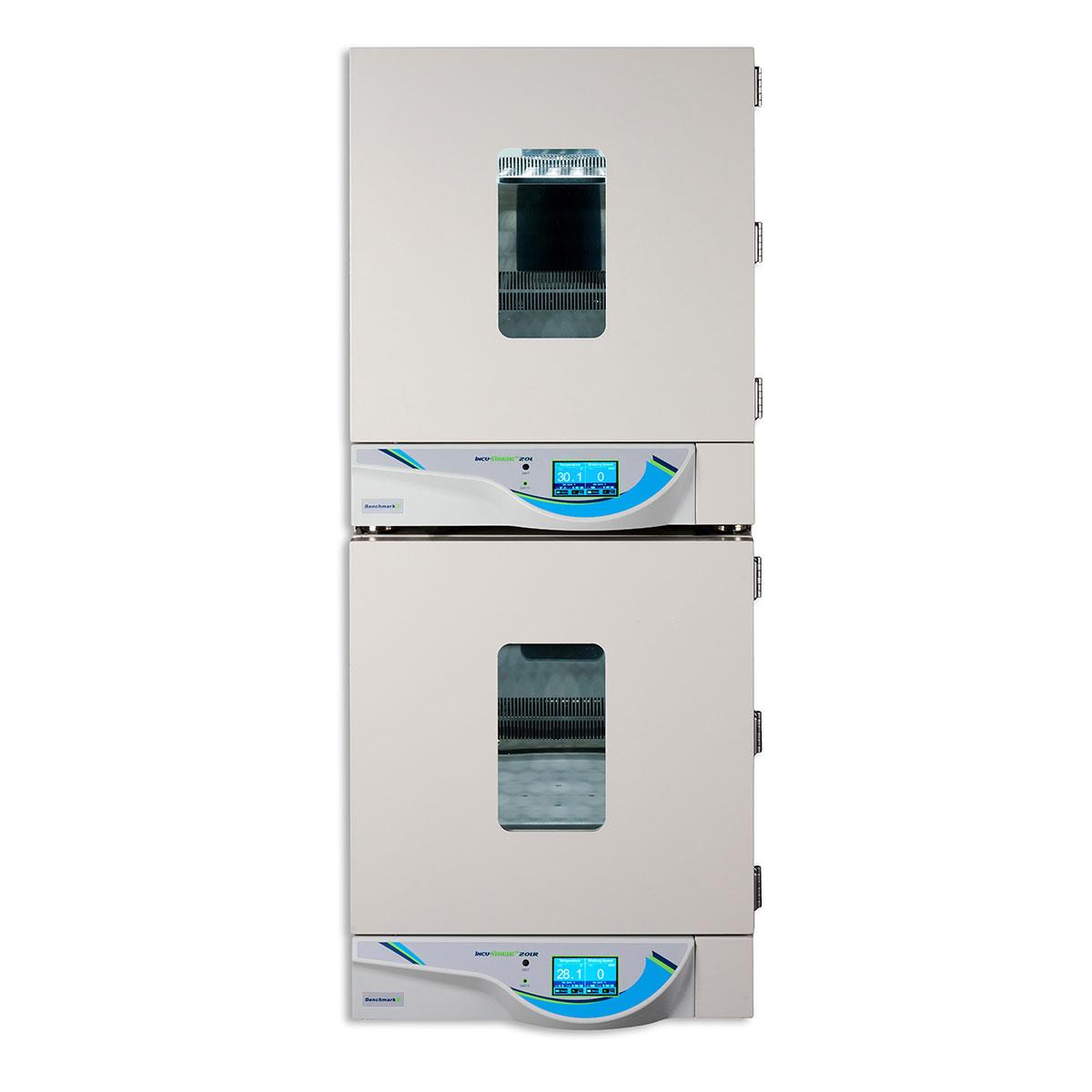

The new Benchmark Incu-Shaker™ 20L and 20LR introduce a high-throughput, space saving shaking incubator system to the Incu-Shaker family. Now with stacking capability of up to 2 units, the Incu-Shaker™ 20 series are highly space-efficient without compromising on reliability or temperature performance.

Thoroughly tested for years of reliable performance, the same proven brushless induction motor drive is featured as in other Incu-Shaker instruments.

The high grade stainless-steel internal chambers provide temperature accuracy within ±0.1°C, and industry-leading uniformity within the chamber of ±0.5°C. The Incu-Shaker™ 20L features temperature control from 5°C above ambient temperatures up to 60°C. The 20LR features a built-in powerful compressor, allowing for cooling down to 4°C, even while the shaker is in use, up to 60°C.

The increased chamber size now allows for up to 4 5-Liter Erlenmeyer flasks to be in use at once. Usable space is maximized by providing adjustable shelving above the shaker platforms, which can be used for the incubation of Petri dishes, cell culture plates, or other smaller vessels.

Even when two stacked units are working, the noise and vibration levels are significantly minimized by the advanced, computer-designed motor isolation system.

The Incu-Shaker™ 20 series features a non-slip rubber mat platform and can be outfitted with Benchmark’s MAGic Clamp™ universal magnetic platform. Magnetic flask attachment accessories can then be used, allowing for easy, toolless addition and removal of flasks from the shaker.

Flask clamps of most sizes, tube racks, and other magnetic vessel holders are available and usable with the Incu-Shaker™ 20L and 20LR. The Incu-Shaker 20L and 20LR are now available for efficient, repeatable growth culture and other applications.

Feature.

The Benchmark Incu-Shaker™ 20L and 20LR Stackable Shaking Incubators offer the highest capacity in the Incu-Shaker line. With a largeshaking platform and a +22 inch chamber height, the 20L series is capable of high-throughput culture growth in flask sizes up to 5/6 liters. These shakers can be stacked (up to two units high), increasing the capacity while maximizing floor-space in the laboratory.

The internal chambers are constructed of high grade stainless-steel (304) and when combined with our proprietary heat distribution technology, the temperature is precisely maintained throughout the chamber. The powerful brushless induction motor drive isdesigned for years of trouble-free service, even under continuous use conditions with heavy loads. Noise and vibration are minimized by an advanced, computer designed motor isolation system that results in minimal vibration at all speed levels.

A convenient access port is included on the left side of both units, allowing for external temperature monitoring, or for power cables torun into the chamber without compromising the integrity of the environment. Additionally, each shaker includes an adjustable shelf that allows for static incubations to be performed simultaneously above the shaking platform.

A standard, rubber mat platform is included and is ideal for use with tissue culture flasks, Petri dishes, staining trays and other flat vessels.The convenient MAGic Clamp™ platform is also available for use with Erlenmeyer flasks and test tube racks. The unique, magnetic attachment method (PATENTED) is the easiest way to instantly change between flask clamps of different sizes.

Ordering Information:

Model	Cat No.	Description
	BM-H1000-MR	MAGic Clamp universal platform for flasks & tube racks (11x9.5in)
	BM-H1000-MR-3000	MAGic Clamp magnetic clamp, 3000mL Erlenmeyer (max. 4)
	BM-H1000-MR-2000	MAGic Clamp magnetic clamp, 2000mL Erlenmeyer (max. 5)
	BM-H1000-MR-1550	MAGic Clamp Tube rack, 30x15mL & 20x50mL tubes (max. 1)
	BM-H1000-MR-1000	MAGic Clamp magnetic clamp, 1000mL Erlenmeyer (max. 4)
	BM_H1000-MR-500	MAGic Clamp magnetic clamp, 500mL Erlenmeyer (max. 6)
	BM-H1000-MR-250	MAGic Clamp magnetic clamp, 250mL Erlenmeyer (max. 8)
	BM-H1000-MR-125	MAGic Clamp magnetic clamp, 125mL Erlenmeyer (max. 12)
	BM-H1000-MR-50	MAGic Clamp magnetic clamp, 50mL Erlenmeyer (max. 20)
	BM-H1000-MR-25	MAGic Clamp magnetic clamp, 25mL Erlenmeyer
	BM-H1000-MR-MP	MAGic Clamp magnetic clamp, one microplate (max. 4)
	BM-H1000-MR-T14	MAGic Clamp tube rack, 72x14mm culture tubes
	BM-H1000-MR-T15	MAGic Clamp tube rack, 32x15mL, tubes (max. 2)
	BM-H1000-MR-T50	MAGic Clamp tube rack, 15x50mL, tubes (max. 2)
	BM-H1000-MR-T600	MAGic Clamp tube rack, 4x500mL or 600mL conical bottles (max. 1)
	BM-H1000-MR-T15H	MAGic Clamp tube rack, 12 x 1.5/2.0mL tubes, horizontal
	BM-H1000-MR-T150H	MAGic Clamp tube rack, 4 x 15mL tubes, horizontal
	BM-H1000-MR-T500H	MAGic Clamp tube rack, 2 x 50mL tubes, horizontal
	BM-H1000-MR-TSR	MAGic Clamp tilted holder for 15mL and 50mL tube racks (max. 2)
	BM-H1000-MR-CMB	MAGic Clamp COMBO, for 125mL, 250mL, 500mL flasks
	BM-H1010-MR	MAGic Clamp universal platform for flasks and tube racks (18x18")
	BM-BT3000-MR	MAGic Clamp universal platform (LG) for flasks and tube racks, 14 x 12"
	BM-BT4010-MR	MAGic Clamp universal platform for flasks and tube racks (16x16.5")

Ordering Information -Flasks

MTC-F4060-F	125 ml Erlenmeyer flask, PETG, flat base, disposable, 24/case
MTC-F4061-F	250 ml Erlenmeyer flask, PETG, flat base, disposable, 12/case
MTC-F4062-F	500 ml Erlenmeyer flask, PETG, flat base, disposable, 12/case
MTC-F4063-F	1000 ml Erlenmeyer flask, PETG, flat base, disposable, 6/case
MTC-F4060-B	125 ml Erlenmeyer flask, PC, baffled base, autoclavable/reusable, 24/case
MTC-F4061-B	250 ml Erlenmeyer flask, PC, baffled base, autoclavable/reusable, 12/case
MTC-F4062-B	500 ml Erlenmeyer flask, PC, baffled base, autoclavable/reusable, 12/case
MTC-F4063-B	1000 ml Erlenmeyer flask, PC, baffled base, autoclavable/reusable, 6/case
MTC-F4086	2.8L Jumbo Fernbach flask, styrene/butadiene, baffled base, 6/case
MTC-F4087	5L Jumbo Fernbach flask, styrene/butadiene, baffled base, 4/case
MTC-F4067	Cap for 125mL and 250mL Erlenmeyer Flasks, includes filter, 10/pack
MTC-F4068	Cap for 500mL and 1000mL Erlenmeyer Flasks, includes filter, 10/pack
MTC-F4069	Cap for 2.8 and 5.0L Jumbo Flasks, includes filter, 10/pack

Additional Fixed Platforms

Model	Cat No.	Description
	BM-H1000-P-500	Dedicated Platform, 5 x 500mL Erlenmeyer flasks
	BM-H1000-P-250	Dedicated Platform, 8 x 250mL Erlenmeyer flasks
	BM-H1000-P-125	Dedicated Platform, 12 x 125mL Erlenmeyer flasks
	BM-H1000-P-MP	Dedicated Platform, holds 4 standard micro plates (max. 1)
	BM-H1000-P-SP	Universal Spring Platform

Compatible Products

Incu-Shakers
Model	Cat No.	Description	Link
	BM-H1001-M	INCU-SHAKER Mini Shaking Incubator
	BM-H2010	INCU-SHAKER 10L Shaking Incubator
	BM-H2012	INCU-SHAKER 10LR Refrigerated Shaking Incubator
	BM-H3501	INCU-SHAKER Mini CO2 Shaking Incubator
	BM-H3020	Incu-Shaker 20L Stackable Shaking Incubator with non-slip rubber mat, 115V/ 220V
	BM-H3022	Incu-Shaker 20LR Stackable Shaking Incubator with non-slip rubber mat, 115V/ 220V

Orbital Shakers
Model	Cat No.	Description	Link
	BM-BT1011	Orbi-Shaker XL (Orbital Shaker)
	BM-BT4500	Orbi-Shaker CO2 for Microplates (Orbital Shaker)
	BM-BT1502	Orbi-Shaker MP (MicroPlate Orbital Shaker)
	BM-BT4001	Orbi-Shaker CO2 (Orbital Shaker)
	BM-BT4011	Orbi-Shaker CO2 XL (Orbital Shaker)
	BM-BT30	Orbi-Blotter (Orbital Shaker, low speed)
	BM-BT302	Orbi-Shaker Jr (Orbital Shaker)
	BM-BT3001	Orbi-Shaker (Orbital Shaker)
