Hermle Z496-K Ultra High Volume Floor Standing Centrifuge (230V ONLY) (EU Plug)
Z496-K Ultra High Capacity Floor Standing Centrifuge
Cat No: BM-Z496-K
- ULTRA HIGH CAPACITY, (4 x 1000ml, 98 x 15ml or 40 x 50ml)
- Accepts 500ml or 750ml blood bags
- Two models
- Floor-standing, with storage drawer
- Underbench (27.5″ height for use under the bench)
Description
The Z496-K centrifuges offer the highest tube/bottle capacity in our line.
Several rotors are available, including a popular 4 position swinging bucket rotor with a wide offering of accessories for the centrifugation of tubes, bottles, plates and blood bags. The high capacity rectangular buckets accept microplates directly or a variety of tube inserts for accomodating as many as 40 x 50ml conical or 96 x 15ml conical tubes per run.
Advanced microprocessor controls allow for instant rotor identification,
which automatically converts the rotational speed to the relevant g-force (rcf), preventing the user from setting a speed above the capabilities of the installed rotor. In addition to retrieving up to 99 saved programs, the easy to use front panel can adjust accel/decel rates, time, and convert operation between rpm and rcf. The powerful refrigeration system, with a range of -20° to 40° C, also features a precool function that ensures the temperature of the chamber is optimized for any application.

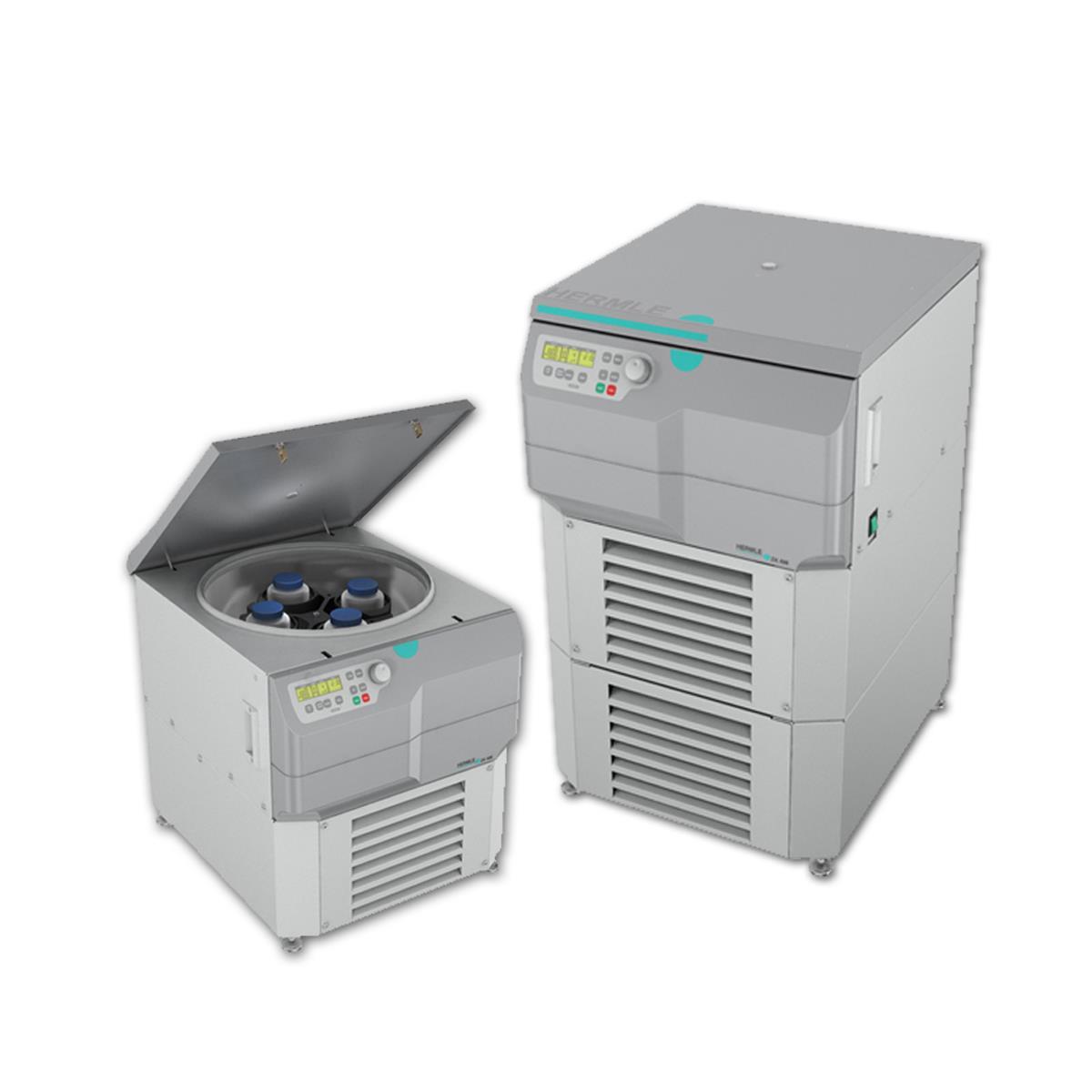

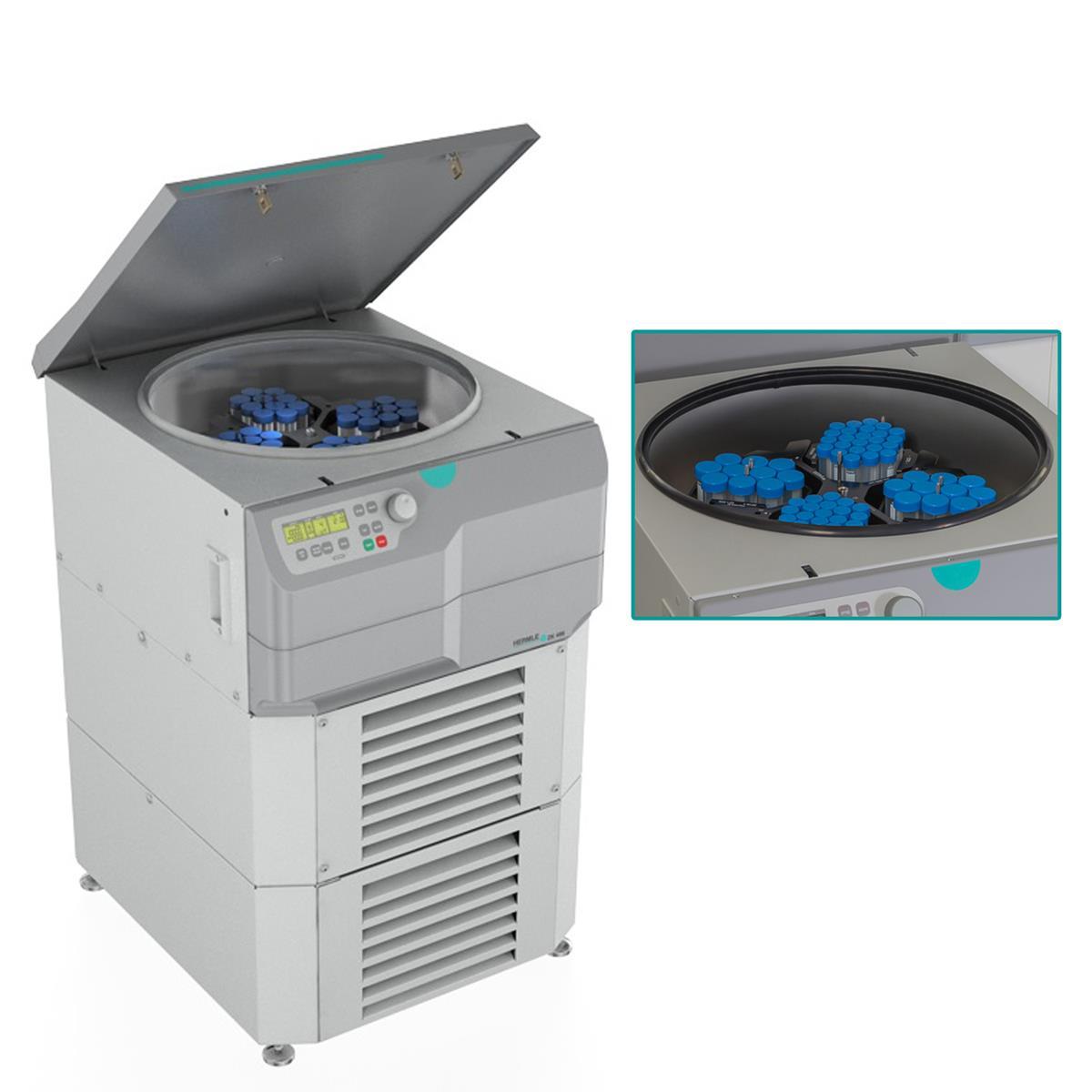

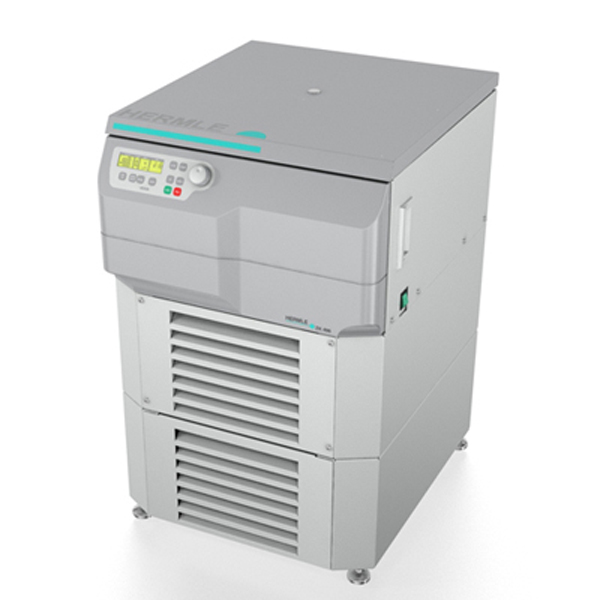

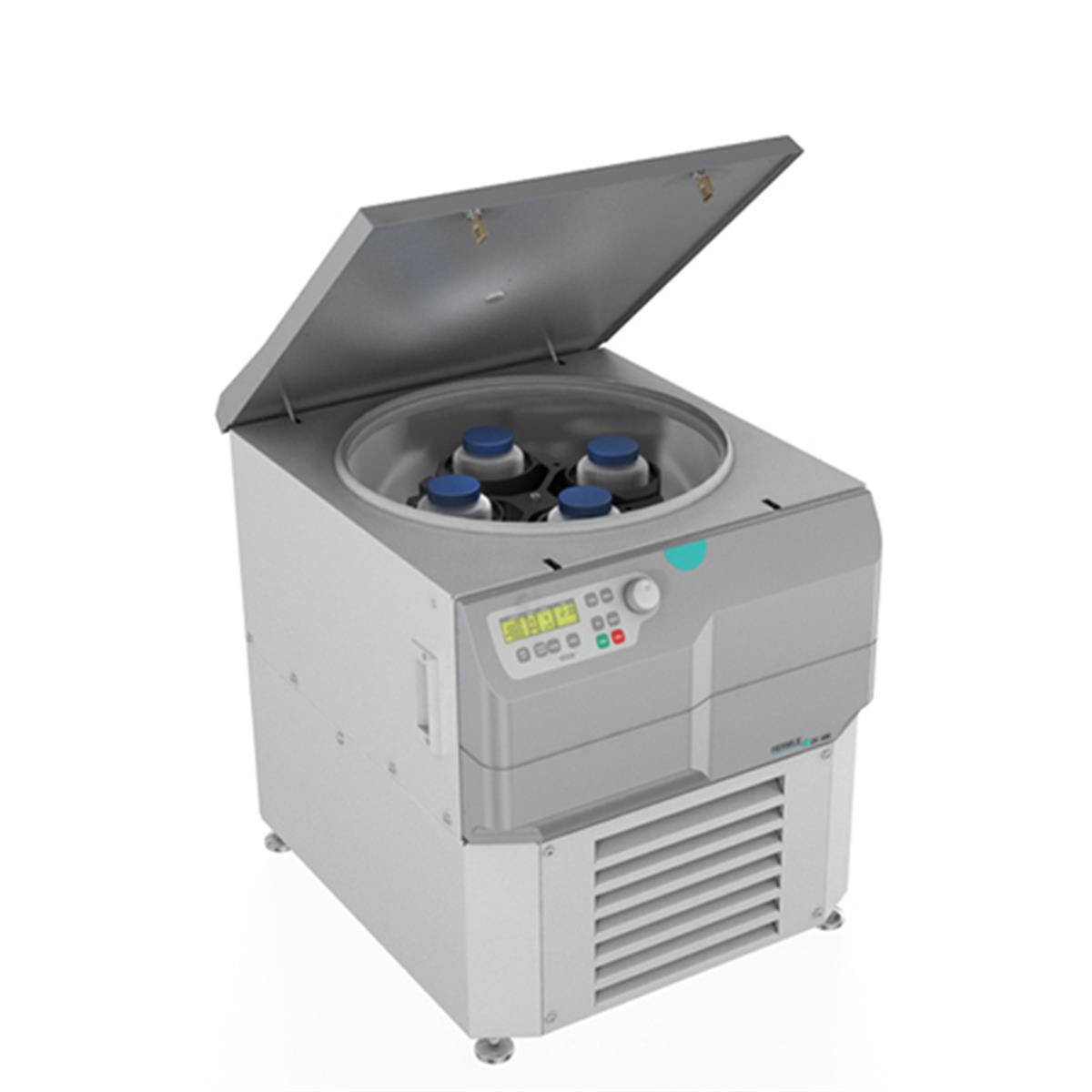

A standard floor standing model is available (height: 38.6 in.) which includes a convenient lower drawer for te storage of frequently used rotors and accessories. In addition, a space saving “underbench” model (height: 27.5 in.) is available when under the counter storage is preferred. Both models are equipped with wheels for easy maneuverability around the laboratory.
For all your high capacity, high volume needs, the Z496-K floor standing series is the perfect centrifuge.
Specifications
| Speed Range | 10,500 rpm |
| Max. RCF | 16,022 xg |
| Max. Capacity | 4 x 1000ml |
| Temp. Range | -20° to 40°C |
| Dimensions | Underbench 24 x 27 x 27.5 in. (62 x 69 x 70 cm.) Floor Standing 24 x 27 x 38.6 in. (62 x 69 x 98 cm.) |
| Timer | up to 99 hr, 59min and continuous |
| Weight | Underbench - 346lbs / 157kg Floor Standing - 419lbs / 190kg |
| Electrical | 230V, 50-60 Hz |
| Power (Watts) | 2300 W |
Order Information
| Model | Cat No. | Description |
 |
BM-Z496-K | Z496-K High Volume Floor Standing Centrifuge (230V ONLY) |
 |

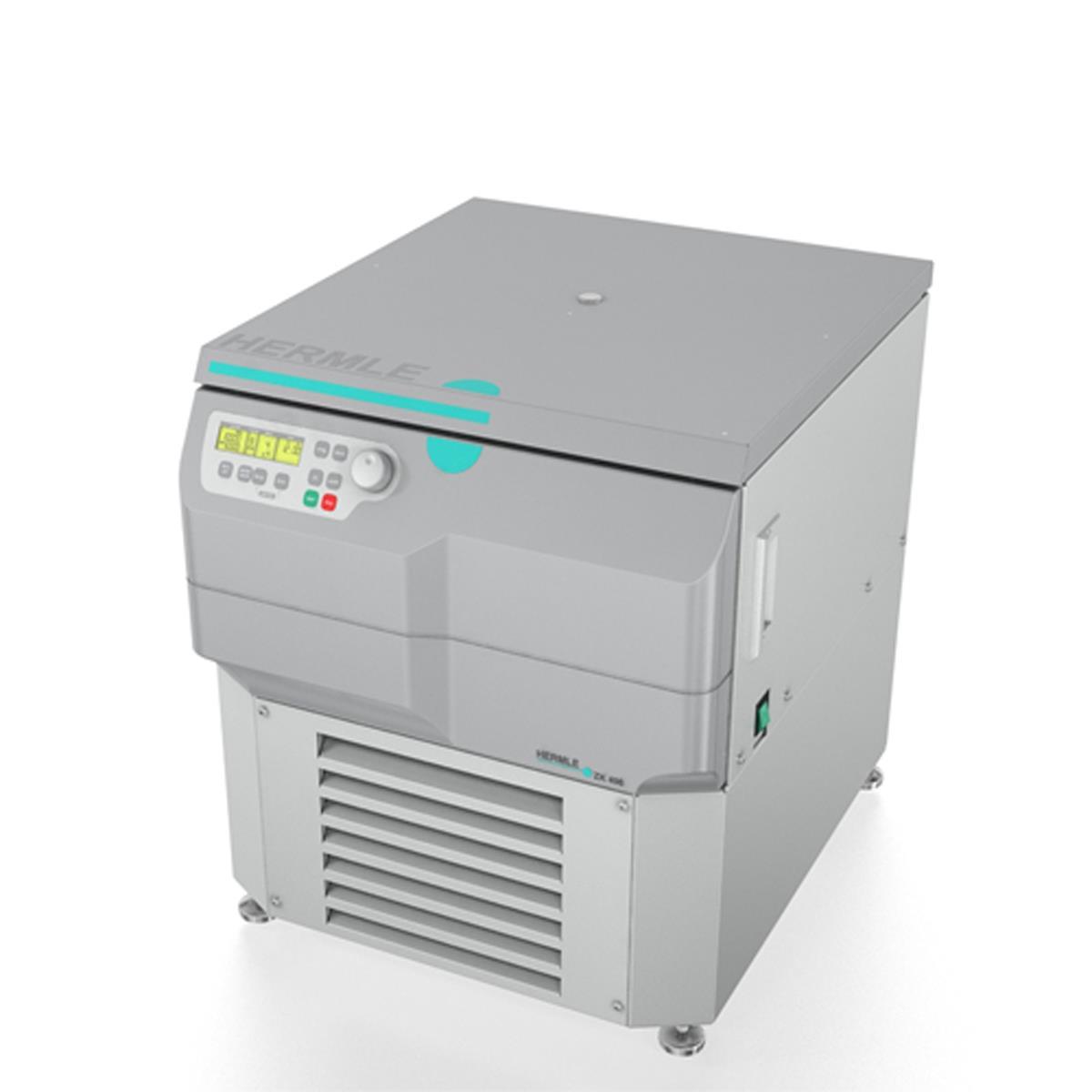

BM-Z496-K-UC | Z496-K High Volume Underbench Centrifuge (230V ONLY) |
 |

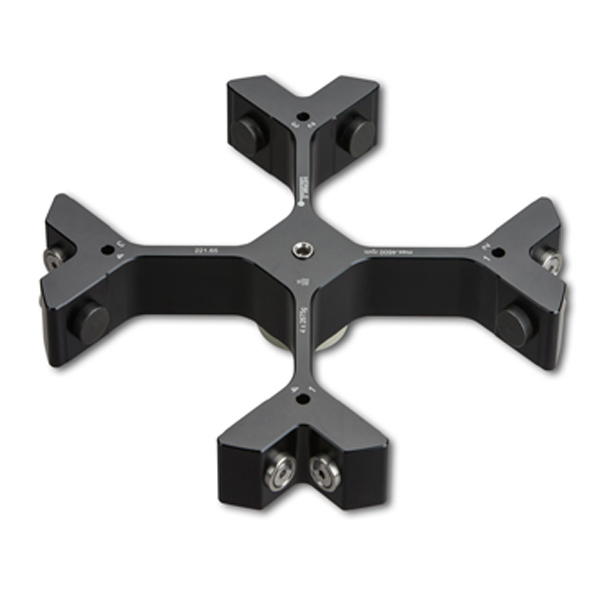

BM-Z496-1000-AC | 4 x 1000mL Swing out rotor without buckets for Z496-K |
 |
BM-Z496-1000-RBUK | Rectangular bucket for Z496-1000-AC, 2/pk |
 |

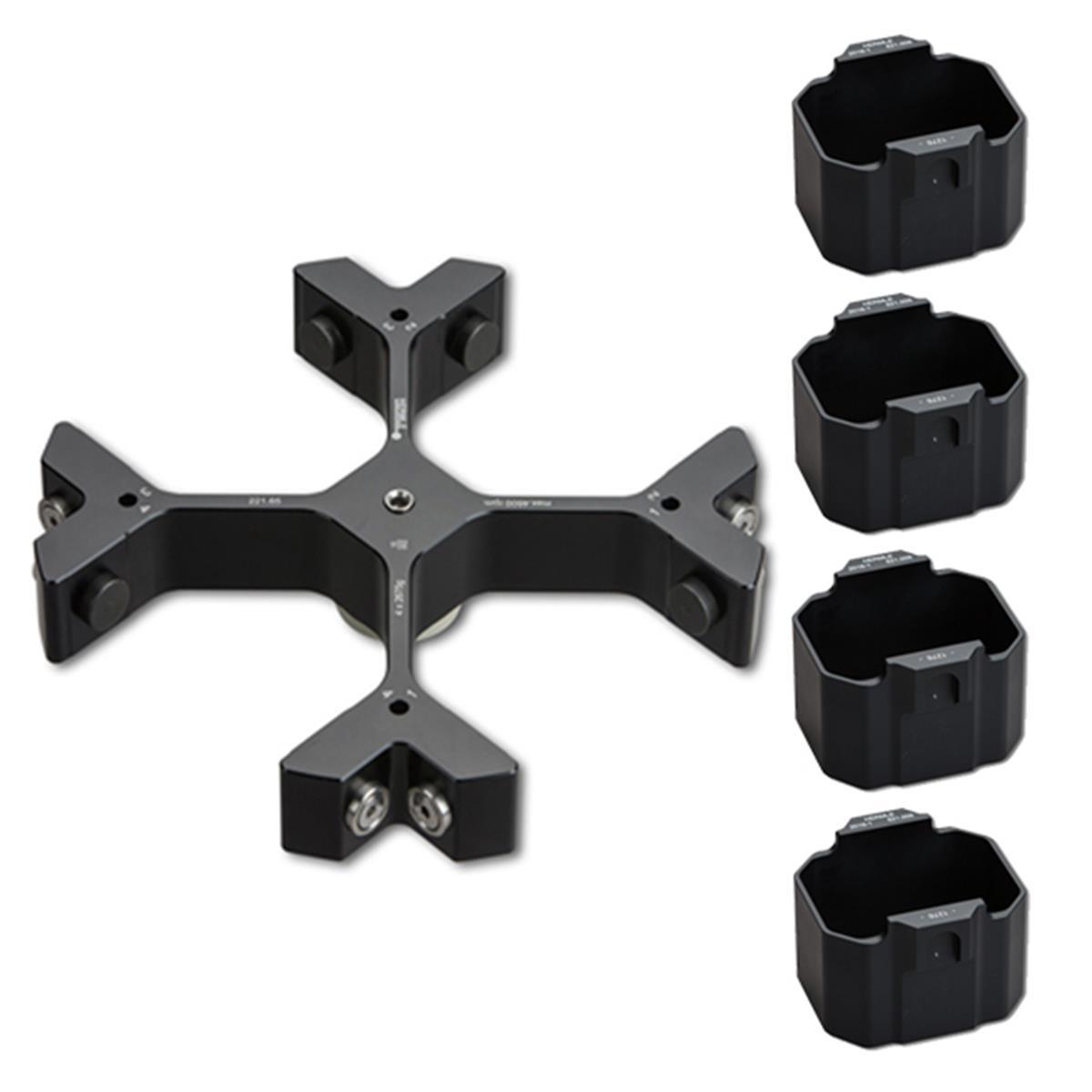

BM-Z496-1000 | 4 x 1000mL swing out rotor with rectangular buckets |
| BM-Z496-1000-A500 | 500mL insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A500C | 500mL conical insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A250 | 2 x 250mL insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A225 | 225mL conical insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A100 | 3 x 100mL insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A50 | 10 x 50mL conical insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A50R | 10 x 50mL round bottom insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A15 | 24 x 15mL conical insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A5F | 24 x 5mL conical insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A10 | 31 x 10mL insert for Z496-1000-RBUK, 2/pk | |
| BM-Z496-1000-A57 | 46 x 5-7mL insert for Z496-1000-RBUK, 2/pk | |
 |

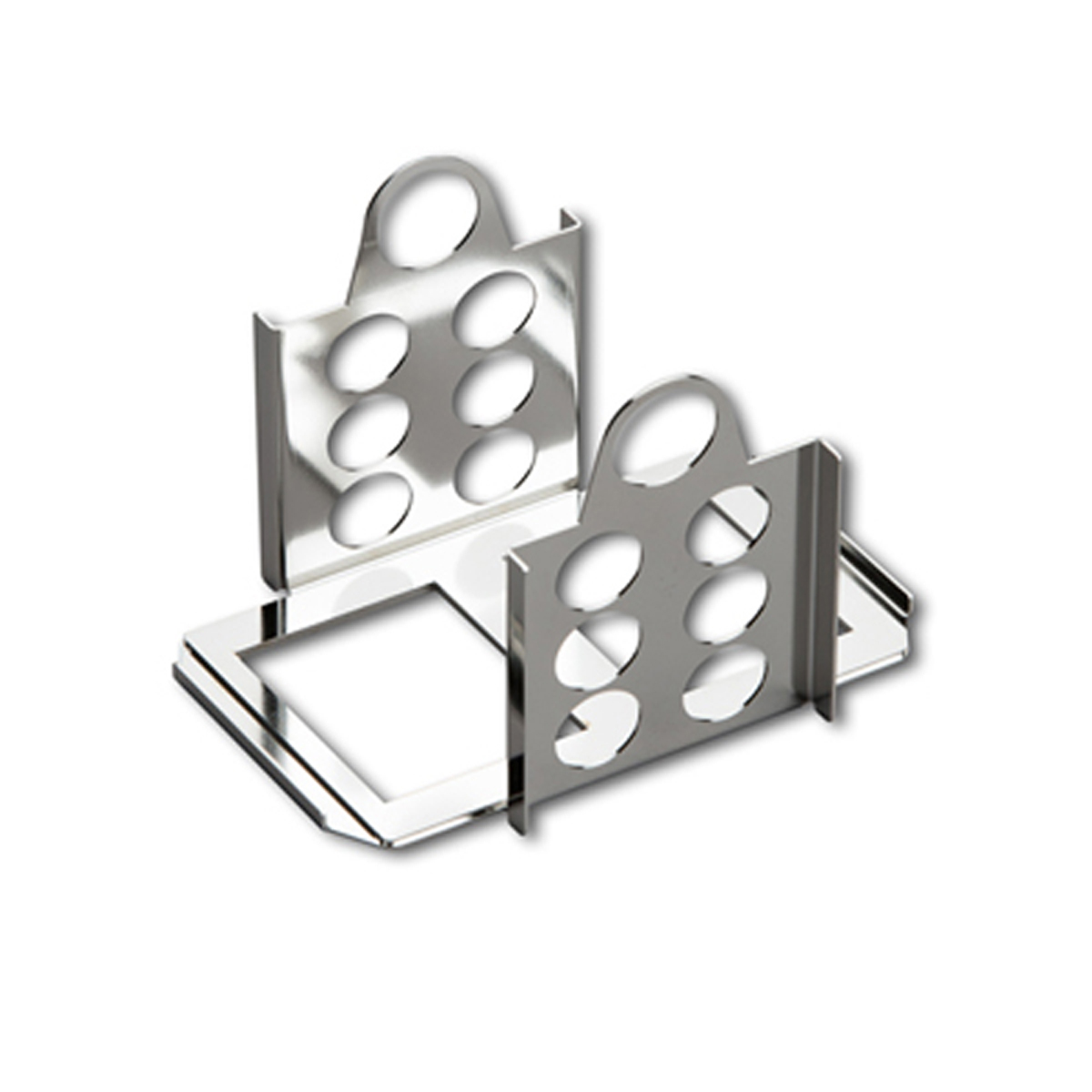

BM-Z496-1000-MPRA | Microplate removing aid for Z496-1000-RBUK, 2/pk |
 |

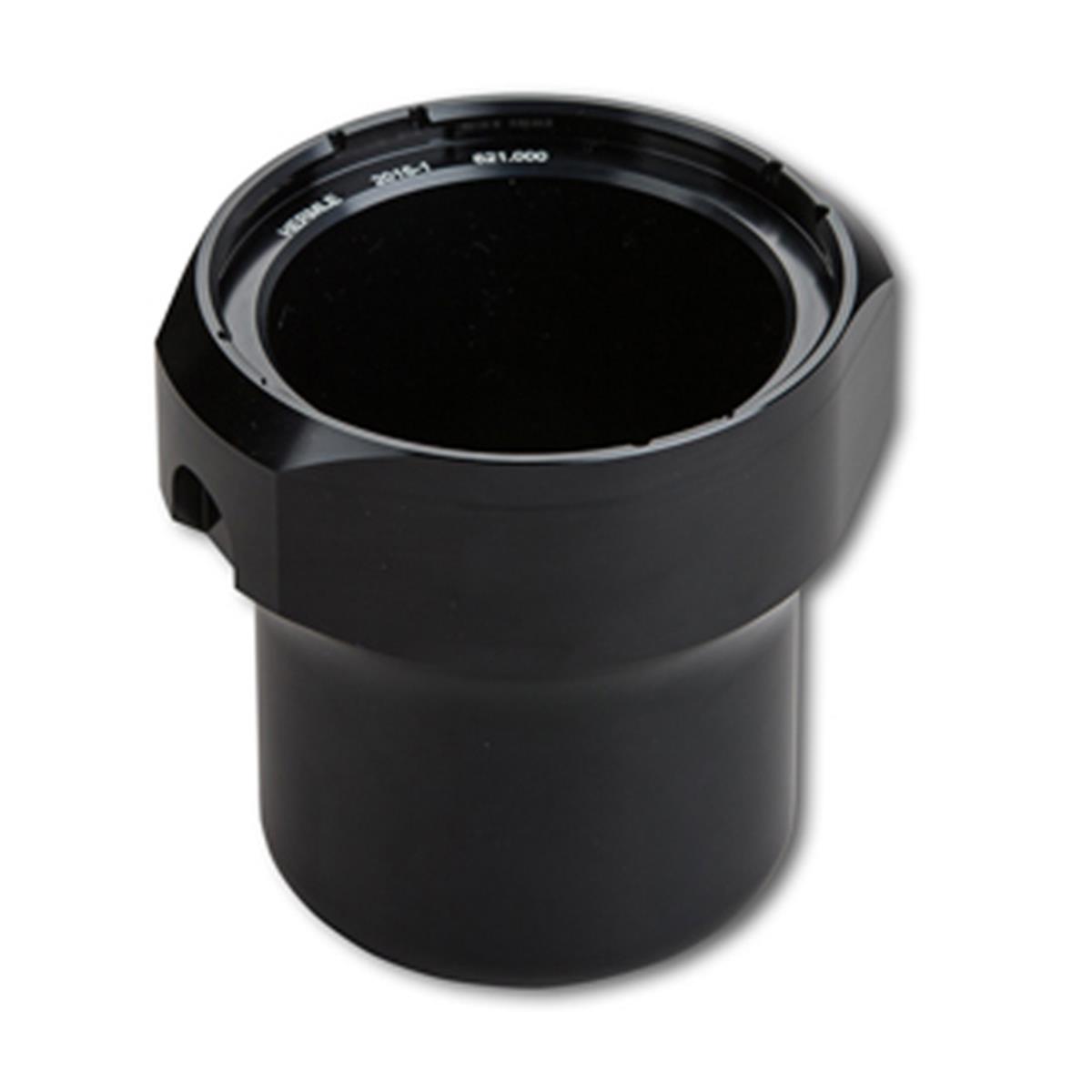

BM-Z496-1000-1L | 1000mL round bucket for Z496-1000-RBUK, 2/pk |
 |

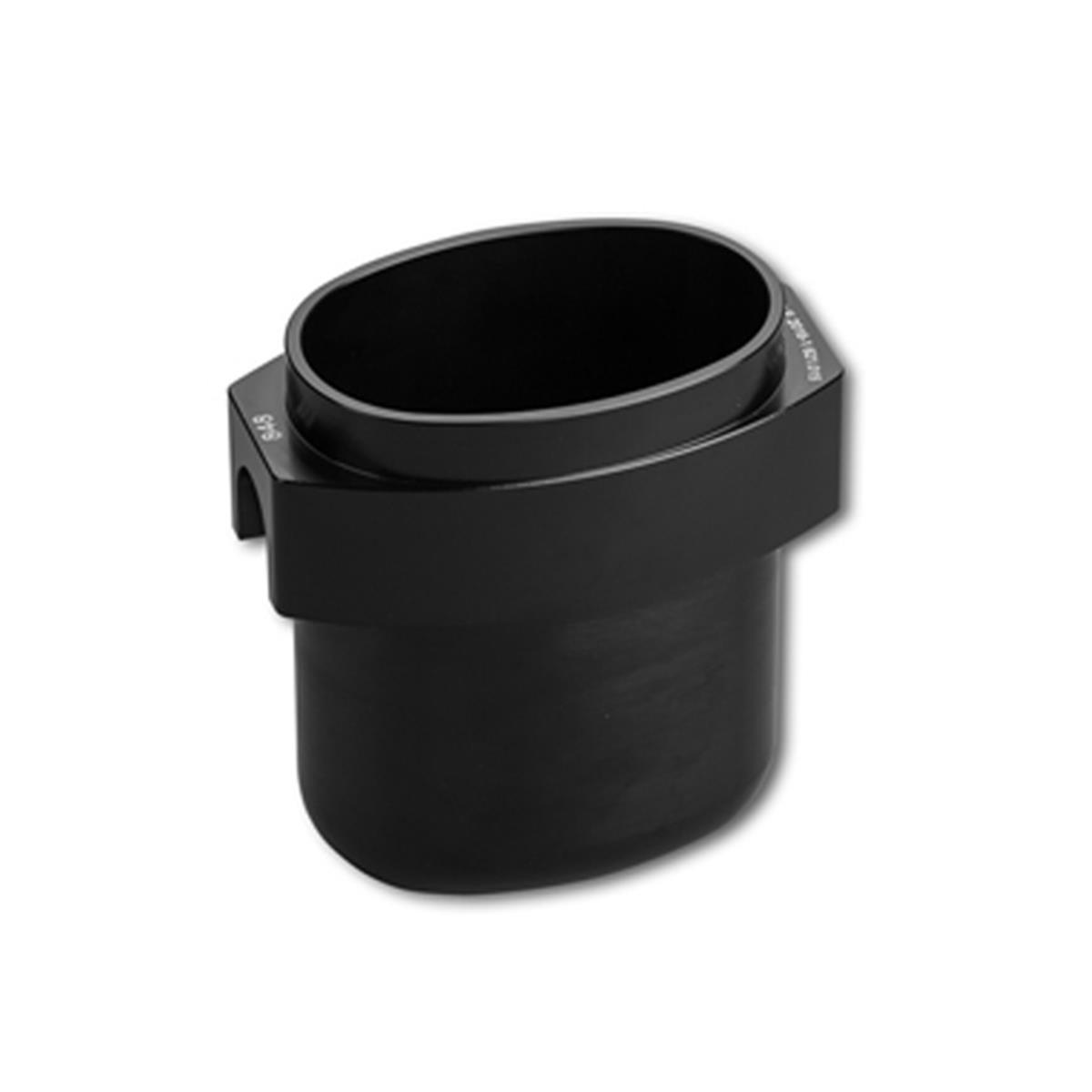

BM-Z496-500-BLD | 500mL blood bag buckets for Z496-1000-RBUK, 2/pk |
| BM-Z496-500-ADP | Loading adapter for Z496-1000-RBUK, 2/pk | |
 |

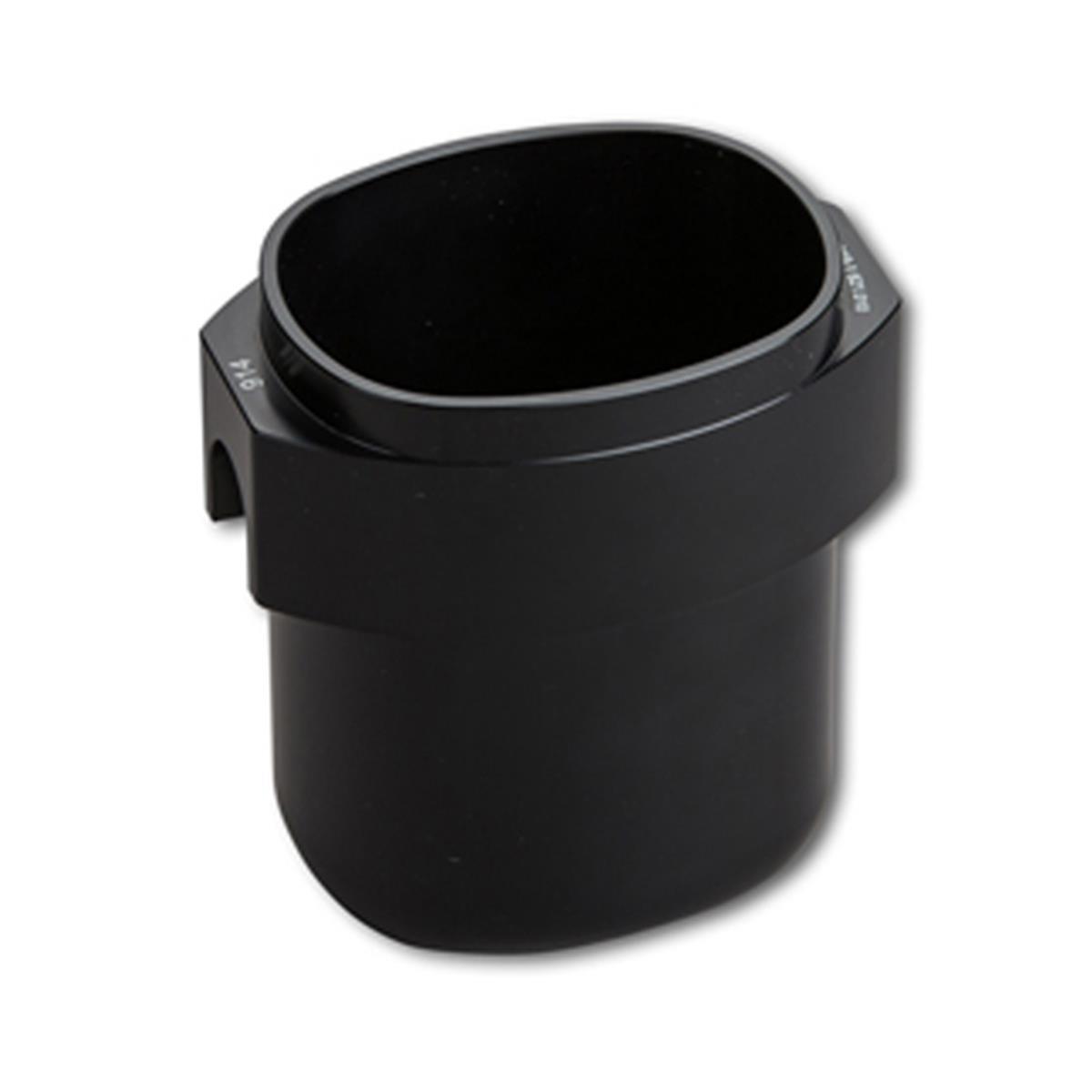

BM-Z496-750-BLD | 750mL blood bag buckets for Z496-1000-RBUK, 2/pk |
| BM-Z496-750-ADP | Loading adapter for Z496-1000-RBUK, 2/pk |
