CopyPlate 96-1/2 for petri dish

CopyPlate 96-1/2 for petri dish

Cat. No. FNK-TK-CP96-1/2
Size 1 piece

Description

Replicator for 48 well Microplates
Copy cells, DNA etc. at once　
Also used for dot blotting and cell culture

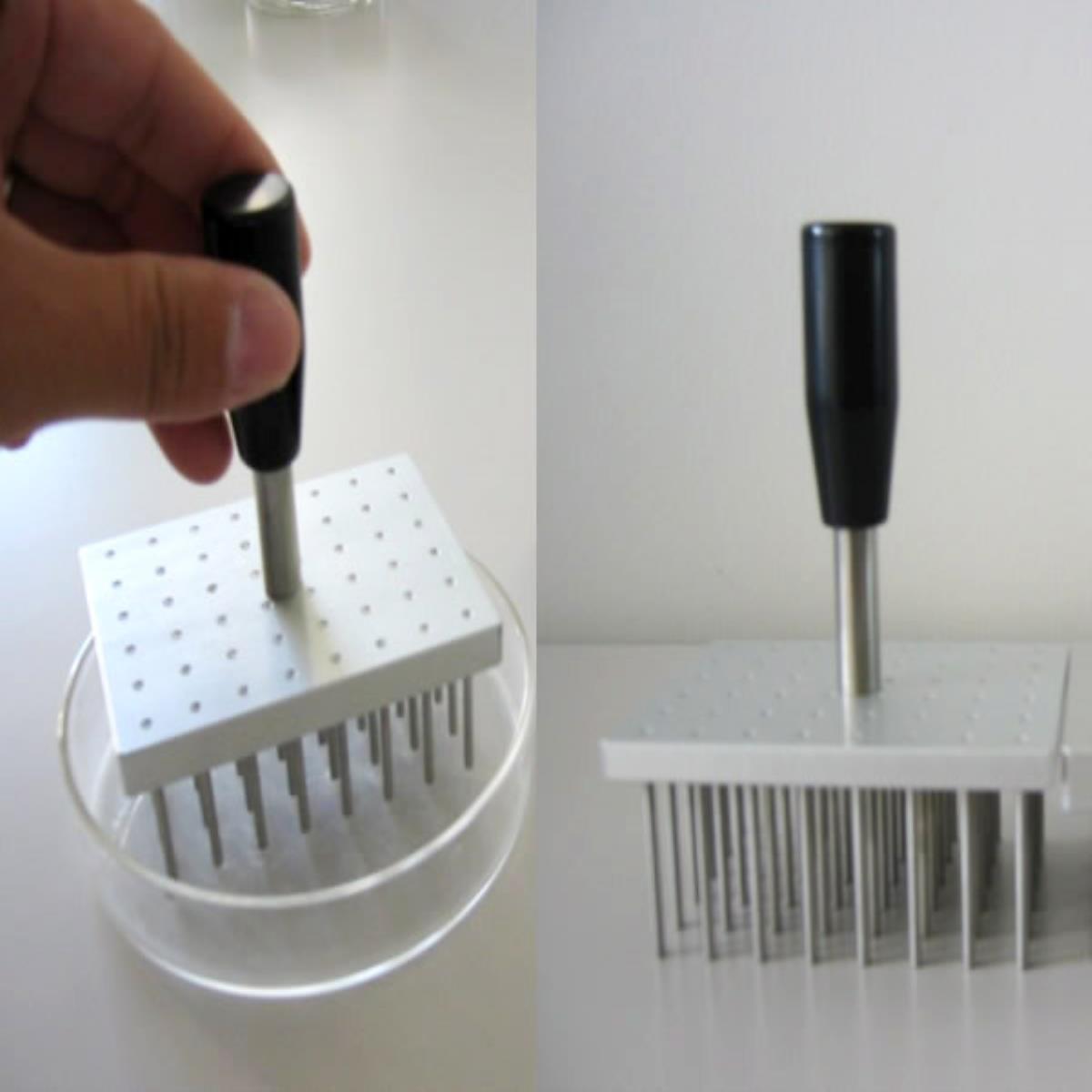

This copy apparatus for microplates with stainless steel pins can copy all wells at one time.
This product is for research. It can not be used except for research use.

This device is a copy device for microplates with stainless steel pins, which can copy all the wells at one time, and because it is made of metal, it can be used repeatedly while performing sterilization.
Because heat resistance is sufficient, heat sterilization is also possible.
Also, by using a dedicated stand, it is possible to make copying / especially copying between plates etc / more easily.
The length of each pin to be copied is as long as 5 cm, so it can be used with a deep cell for PCR or with a burner for sterilization, which is very convenient.

This device for PCR such as plasmid and cosmid is a copy device for microplates with aligned stainless steel pins. It is possible to copy all the wells at one time, and since it is made of metal, it can be used repeatedly while performing sterilization. Because heat resistance is sufficient, heat sterilization is also possible.

Also, by using a dedicated stand, it is possible to make copying / especially copying between plates etc / more easily. Because the copy plate is stationary and the microplate is moved horizontally, there is no need to lose it while moving the drug solution attached to the pins. The length of each pin to be copied is as long as 5 cm, so it can be used with a deep cell for PCR or with a burner for sterilization, which is very convenient.

We released one for 96 wells and another for 384 wells. The copy stand is compatible and can be used equally well. We also offer 48-pin copy plates for 96 wells. In order to increase the adhesion amount to the copy pin, we also do special processing of the pin tip.

Use

• Copy of cultured cells from microplates
• Copy of plasmid, cosmid, DNA etc. (Can also be used for PCR)
• Dot blotting from microplates

Special processing of pin tip is also available.

Features

• Due to the long length of the pins used for copying, it can be used in deep well plates or heat sterilized with a burner.
• You can easily copy (especially copying between plates) by using a dedicated stand (sold separately: # TK-CPST ) (not available with Copy Plate 48).
• There is a conversion adapter (# TK-CP96-384 ) to copy between the 96 well plate and the 384 well plate, which is sold separately .
