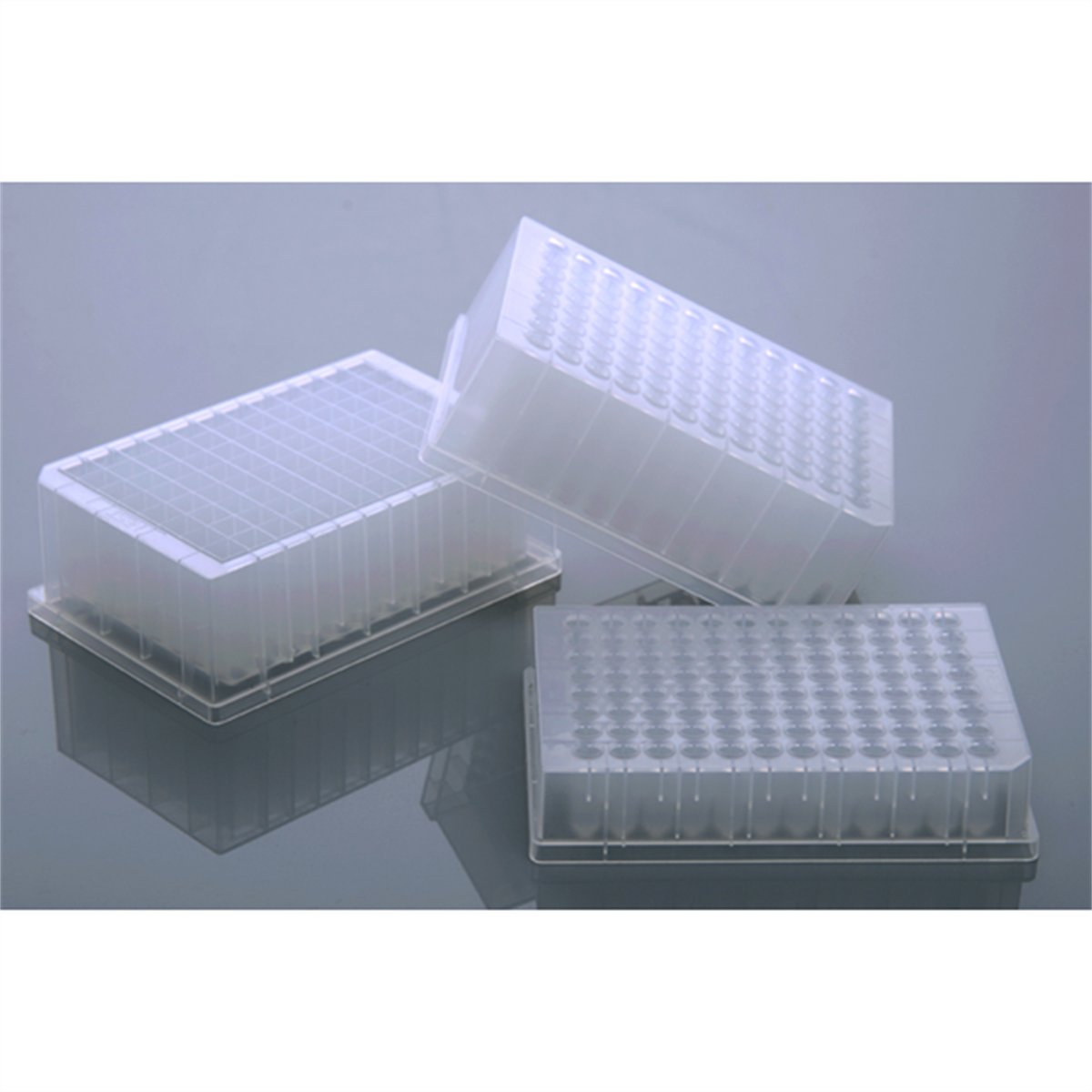

96-Well Deep Well Plates
Product#: 96-WellDeepWellPlates
$0.00
Select 96-WellDeepWellPlates
- see table below
Availability:
Ships in 24 hours
96-Well Deep Well Plates
Cat. No. List below
A. NEST® 96-Deep Well Plates
| Cat No. | Type | Description | Sterile / Non-Sterile | Volume | Quantity | Link |
| NST-501162 | U-Bottom | Round Well | Sterile | 0.4 ml | 10/pk, 50/cs |  |
| NST-502162 | 1.0 ml | 5/pk, 50/cs | |
|||
| NST-507101 | 1.3 ml | 5/pk, 50/cs | |
|||
| NST-503162 | 2.0 ml | 5/pk, 50/cs | |
|||
| NST-501102 | Non-sterile | 0.4 ml | 10/pk, 50/cs | |
||
| NST-502102 | 1.0 ml | 5/pk, 50/cs | |
|||
| NST-507001 | 1.3 ml | 5/pk, 50/cs | |
|||
| NST-503102 | 2.0 ml | 5/pk, 50/cs | |
|||
| NST-501062 | Square Well | Sterile | 1.0 ml | 5/pk, 50/cs | |
|
| NST-502062 | 1.6 ml | 5/pk, 50/cs | |
|||
| NST-503062 | 2.2 ml | 5/pk, 50/cs | |
|||
| NST-501002 | Non-sterile | 1.0 ml | 5/pk, 50/cs | |
||
| NST-502002 | 1.6 ml | 5/pk, 50/cs | |
|||
| NST-503002 | 2.2 ml | 5/pk, 50/cs | |
|||
| NST-503761 | Square Well, I-Shaped | Sterile | 2.2 ml | 5/pk, 50/cs | |
|
| NST-503711 | Square Well, I-Shaped | Non-sterile | 5/pk, 50/cs | |
||
| NST-500621 | V-Conical | Square Well | Sterile | 0.5 ml | 5/pk, 50/cs | |
| NST-503621 | 2.2 ml | 5/pk, 50/cs | |
|||
| NST-500021 | Non-sterile | 0.5 ml | 5/pk, 50/cs | |
||
| NST-503021 | 2.2 ml | 5/pk, 50/cs | |
|||
| NST-500161 | V-Bottom | Round Well | Sterile | 0.36 ml | 5/pk, 50/cs | |
| NST-501601 | 0.5 ml | 10/pk, 50/cs | |
|||
| NST-502601 | 1.3 ml | 5/pk, 50/cs | |
|||
| NST-500101 | Non-sterile | 0.36 ml | 5/pk, 50/cs | |
||
| NST-501101 | 0.5 ml | 10/pk, 50/cs | |
|||
| NST-502101 | 1.3 ml | 5/pk, 50/cs | |
|||
| NST-503001 | V-Bottom | Square Well | Non-sterile | 2.2 ml | 5/pk, 50/cs | |
Description
- USP grade VI Polypropylene material; High chemical stability; Autoclaved by high temperature; For multi-channel pipette and automatic equipment
- Conical bottom design to minimize the residual volume
- Clear alphanumeric codes for identification
- Conform to SBS/ ANSI
- Stackable, reliable tight sealing
- Non-pryogenic, DNase/RNase free
- Both E-beam sterilized and non-sterilized deep well plates are available
Material
-USP VI Polypropylene material
Features
- High chemical stability;
- Temperature range: -80°C to 120°C
- Autoclavable
- Centrifugal strength up to 3000g
- Compatible with multi-channel pipette and automatic equipment
- Optimized bottom design to minimize residual volume
- Clear alphanumeric codes for easy identification
- Conform to SBS/ ANSI
- Stackable, reliable tight sealing
- Non-pryogenic, DNase/RNase free
- Both E-beam sterilized and non-sterilized deep well plates are available
B. OptiWell™ 96-Deep Well Plates
| Cat No. | Type | Description | Sterile/Non Sterile | Height | Volume | Quantity | Link |
| MTC-D3096-03S | U-Bottom | Round Well | Sterile | 14.75mm | 0.4mL | 10/pk, 100/cs | |
| MTC-D3096-11S | 14.5mm | 0.5mL | 10/pk, 100/cs | |
|||
| MTC-D3096-15S | 33.0mm | 1.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-21S | 27.0mm | 1.1mL | 5/pk, 50/cs | |
|||
| MTC-D3096-27S (For Nunc) |
31.5mm | 1.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-35S (For Nunc) |
44.3mm | 2.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-37S (For Hamilton) |
44.3mm | 2.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-03 | Non-Sterile | 14.75mm | 0.4mL | 10/pk, 100/cs | |
||
| MTC-D3096-11 | 14.5mm | 0.5mL | 10/pk, 100/cs | |
|||
| MTC-D3096-15 | 33.0mm | 1.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-21 | 27.0mm | 1.1mL | 5/pk, 50/cs | |
|||
| MTC-D3096-27 (For Nunc) |
31.5mm | 1.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-35 (For Nunc) |
44.3mm | 2.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-37 (For Hamilton) |
44.3mm | 2.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-13S | Square Well | Sterile | 24.4mm | 1.0mL | 10/pk, 100/cs | |
|
| MTC-D3096-25S | 24.0mm | 1.2mL | 5/pk. 50/cs | |
|||
| MTC-D3096-31S | 31.6mm | 1.6mL | 5/pk, 50/cs | |
|||
| MTC-D3096-41S | 41.6mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-43S (H-style) |
41.9mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-13 | Non-Sterile | 24.4mm | 1.0mL | 10/pk, 100/cs | |
||
| MTC-D3096-25 | 24.0mm | 1.2mL | 5/pk. 50/cs | |
|||
| MTC-D3096-31 | 31.6mm | 1.6mL | 5/pk, 50/cs | |
|||
| MTC-D3096-41 | 41.6mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-43 (H-style) |
41.9mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-01S | V-Bottom | Round Well | Sterile | 14.75mm | 0.36mL | 10/pk, 100/cs | |
| MTC-D3096-07S | 14.5mm | 0.45mL | 10/pk, 100/cs | |
|||
| MTC-D3096-17S | 33.0mm | 1.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-23S | 27.0mm | 1.1mL | 5/pk, 50/cs | |
|||
| MTC-D3096-01 | Non-Sterile | 14.75mm | 0.36mL | 10/pk, 100/cs | |
||
| MTC-D3096-07 | 14.5mm | 0.45mL | 10/pk, 100/cs | |
|||
| MTC-D3096-17 | 33.0mm | 1.0mL | 5/pk, 50/cs | |
|||
| MTC-D3096-23 | 27.0mm | 1.1mL | 5/pk, 50/cs | |
|||
| MTC-D3096-09S | Square Well | Sterile | 15.1mm | 0.5mL | 5/pk, 50/cs | |
|
| MTC-D3096-19S (For Kingfisher and Accuris IsoPURE) |
24.44mm | 1mL | 10/pk, 100/cs | |
|||
| MTC-D3096-33S | 31.6mm | 1.6mL | 5/pk, 50/cs | |
|||
| MTC-D3096-39S (For Kingfisher and Accuris IsoPURE) |
44.2mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-45S | 41.7mm | 2.3mL | 5/pk, 50/cs | |
|||
| MTC-D3096-KFC (Plate and Comb Combo Pack) (For Kingfisher and Accuris IsoPURE) |
44.2mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-09 | Non-Sterile | 15.1mm | 0.5mL | 5/pk, 50/cs | |
||
| MTC-D3096-19 (For Kingfisher and Accuris IsoPURE) |
24.44mm | 1mL | 10/pk, 100/cs | |
|||
| MTC-D3096-33 | 31.6mm | 1.6mL | 5/pk, 50/cs | |
|||
| MTC-D3096-39 | 44.2mm | 2.2mL | 5/pk, 50/cs | |
|||
| MTC-D3096-45 | 41.7mm | 2.3mL | 5/pk, 50/cs | |
|||
| MTC-D3096-05S | F-Bottom | Round Well | Sterile | 14.75mm | 0.4mL | 10/pk, 100/cs | |
| MTC-D3096-29S | 42.5mm | 1.2mL | 10/pk, 100/cs | |
|||
| MTC-D3096-05 | 14.75mm | 0.4mL | 5/pk, 50/cs | |
|||
| MTC-D3096-29 | 42.5mm | 1.2mL | 5/pk, 50/cs | |
Available in over 25 different types, The OptiWell™ line of Deep Well Plates is compatible with all popular automated research platforms and robotic equipment. These plates are useful for bacterial cultures, centrifugation (4000xg max RCF) and general sample storage. They can be used with silicone sealing mats and various types of sealing film. All plates are produced in a class 100,000 cleanroom facility and are ANSI / SLAS 1-2004 compliant. Although all OptiWell™ plates are autoclavable, several types are also available presterilized by gamma irradiation in accordance with ISO 13485. All plates are certified RNase/DNase free and non-pyrogenic.
Features
- 96-Well – 24-well, 48-well, and 384-well configurations available
- For automated research platforms / robotic equipment
- Minimal binding / liquid retention
- Black printed alpha-numerics
- Virgin, medical-grade polypropylene
- Choose from U (round), V (conical), F (flat) bottoms
C. Benchmark 96-Deep Well Plates
| Cat No. | Type | Description | Sterile/Non-Sterile | Volume | Quantity | Link |
| BM-AP1096-DWP | / | Square Well | Sterile | 50µL to 1000µL | Pack of 50 | |
| BM-IPD1196-MP | / | Square Well, Polyethylene Toughened | 2.0 ml | 1/pc | |
|
| BM-IPD1196-CM | / | Square Well, EVA Cap Mat | 2.0 ml | 1/pc | |
Description:
Accuris offers high-quality deep well plates and magnetic tip combs designed to fit the IsoPure™ 96. Produced using virgin polypropylene and packaged in a sterile facility, these consumables are guaranteed to be contaminant-free. The IsoPure™ 96 also accepts industry-standard 96 deep well plates and tip combs designed for high throughput purification systems.
Specifications:| Capacity / sample volume | 96 samples / 50µL to 1000µL |
| Display | 7.0 inch-color touch screen |
| Plate positions | 8 Plate positions |
| Lysis temperature range | Ambient +5°C to 120°C |
| Elution temperature range | Ambient +5°C to 120°C |
| Mixing speed | Variable, 10 levels |
| Programming control | Touch screen/mouse or PC connection |
| Program memory | 100 programs (internal memory) |
| Communication ports | USB, LAN, & PC |
| Magnetic bead recovery rate | >95% |
| Internal lighting | LED |
| Contamination control | UV lamp (3W, 253.7nm UVC wavelength) |
| Dimensions | 21.6 x 24.4 x 18.9 in. (55 x 62 x 48 cm) |
| Weight | 54 kg / 119 lbs |
| Electrical input | Universal 120 to 240VAC |
| Warranty | 2 years |
